Installation Procedure

  1. Install the rear seat belt buckle assembly to the vehicle.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

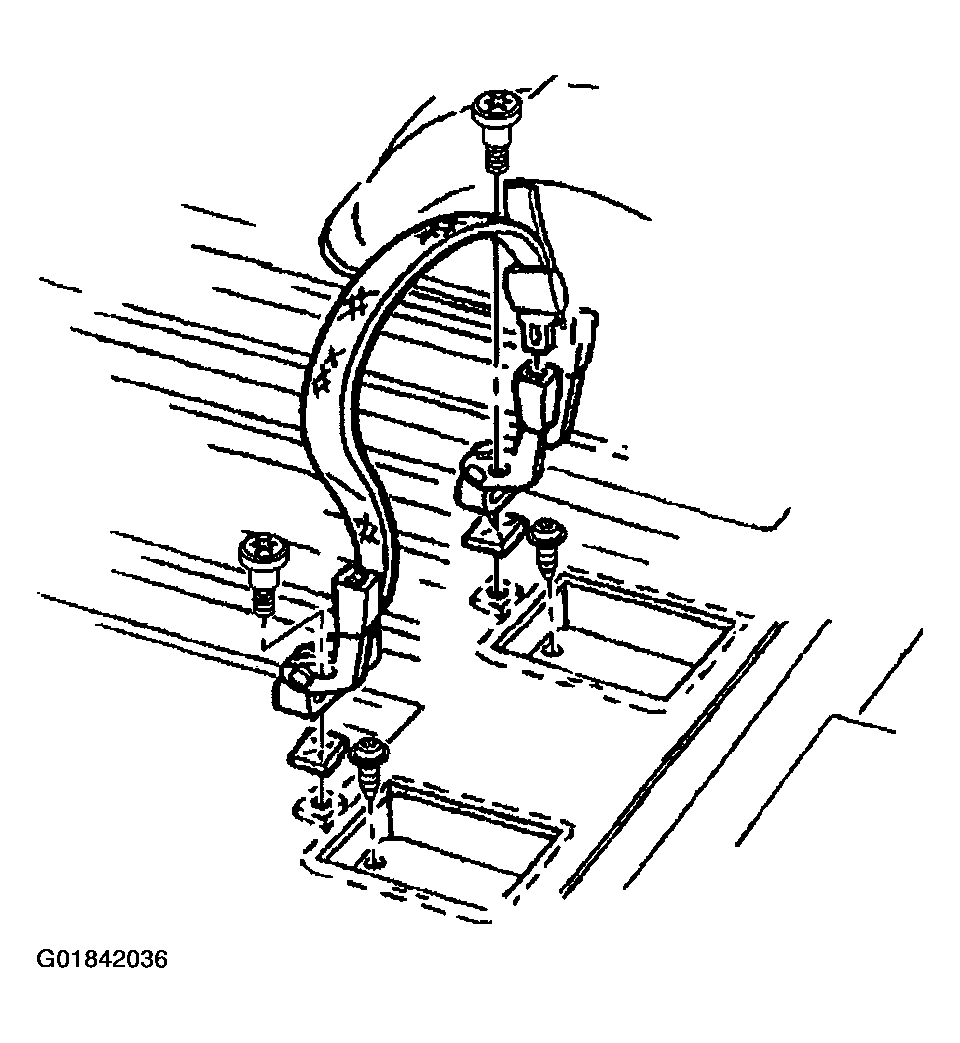

    2. Fig 1: Rear Seat Belt Buckle Assembly
    G01842036Courtesy of GENERAL MOTORS CORP.
  2. Install the rear seat belt buckle assembly retaining nuts.

    Tighten

    Tighten the rear seat belt buckle assembly retaining nuts to 42 N.m (31 lb ft).
