Removal Procedure

  1. Fold the jump seat, seat back down to access the seat belt buckle.
  2. Remove the jump seat, seat belt buckle retaining bolt.
  3. Remove the jump seat, seat belt buckle.

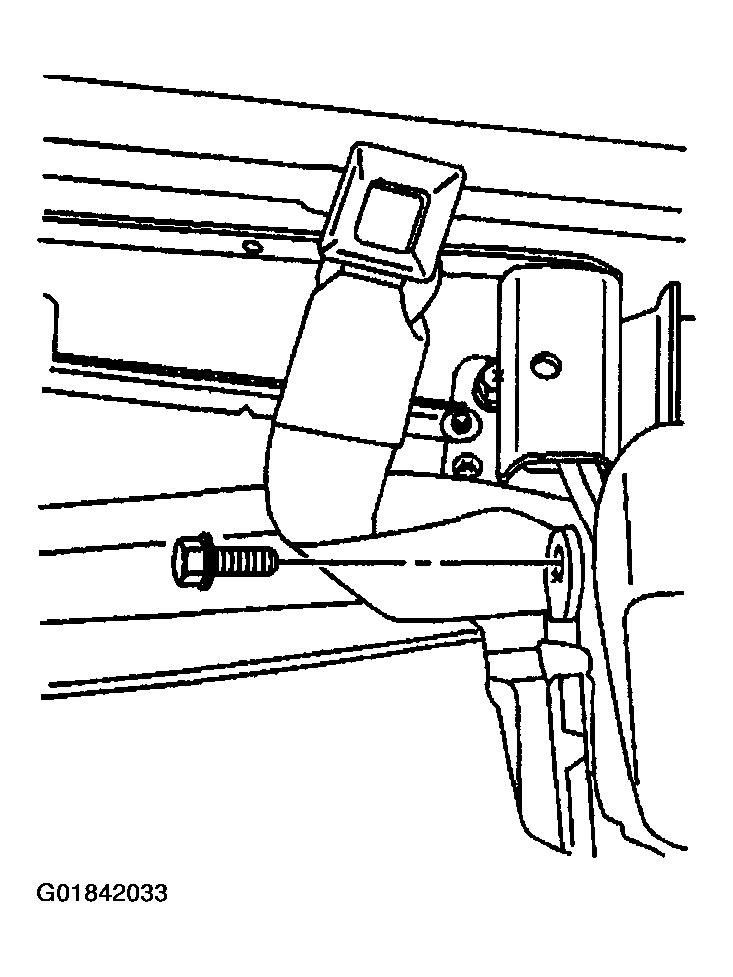

    4. Fig 1: Jump Seat, Seat Belt Buckle
    G01842033Courtesy of GENERAL MOTORS CORP.
