Removal Procedure

  1. Disconnect the driver-side seat belt buckle electrical connector.

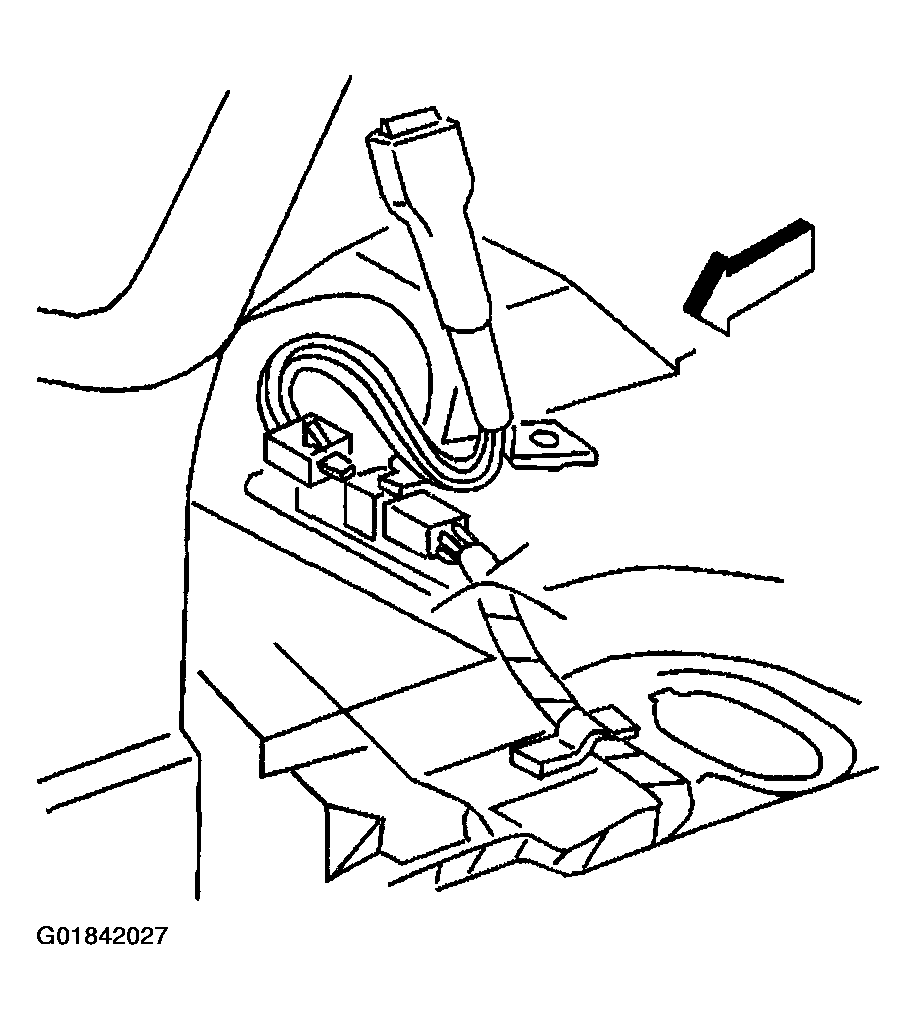

    2. Fig 1: Driver-Side Seat Belt Buckle Electrical Connector
    G01842027Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolt that retains the driver-side seat belt buckle or buckles to the seat.
  3. Remove the driver-side seat belt buckle or buckles from the seat.

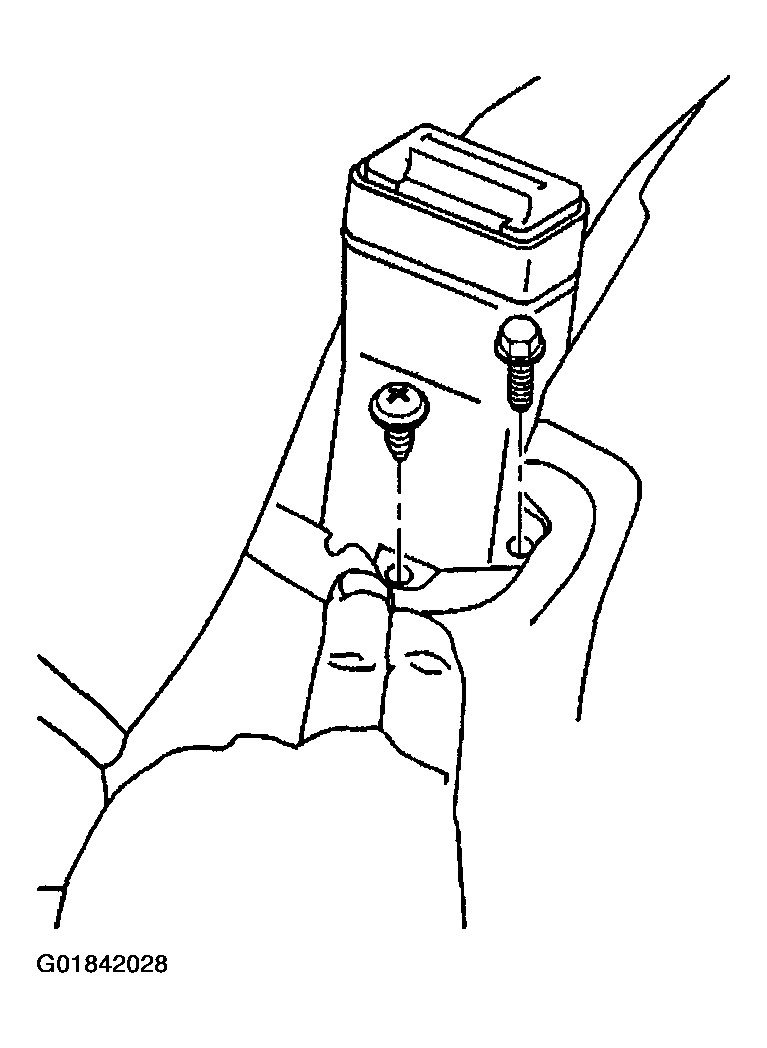

    4. Fig 2: Driver-Side Seat Belt Buckle
    G01842028Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolt that retains the passenger-side seat belt buckle or buckle and belt assembly to the seat.
  5. Remove the passenger-side seat belt buckle or buckle and belt assembly from the seat.

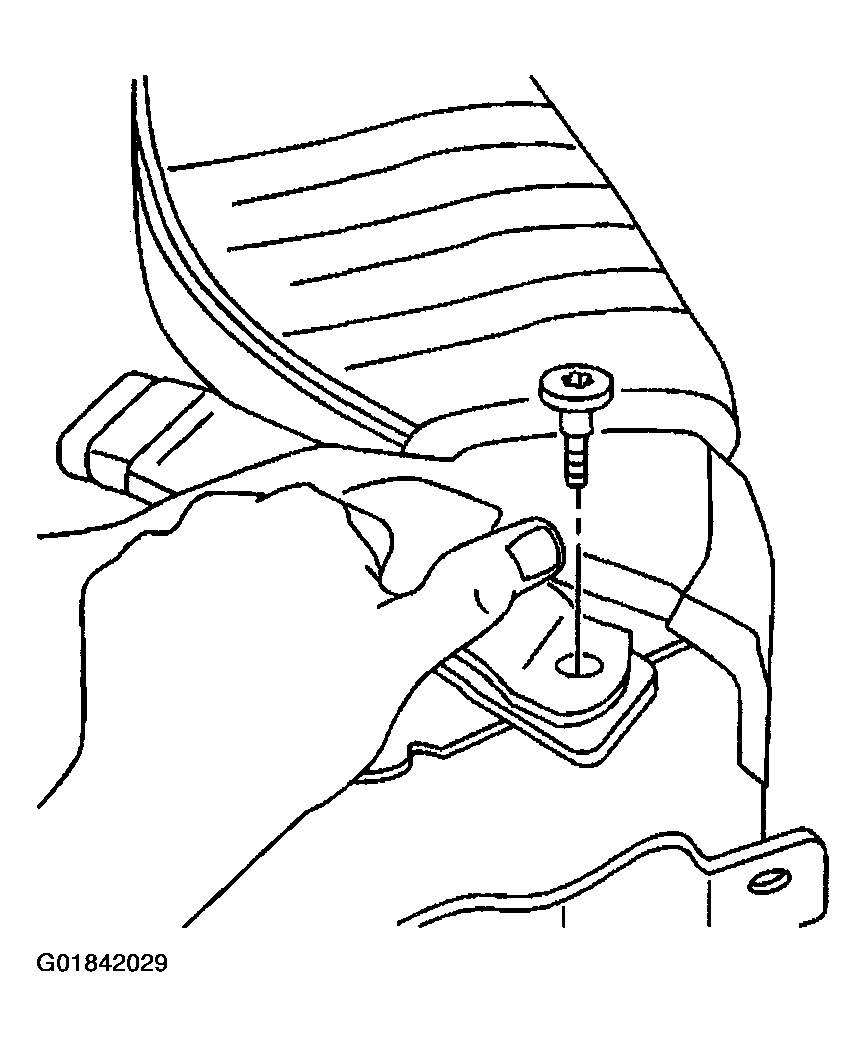

    6. Fig 3: Passenger-Side Seat Belt Buckle
    G01842029Courtesy of GENERAL MOTORS CORP.
