Blazer 4D Utility, 4WD, Part Time
>>
Repair and Diagnosis
>>
Heating, Ventilation & A/C (HVAC)
>>
HVAC Control Systems
>>
Heater Systems
>>
Vacuum Hose Diagram(S)
Vacuum Hose Diagram(S)

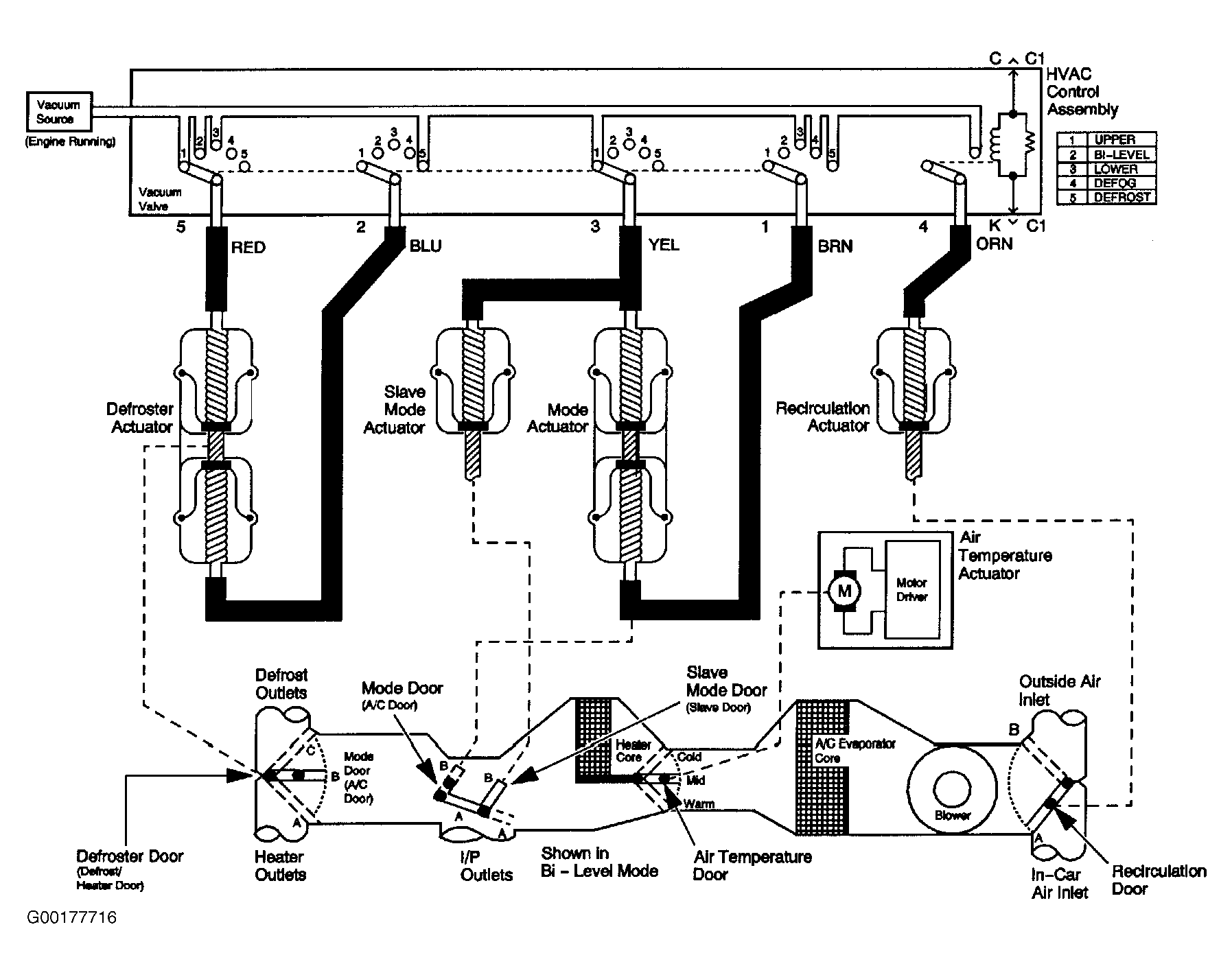

Fig 1: Vacuum Diagram (Blazer, Jimmy Canadian, Sonoma & S10 Pickup)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
