Connector Identification

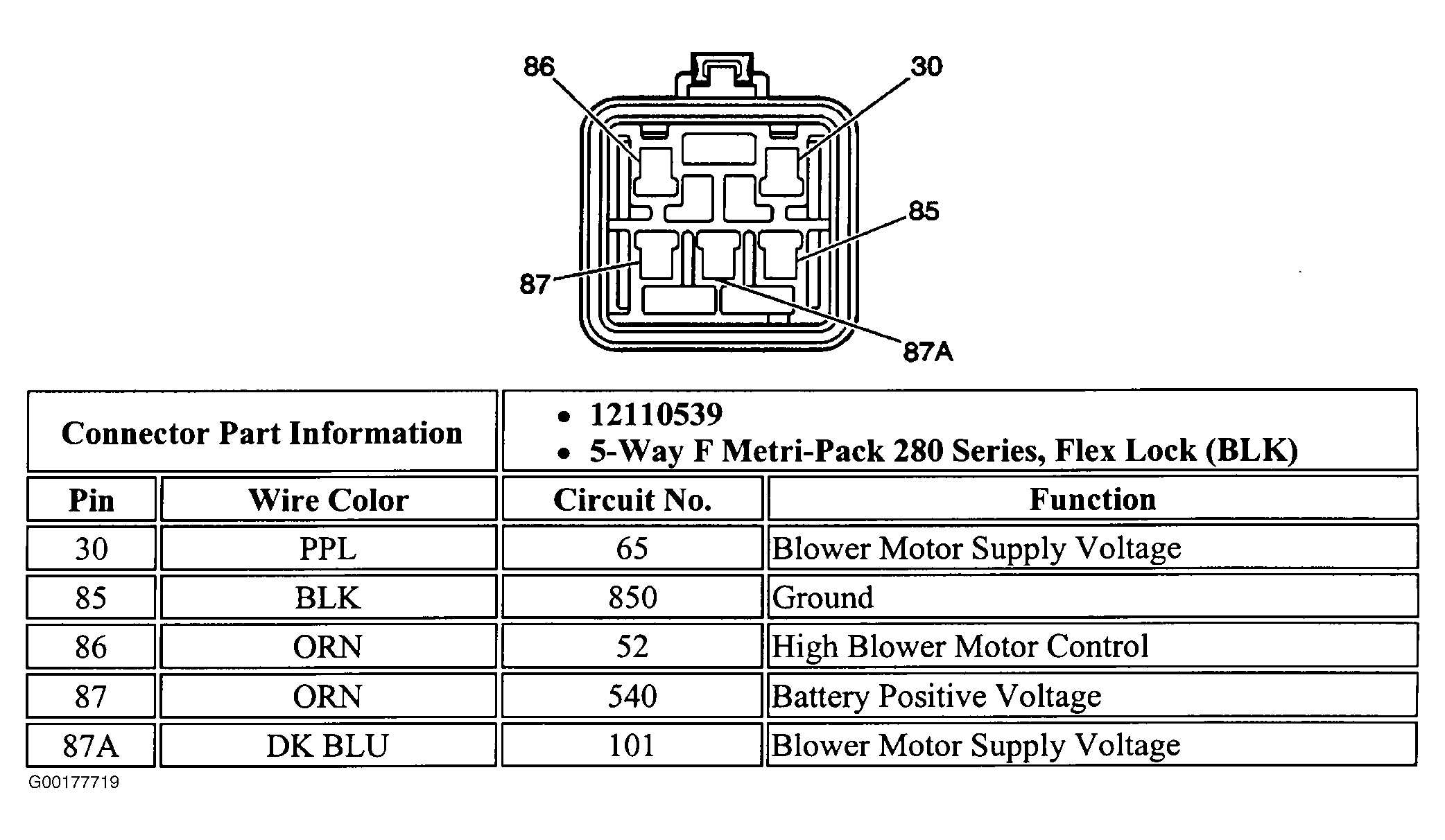

Fig 1: Identifying Blower Motor Relay Harness Connector Terminals
G00177719Courtesy of GENERAL MOTORS CORP.

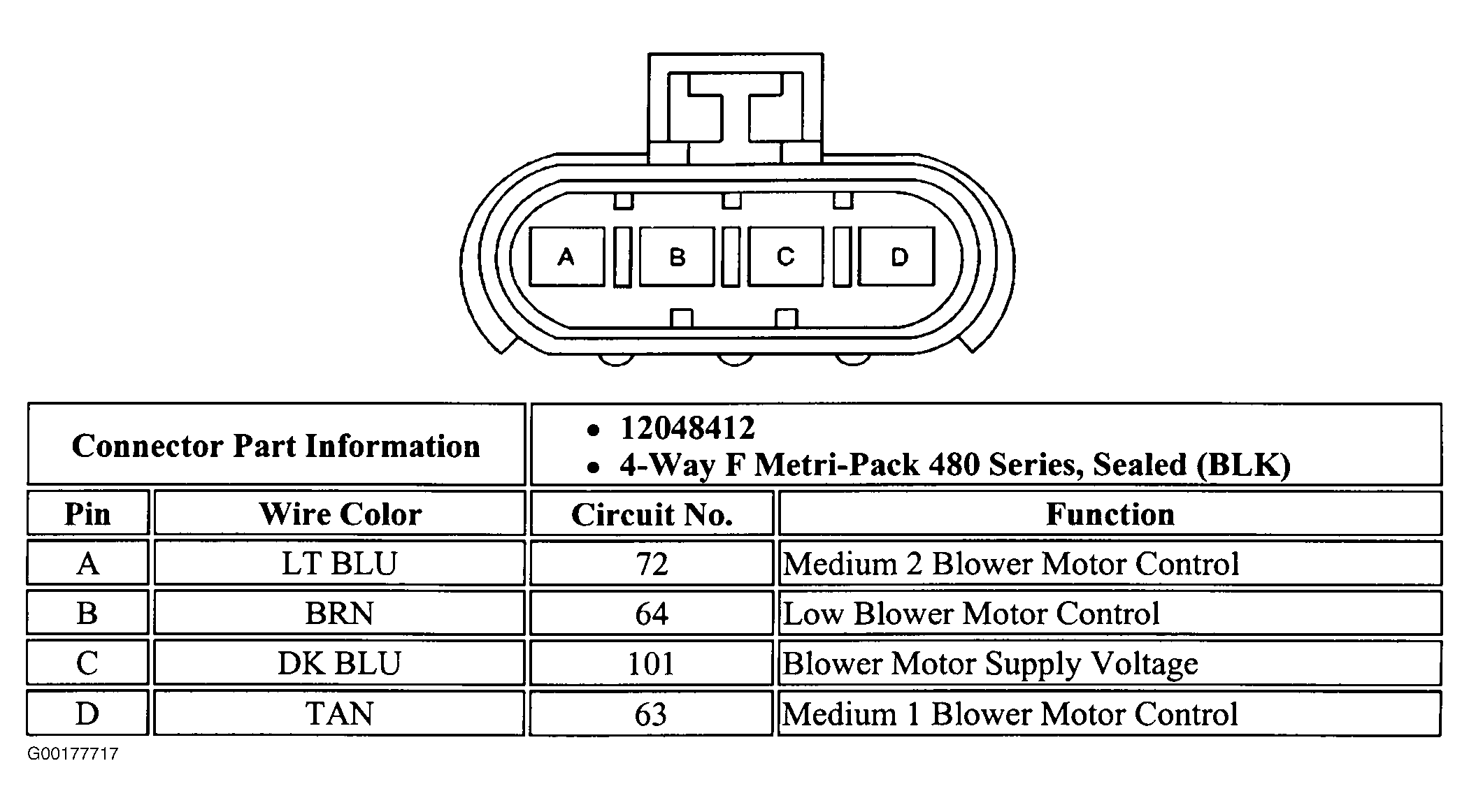

Fig 2: Identifying Blower Motor Resistor Harness Connector Terminals
G00177717Courtesy of GENERAL MOTORS CORP.

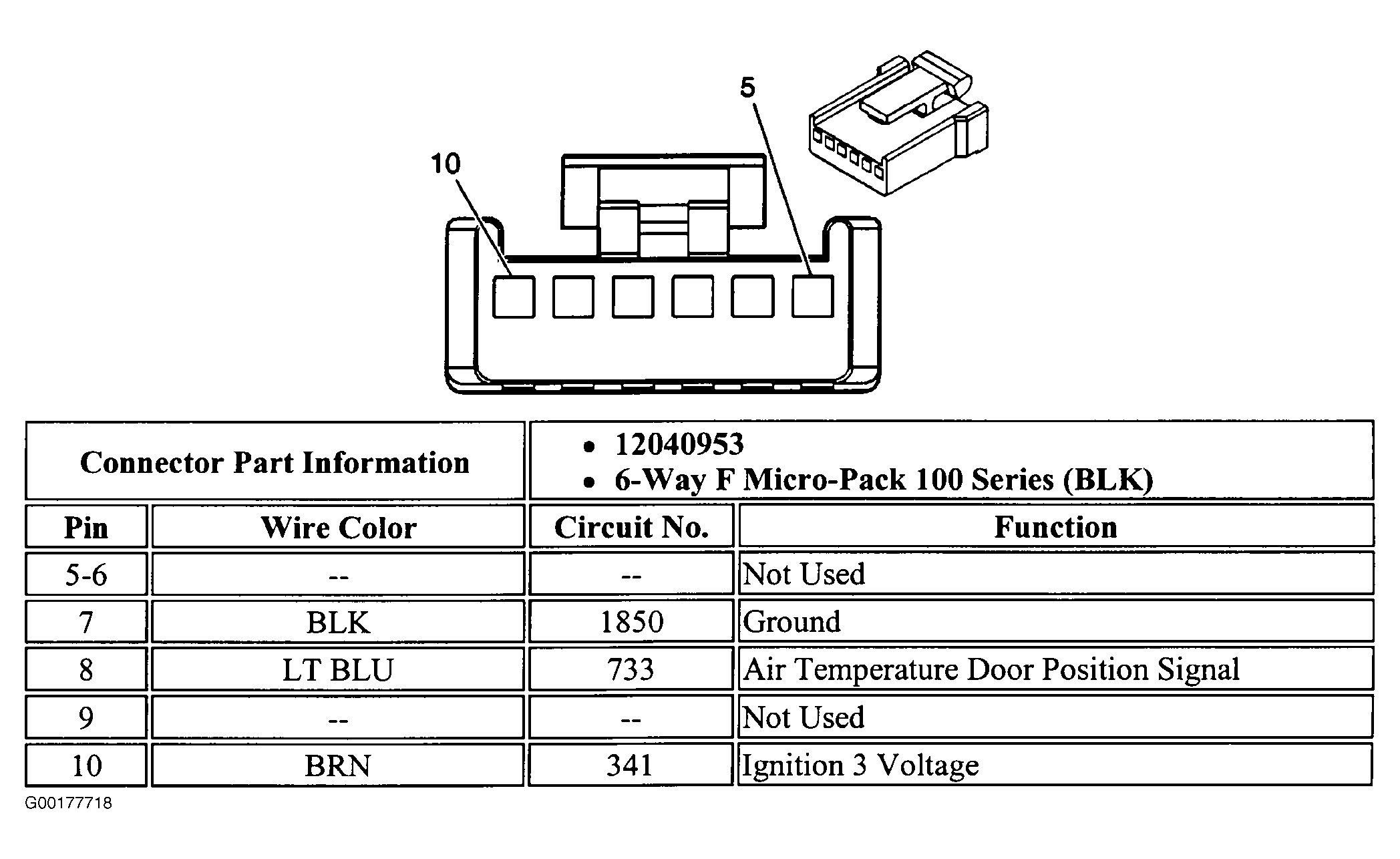

Fig 3: Identifying Temperature Actuator Harness Connector Terminals
G00177718Courtesy of GENERAL MOTORS CORP.

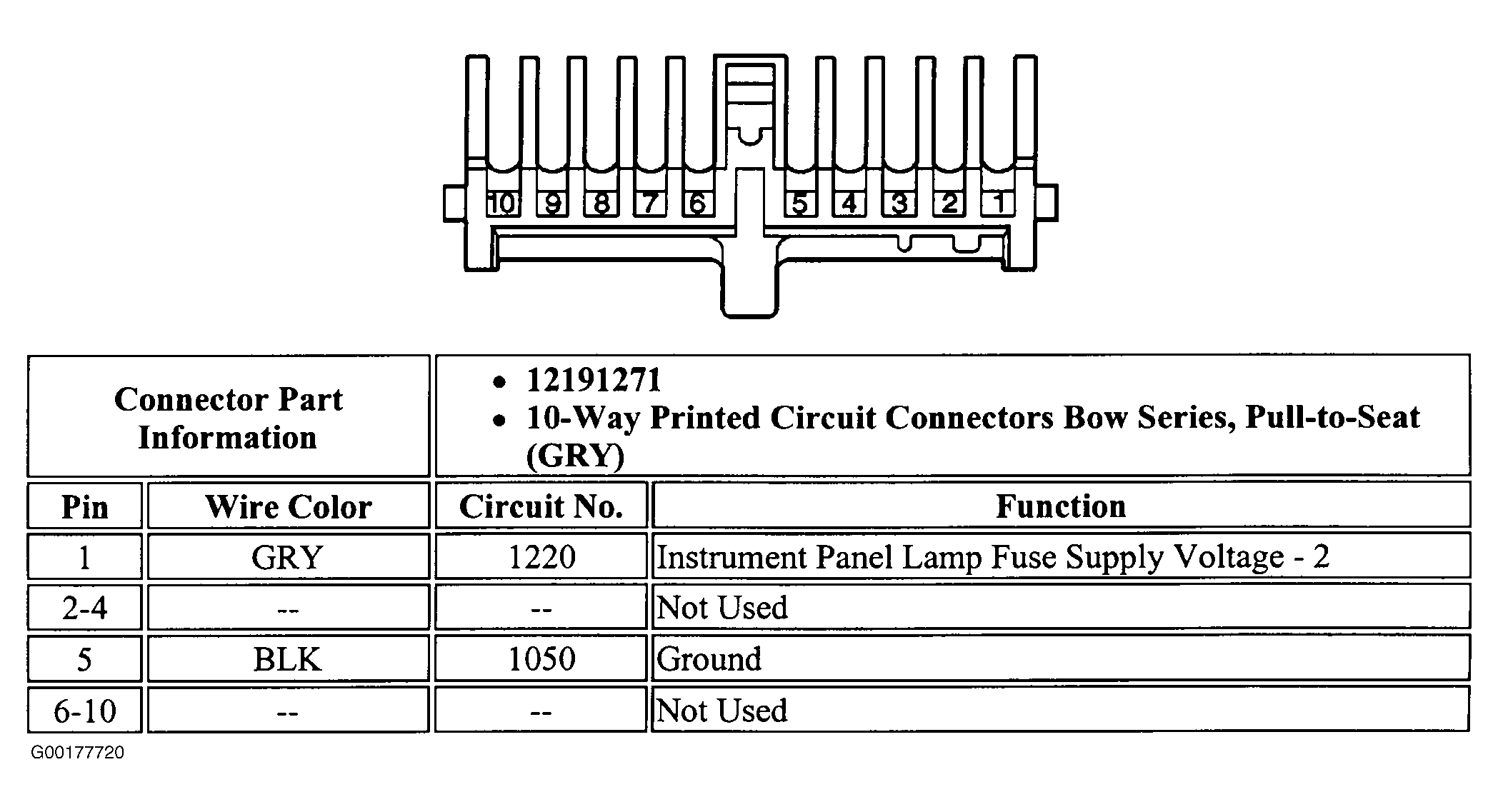

Fig 4: Identifying A/C Control Harness Connector (C1) Terminals
G00177720Courtesy of GENERAL MOTORS CORP.

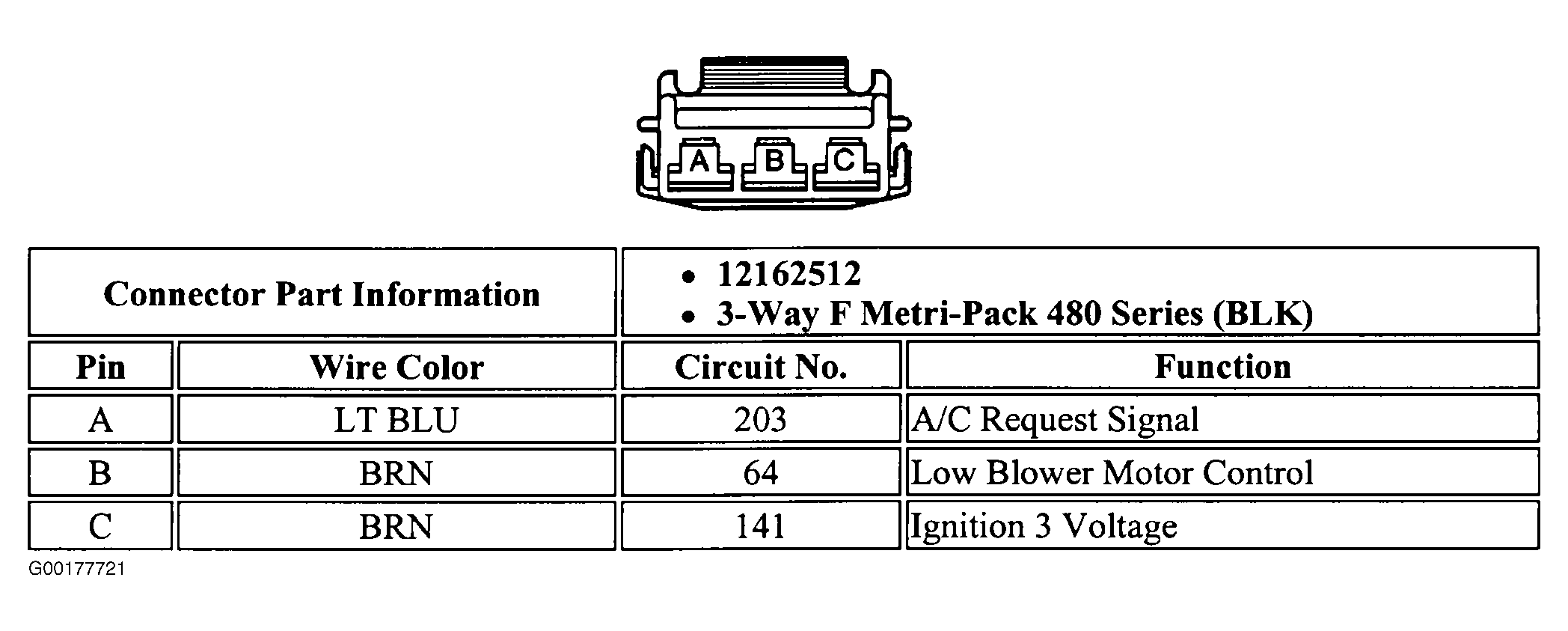

Fig 5: Identifying A/C Control Harness Connector (C2) Terminals
G00177721Courtesy of GENERAL MOTORS CORP.

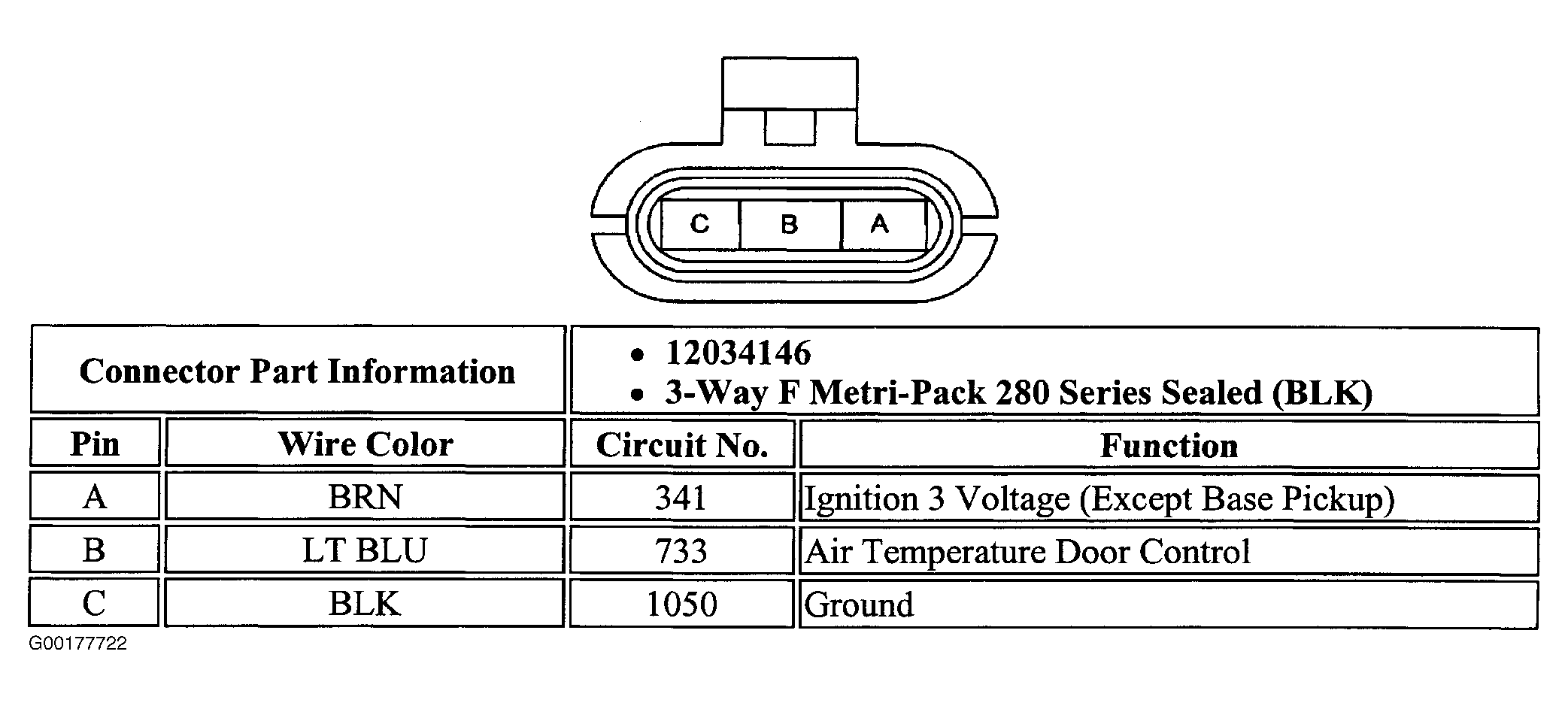

Fig 6: Identifying A/C Control Harness Connector (C3) Terminals
G00177722Courtesy of GENERAL MOTORS CORP.

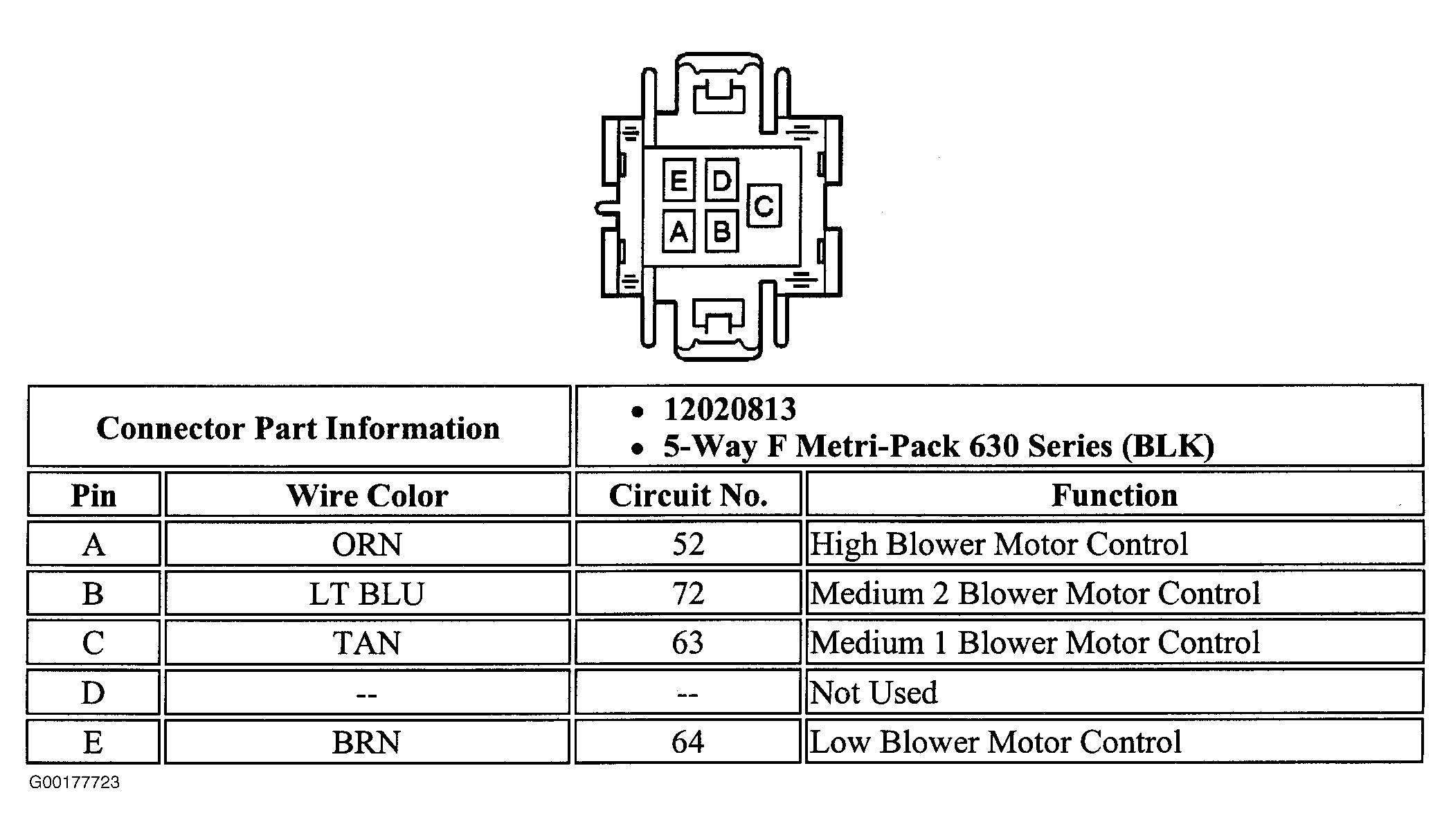

Fig 7: Identifying A/C Control Harness Connector (C4) Terminals (2002 Sonoma & S10 Pickup)
G00177723Courtesy of GENERAL MOTORS CORP.

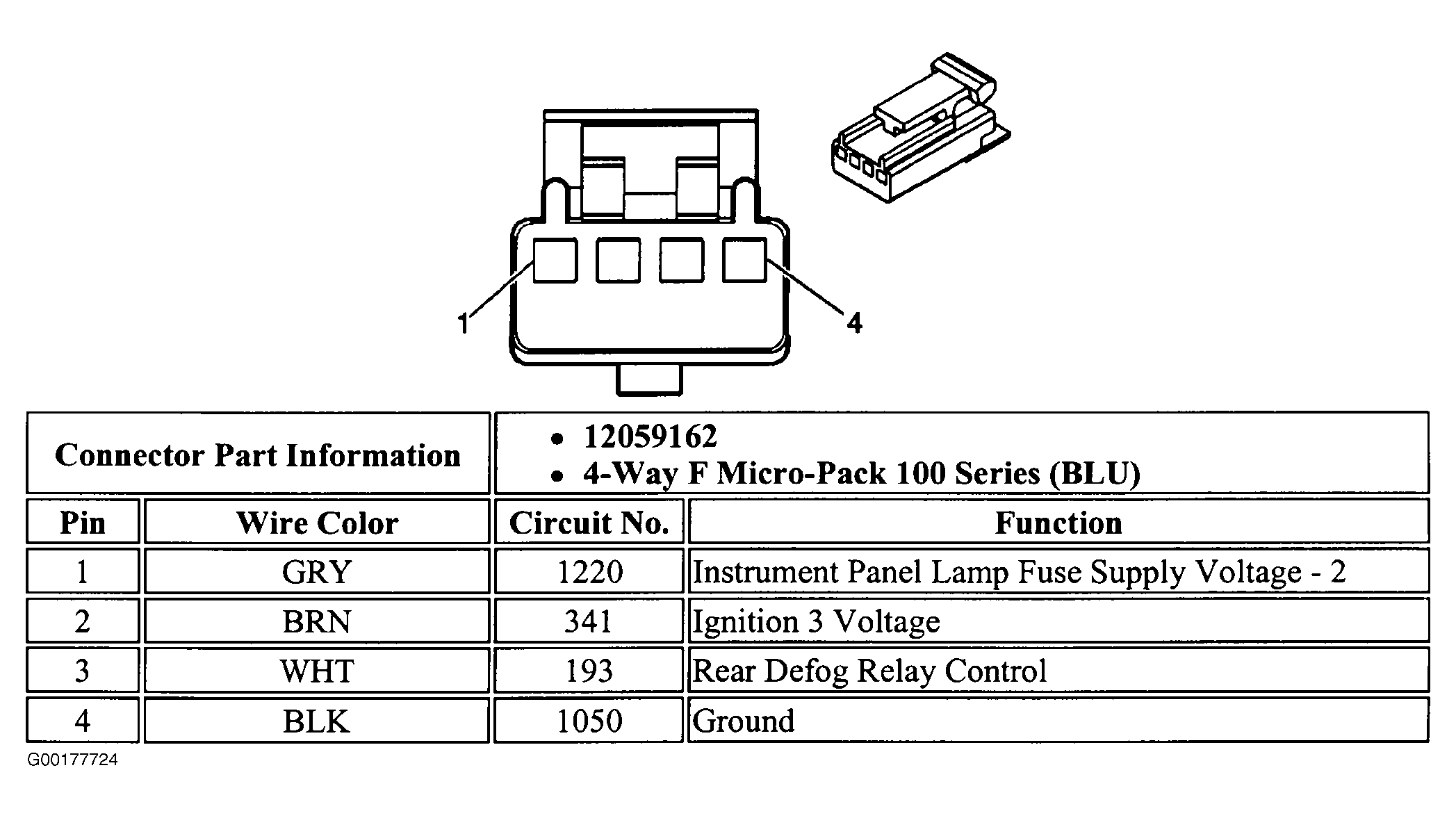

Fig 8: Identifying A/C Control Harness Connector (C5) Terminals (2002 Sonoma & S10 Pickup)
G00177724Courtesy of GENERAL MOTORS CORP.
