Compressor Relay

  1. Remove the protective cover from the underhood fuse block. Remove the compressor relay from the underhood fuse block. See Fig 1.
  2. Install the compressor relay to the underhood fuse block. Install the protective hood to the underhood fuse block. Test the circuit operation.

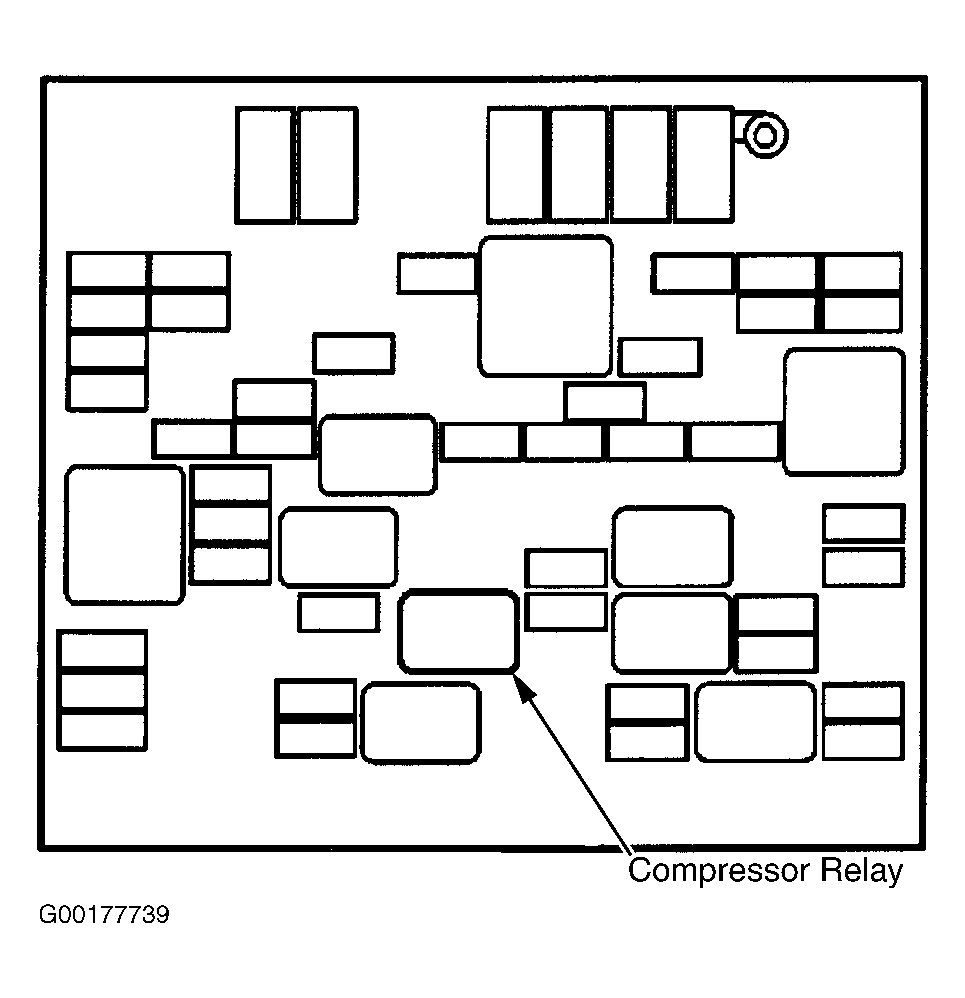

Fig 1: Locating Compressor Relay In Underhood Fuse Box (Blazer - Jimmy Canadian, Sonoma & S10 Pickup)
G00177739Courtesy of GENERAL MOTORS CORP.
