Tire and Wheel Runout Specifications

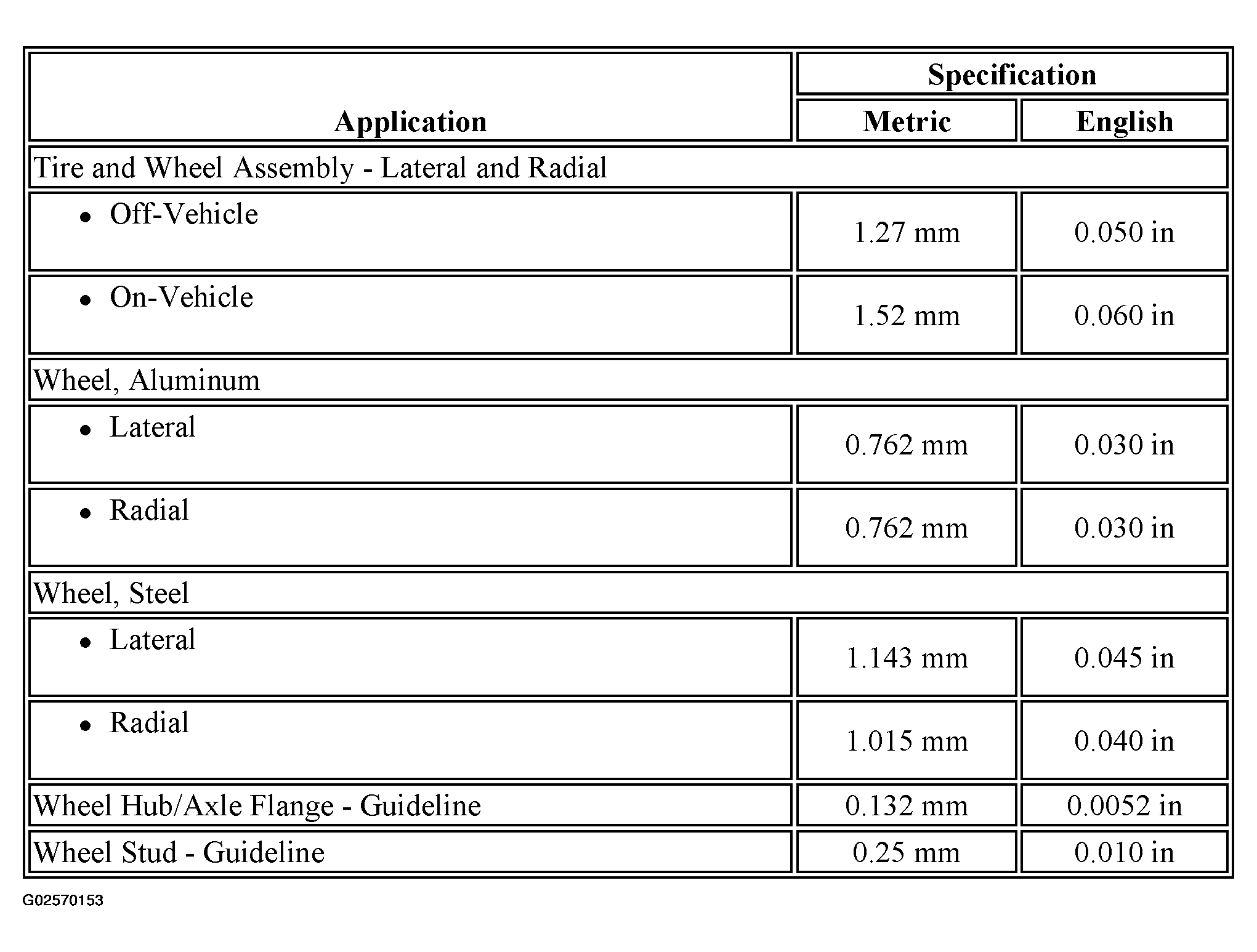

Fig 1: Tire & Wheel Runout Specifications

G02570153

Courtesy of GENERAL MOTORS CORP.
