Propeller Shaft Runout Specifications

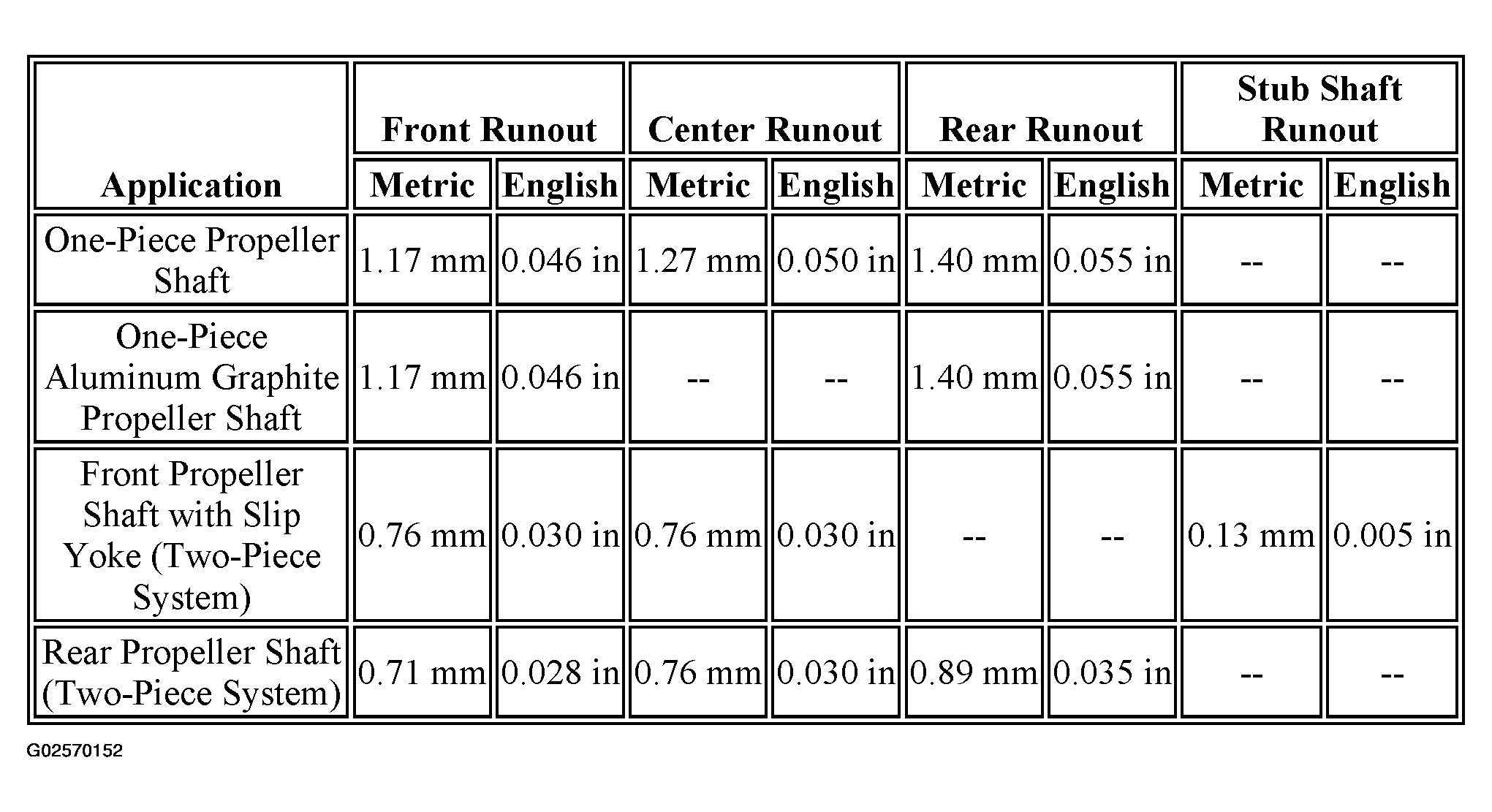

Fig 1: Propeller Shaft Runout Specifications

G02570152

Courtesy of GENERAL MOTORS CORP.
