Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Raise the vehicle. Refer to LIFTING & JACKING THE VEHICLE in General Information.
  2. Remove the transfer case shield. Refer to Transfer Case Shield Replacement .
  3. Remove the transfer case right rear speed sensor electrical connector.
  4. Remove the transfer case speed sensor.

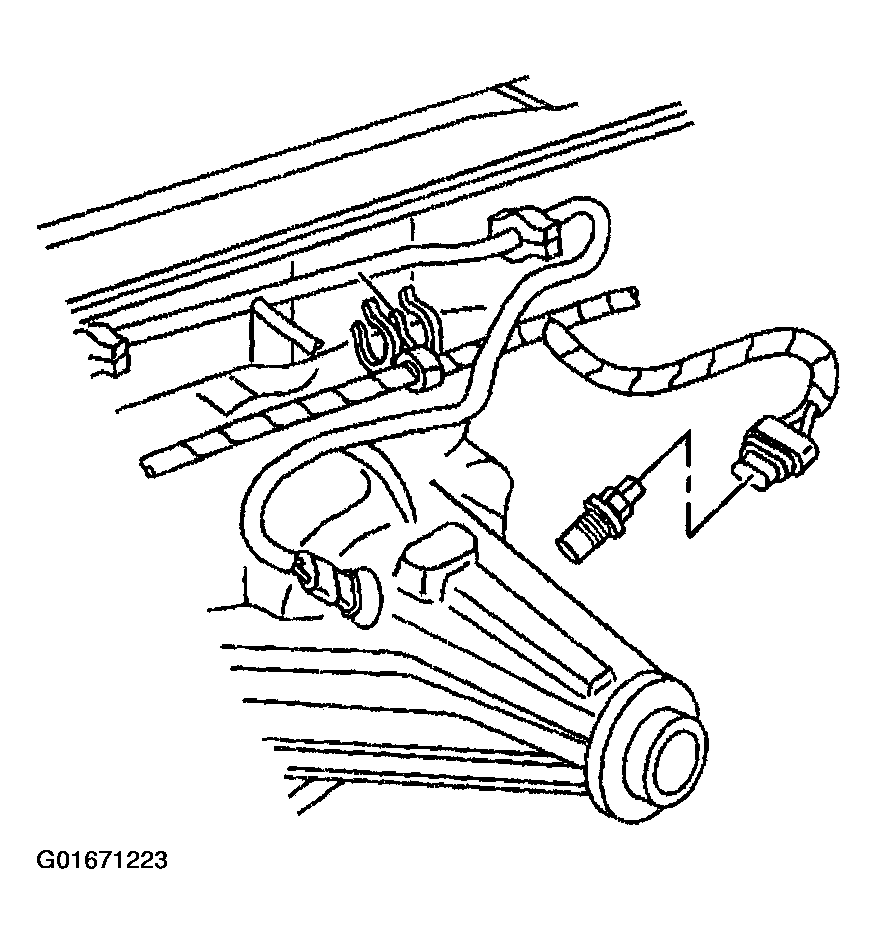

    Fig 1: Removing Transfer Case Right Rear Speed Sensor
    G01671223Courtesy of GENERAL MOTORS CORP.
