Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Raise the vehicle. Refer to LIFTING & JACKING THE VEHICLE in General Information.
  2. Remove the transfer case left rear speed sensor electrical connector.
  3. Remove the transfer case left rear speed sensor.

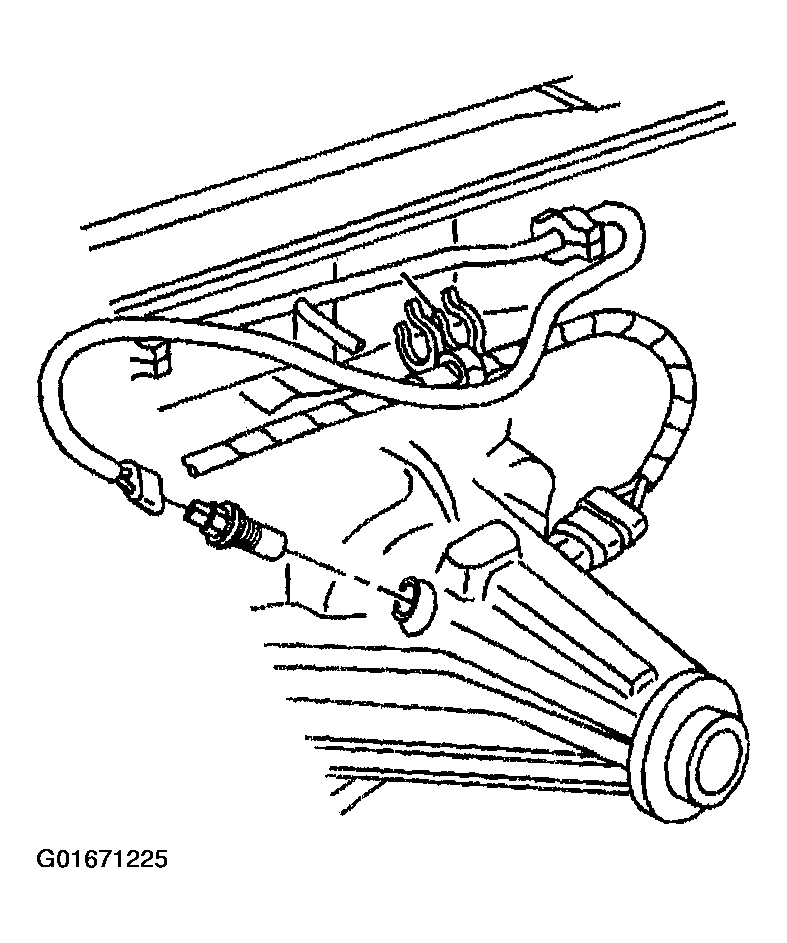

    Fig 1: Removing Transfer Case Left Rear Speed Sensor
    G01671225Courtesy of GENERAL MOTORS CORP.
