Installation Procedure

WARNING: This page is about a different variant/trim than selected.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the transfer case left rear speed sensor into the transfer case.

    Tighten

    Tighten the transfer case left rear speed sensor to 15 N.m (11 lb ft).

  2. Install the transfer case left rear speed sensor electrical connector.
  3. Lower the vehicle. Refer to LIFTING & JACKING THE VEHICLE in General Information.

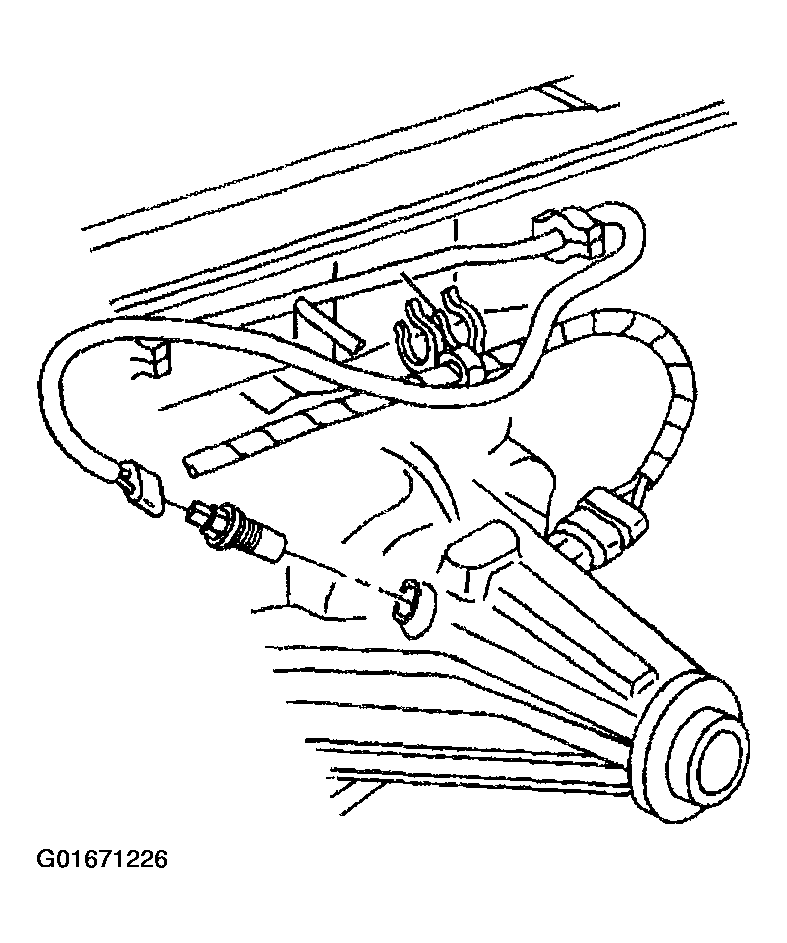

    Fig 1: Installing Transfer Case Left Rear Speed Sensor Into Transfer Case
    G01671226Courtesy of GENERAL MOTORS CORP.
