Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Important:  When installing the control switch, a snap should be felt or heard when it is properly seated.

  1. Install the electrical connectors in the transfer case control switch.
  2. Install the automatic transfer case switch into the instrument panel.

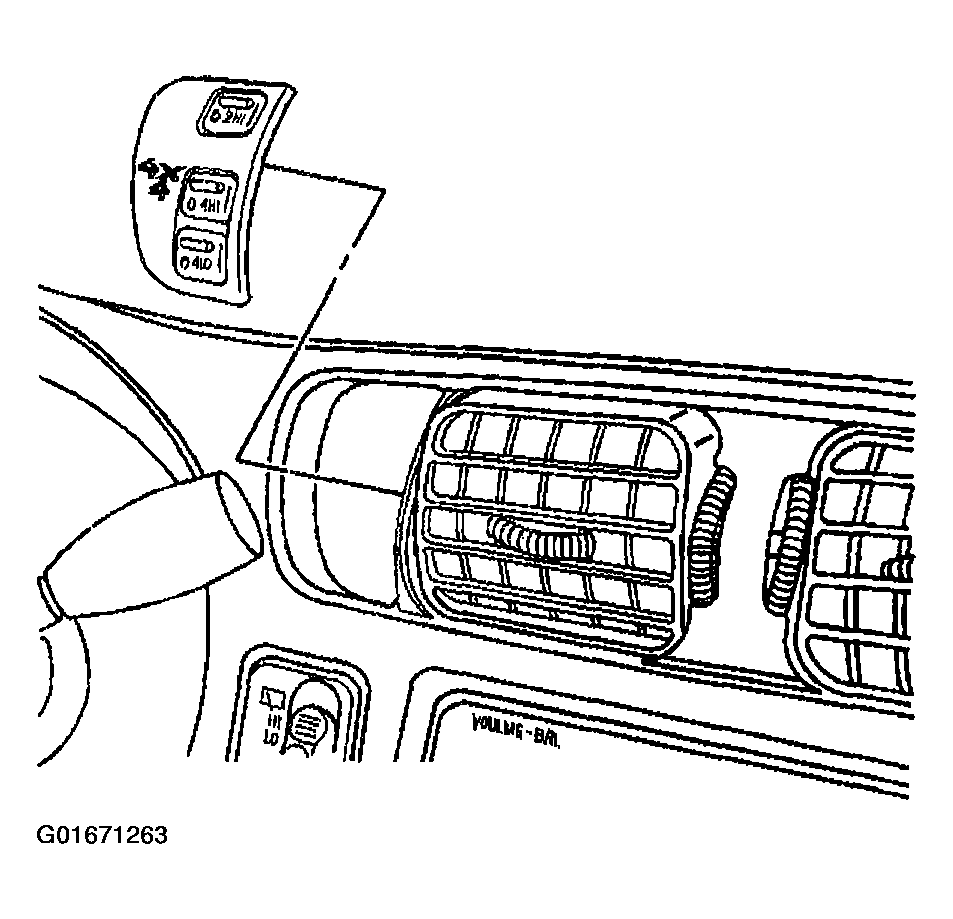

    Fig 1: Installing Automatic Transfer Case Switch Into Instrument Panel
    G01671263Courtesy of GENERAL MOTORS CORP.
