Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the right lower hinge trim panel. Refer to TRIM PANEL REPLACEMENT - RIGHT HINGE PILLAR in Interior Trim.

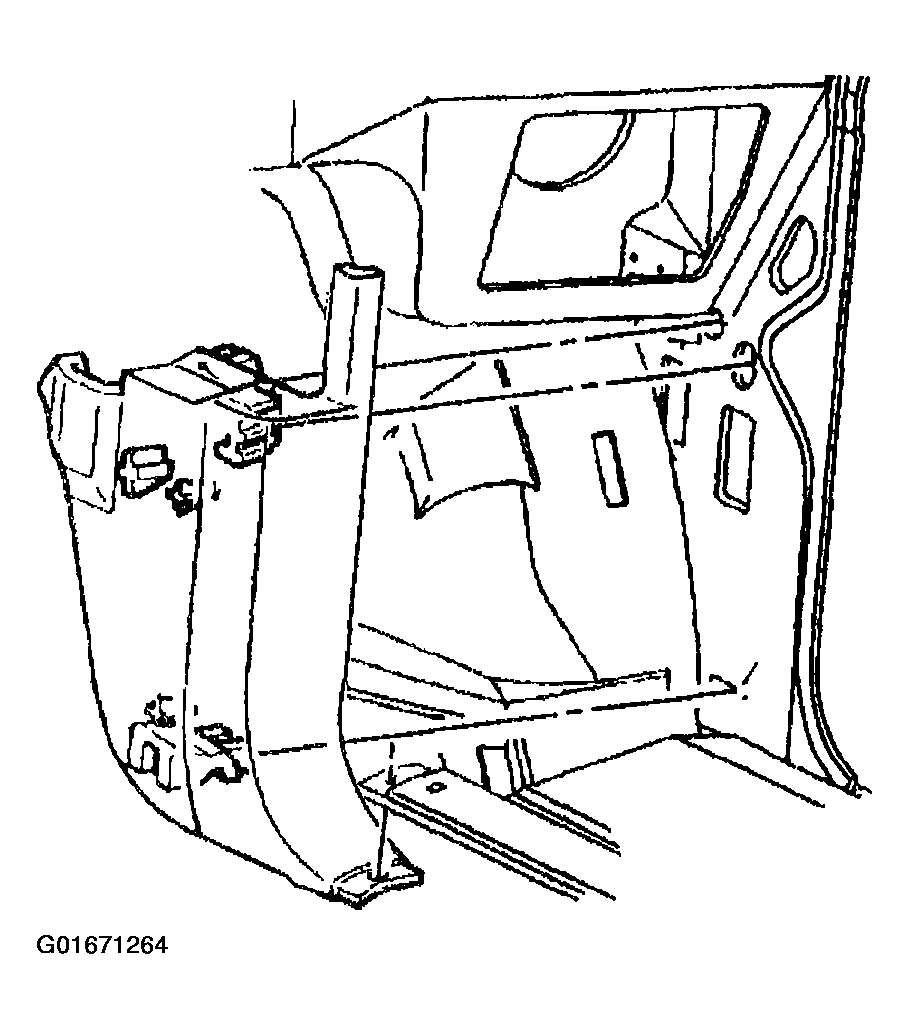

    Fig 1: Removing Right Lower Hinge Trim Panel
    G01671264Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the 2 wiring harness connectors from the automatic transfer case control module

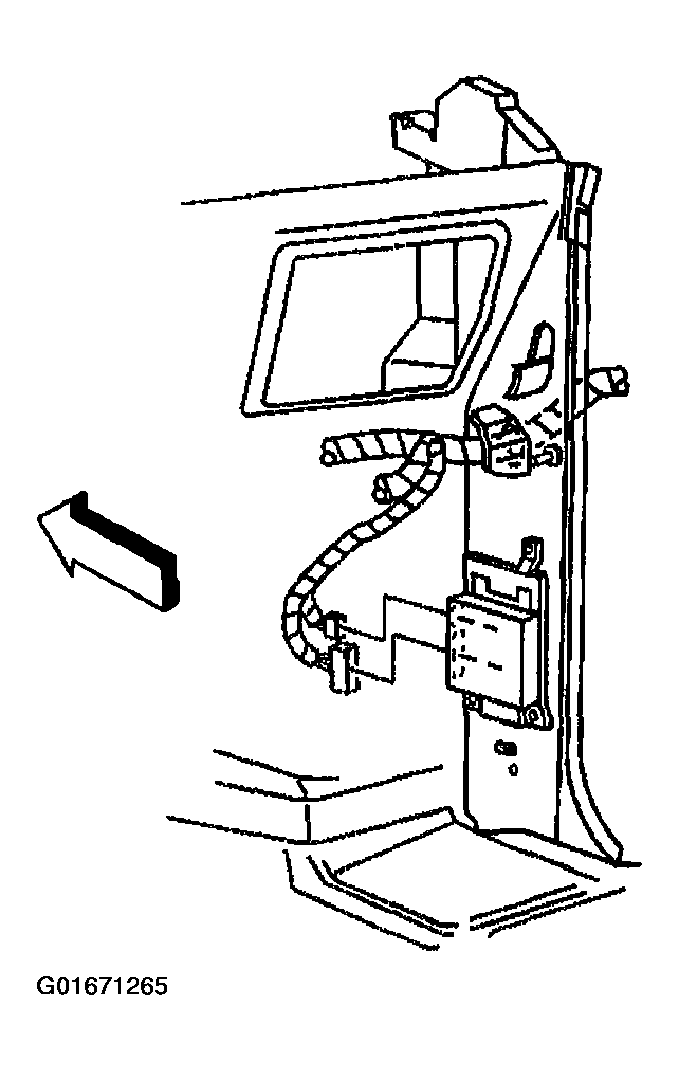

    Fig 2: Disconnecting Wiring Harness Connectors From Automatic Transfer Case Control Module
    G01671265Courtesy of GENERAL MOTORS CORP.
  3. Remove the 3 nuts securing the automatic transfer case control module to the retainer.
  4. Slide the automatic transfer case control module straight out from the retainer.

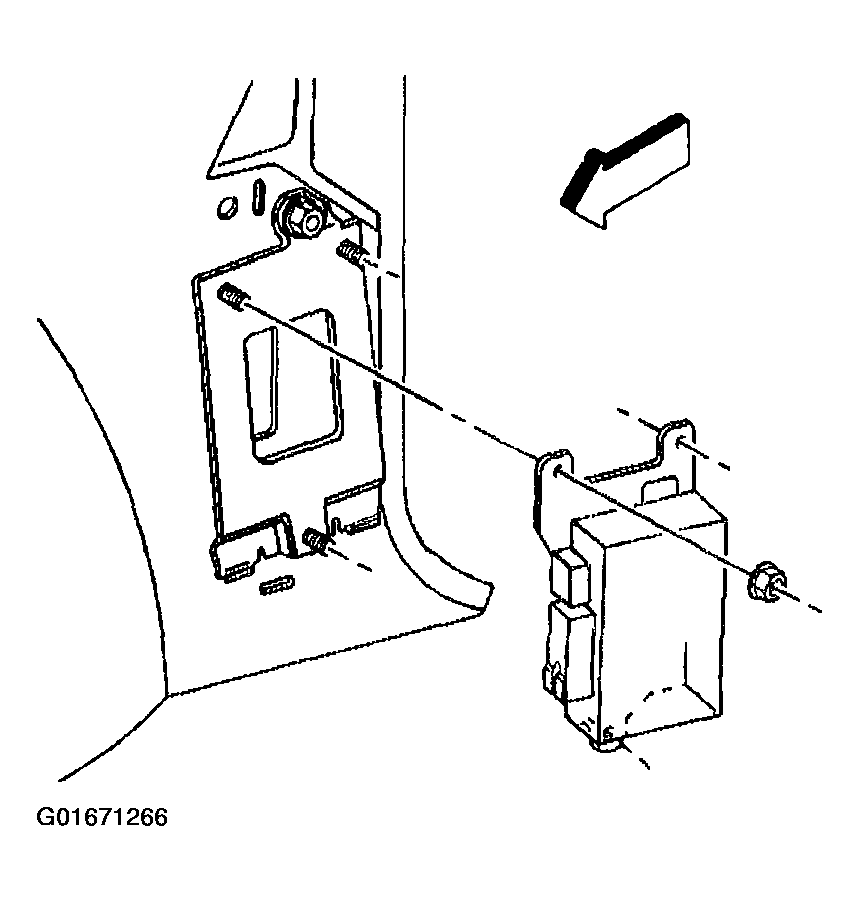

    Fig 3: Removing Automatic Transfer Case Control Module From Retainer
    G01671266Courtesy of GENERAL MOTORS CORP.
