Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Raise the vehicle. Refer to LIFTING & JACKING THE VEHICLE in General Information.
  2. Remove the transfer case shield mounting bolts.
  3. Remove the transfer case shield from the cross member.

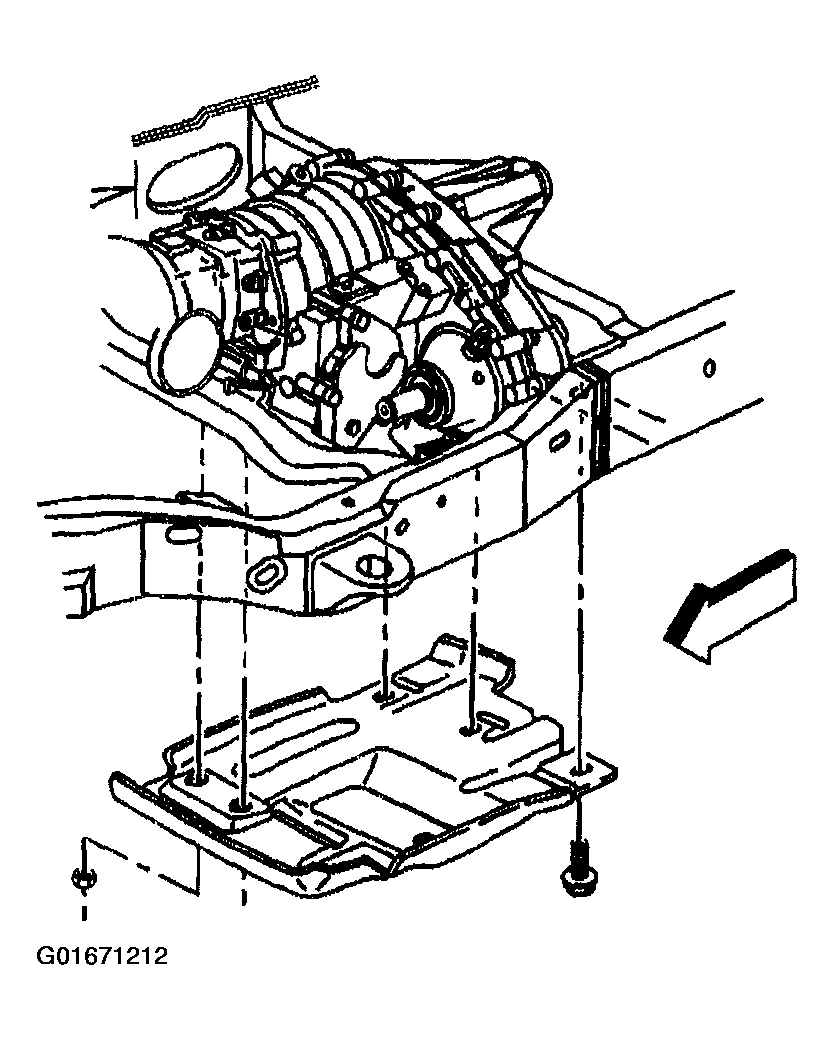

    Fig 1: Removing Transfer Case Shield From Cross Member
    G01671212Courtesy of GENERAL MOTORS CORP.
