Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the transfer case shield to the cross member.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the transfer case shield mounting bolts fro the transfer case shield.

    Tighten

    Tighten the mounting bolts to 33 N.m (24 lb ft).

  3. Lower the vehicle. Refer to LIFTING & JACKING THE VEHICLE in General Information.

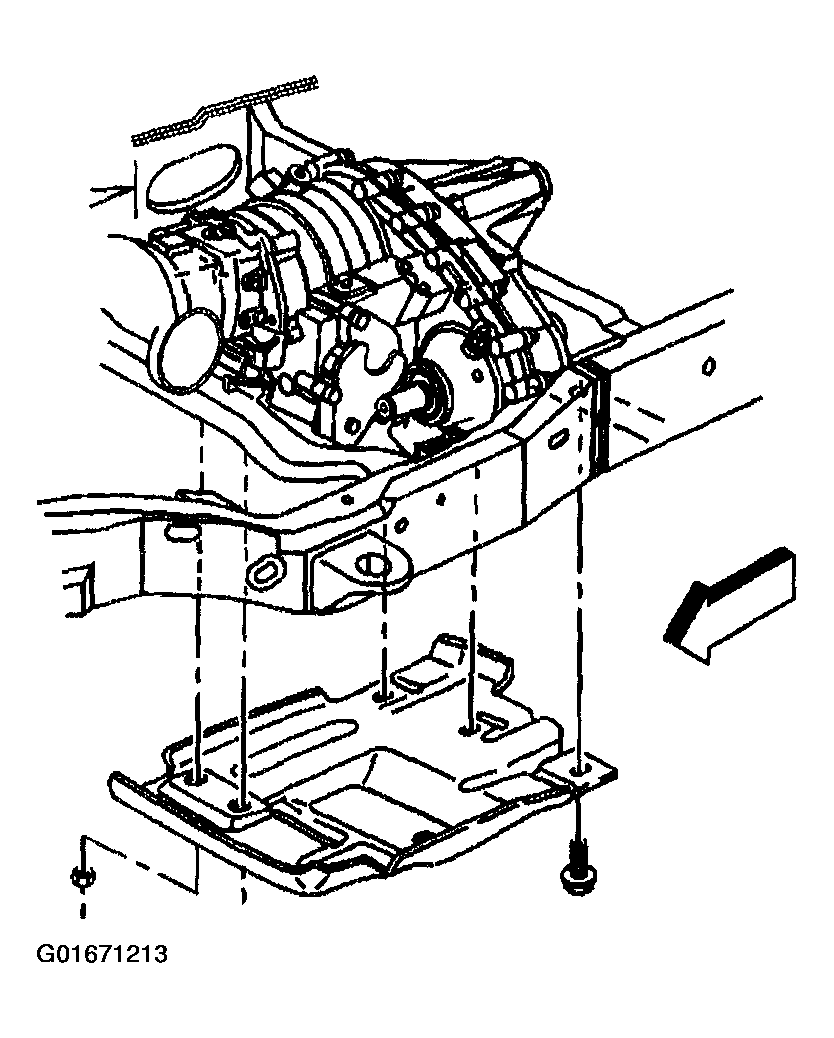

    Fig 1: Installing Transfer Case Shield To Cross Member
    G01671213Courtesy of GENERAL MOTORS CORP.
