Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Raise the vehicle. Refer to LIFTING & JACKING THE VEHICLE in General Information.
Remove the transfer case shield from the vehicle. Refer to Transfer Case Shield Replacement .

Fig 1: Removing Transfer Case Shield From Vehicle
Courtesy of GENERAL MOTORS CORP.
Remove the rear propeller shaft from the transfer case.
- For vehicles equipped with the one piece rear propeller shaft, refer to PROPELLER SHAFT REPLACEMENT - ONE PIECE in Propeller Shaft.
- For vehicles equipped with the two piece rear propeller shaft, refer to PROPELLER SHAFT REPLACEMENT - TWO PIECE in Propeller Shaft.

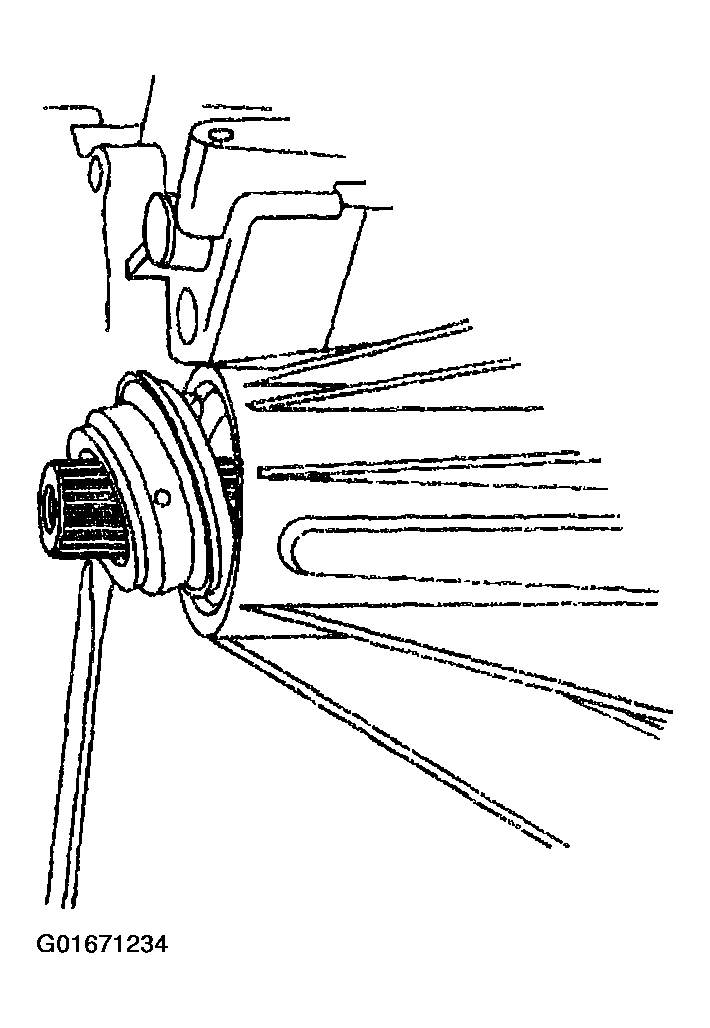

Remove the transfer case rear output shaft seal.
