Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Raise the vehicle. Refer to LIFTING & JACKING THE VEHICLE in General Information.
  2. Remove the transfer case shield from the vehicle. Refer to Transfer Case Shield Replacement .
  3. Remove the front propeller shaft from the transfer case. Refer to PROPELLER SHAFT REPLACEMENT - FRONT in Propeller Shaft.
  4. Remove the transfer case front output shaft dust seal.

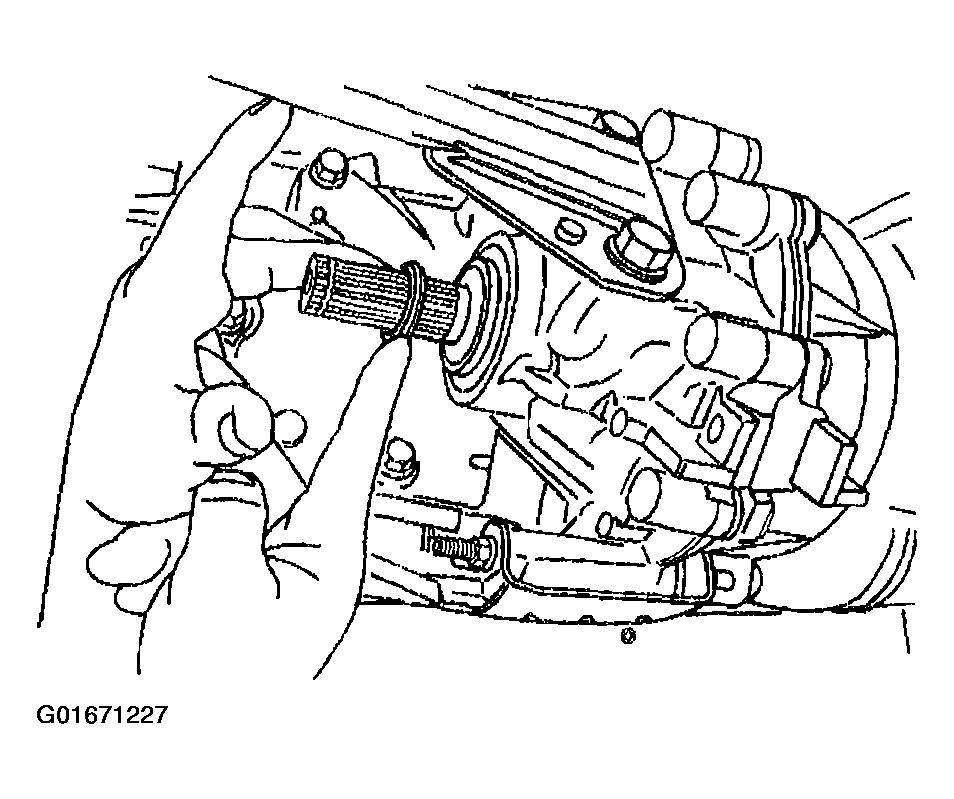

    Fig 1: Removing Transfer Case Front Output Shaft Dust Seal
    G01671227Courtesy of GENERAL MOTORS CORP.
  5. Remove the transfer case front output shaft seal.

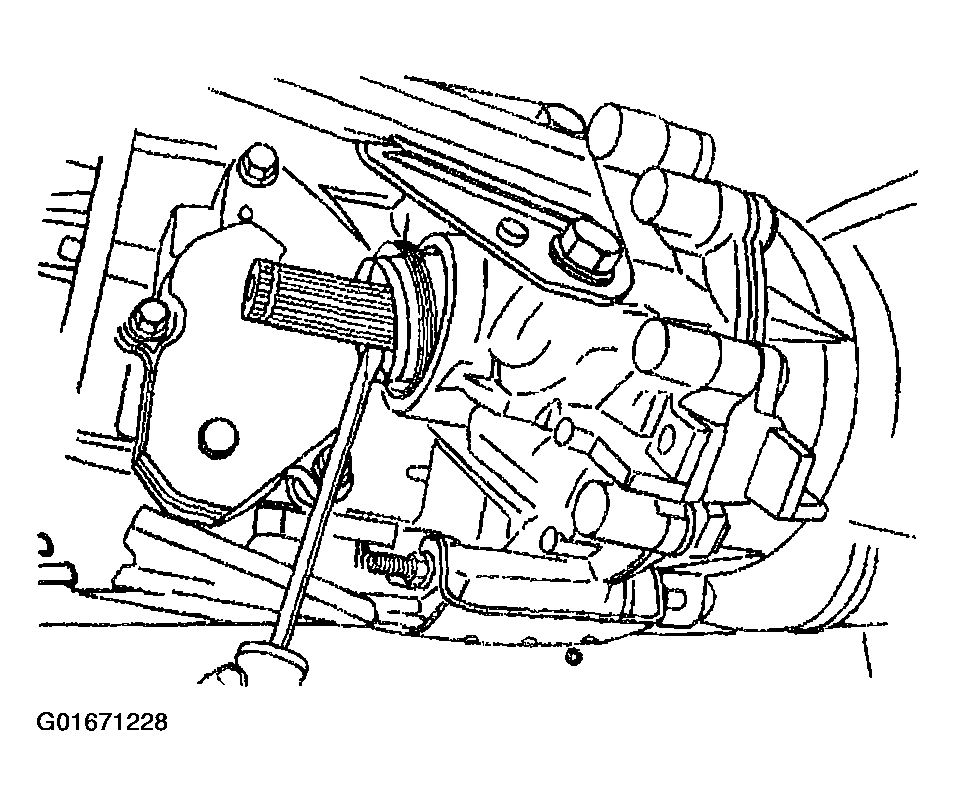

    Fig 2: Removing Transfer Case Front Output Shaft Seal
    G01671228Courtesy of GENERAL MOTORS CORP.
