Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the J 44636-2  on the transfer case front output shaft.

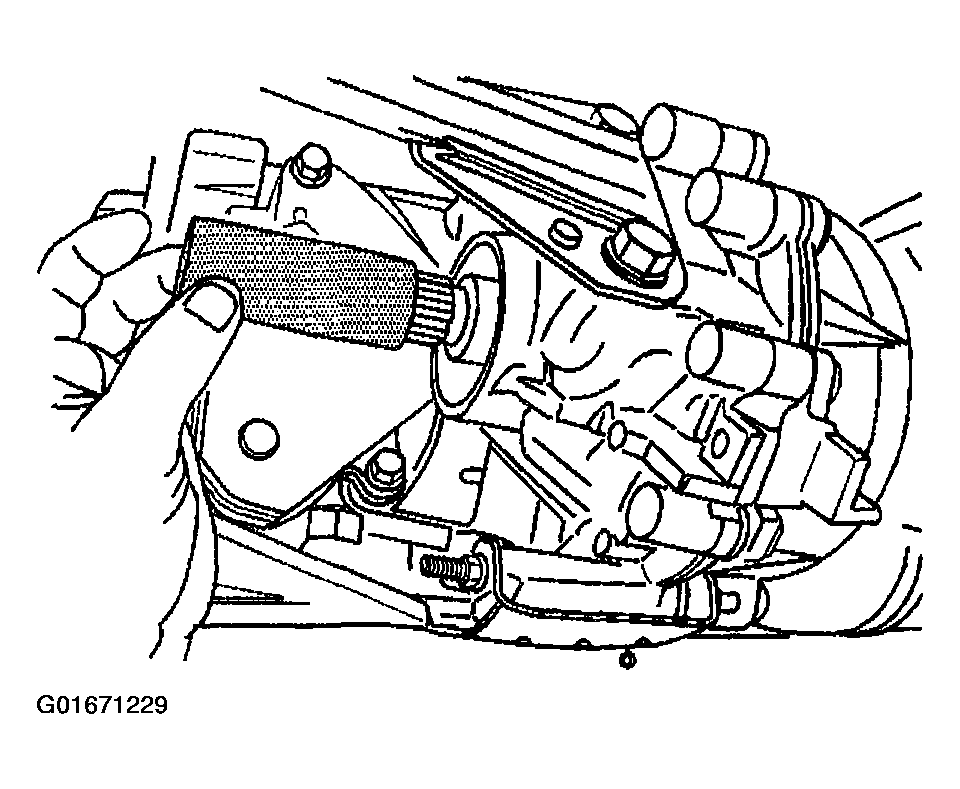

    Fig 1: Installing J 44636-2 On Transfer Case Front Output Shaft
    G01671229Courtesy of GENERAL MOTORS CORP.
  2. Install the transfer case front output shaft seal on the J 44636-2  .

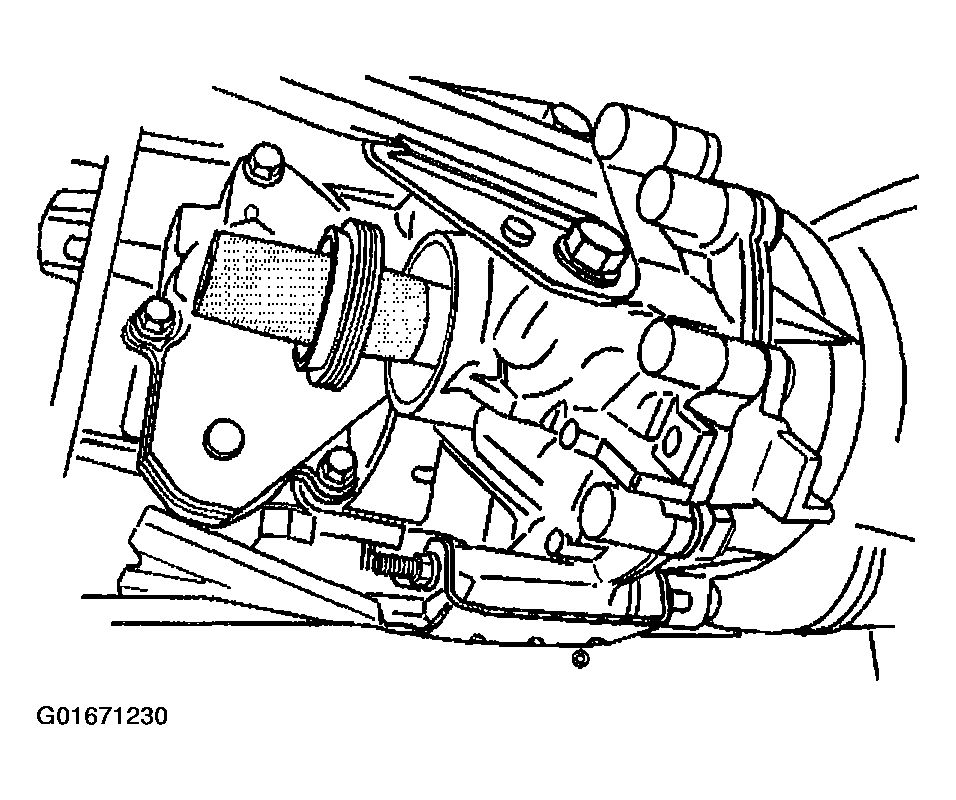

    Fig 2: Installing Transfer Case Front Output Shaft Seal On J 44636-2
    G01671230Courtesy of GENERAL MOTORS CORP.
  3. Using the J 44636-1  , install the transfer case front output shaft seal.
  4. Remove the J 44636-1  from the transfer case front output shaft.

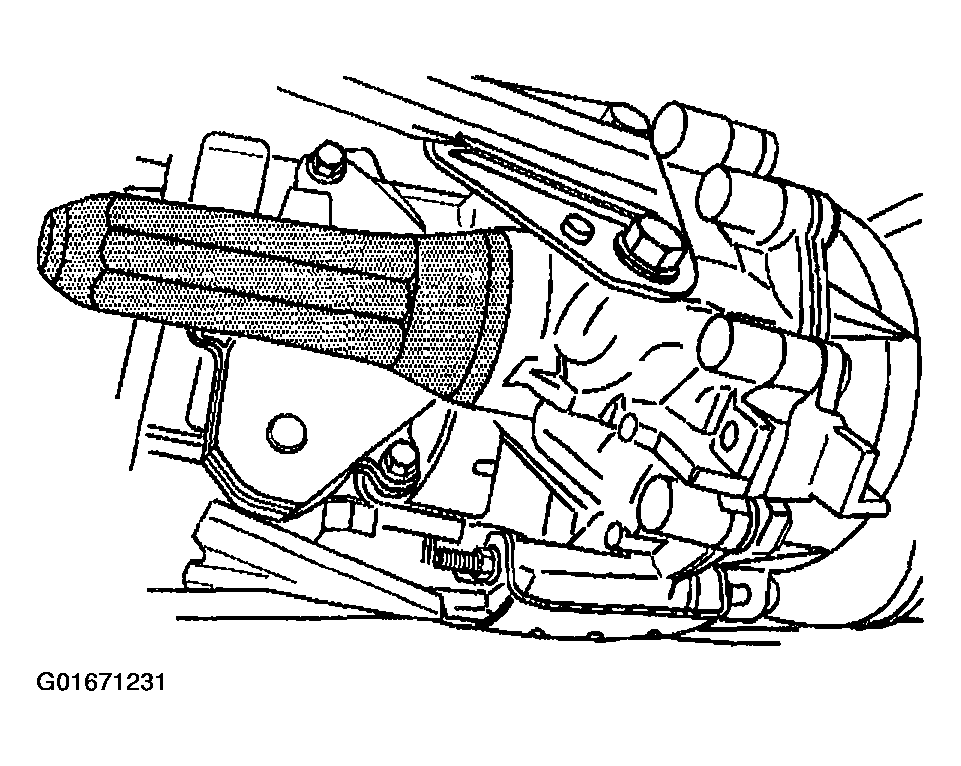

    Fig 3: Installing Transfer Case Front Output Shaft Seal Using J 44636-1
    G01671231Courtesy of GENERAL MOTORS CORP.
  5. Remove the J 44636-2  from the transfer case front output shaft.

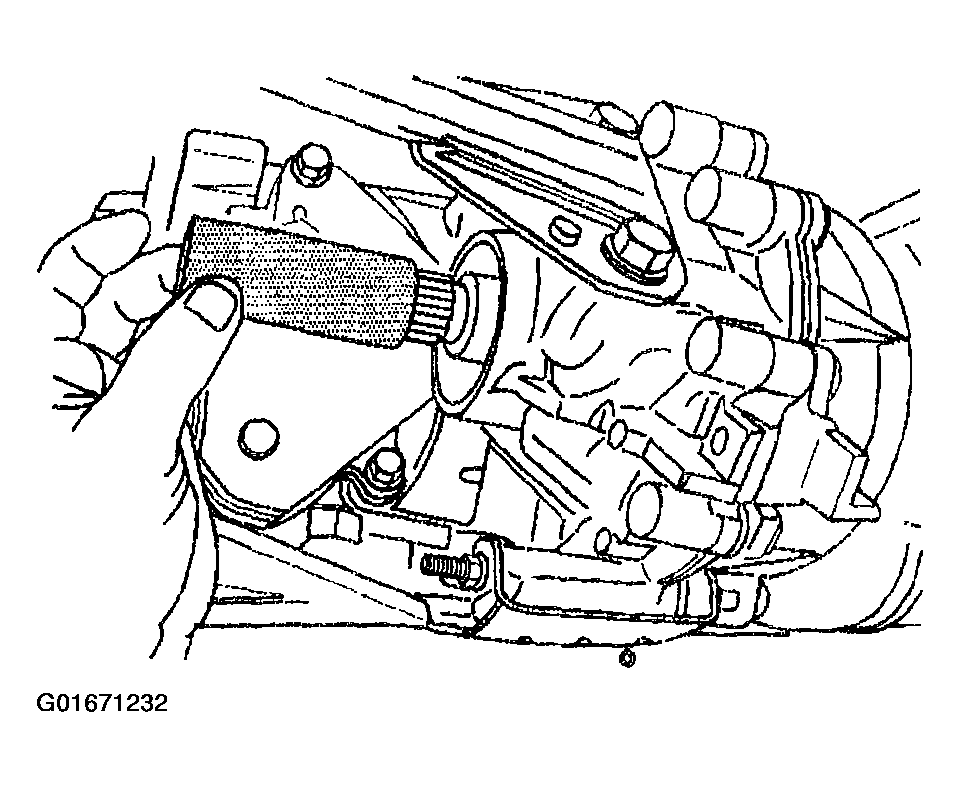

    Fig 4: Removing J 44636-2 From Transfer Case Front Output Shaft
    G01671232Courtesy of GENERAL MOTORS CORP.
  6. Install the transfer case front output shaft dust seal.
  7. Install the front propeller shaft to the transfer case. Refer to PROPELLER SHAFT REPLACEMENT - FRONT in Propeller Shaft.
  8. Check the transfer case fluid level. Refer to Transfer Case Fluid Replacement .
  9. Install the transfer case shield to the vehicle. Refer to Transfer Case Shield Replacement .
  10. Lower the vehicle. Refer to LIFTING & JACKING THE VEHICLE in General Information.

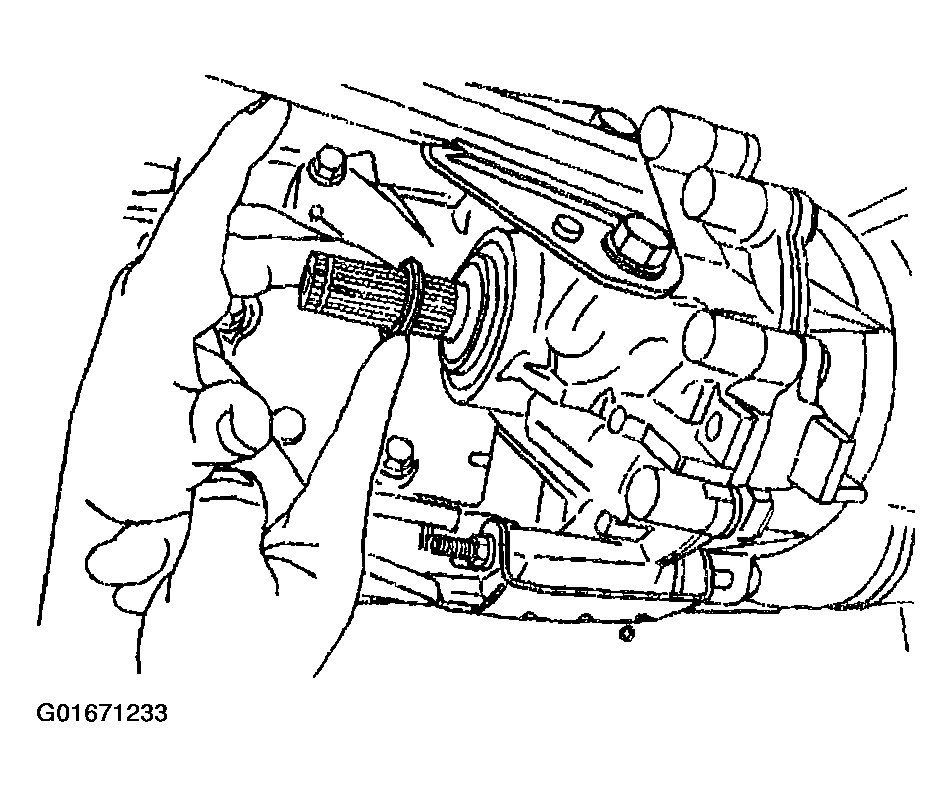

    Fig 5: Installing Transfer Case Front Output Shaft Dust Seal
    G01671233Courtesy of GENERAL MOTORS CORP.
