Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Raise the vehicle. Refer to LIFTING & JACKING THE VEHICLE in General Information.
  2. Remove the transfer case shield from the vehicle. Refer to Transfer Case Shield Replacement .

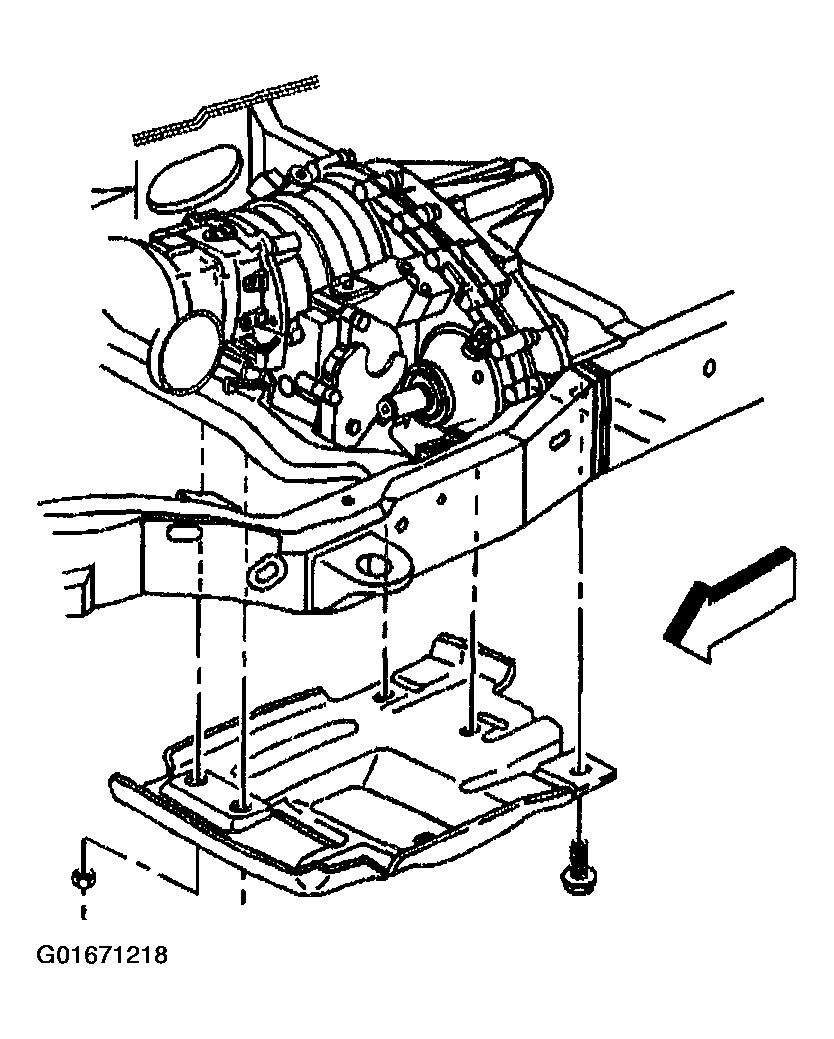

    Fig 1: Removing Transfer Case Shield From Vehicle
    G01671218Courtesy of GENERAL MOTORS CORP.
  3. Remove the motor/encoder electrical connector.

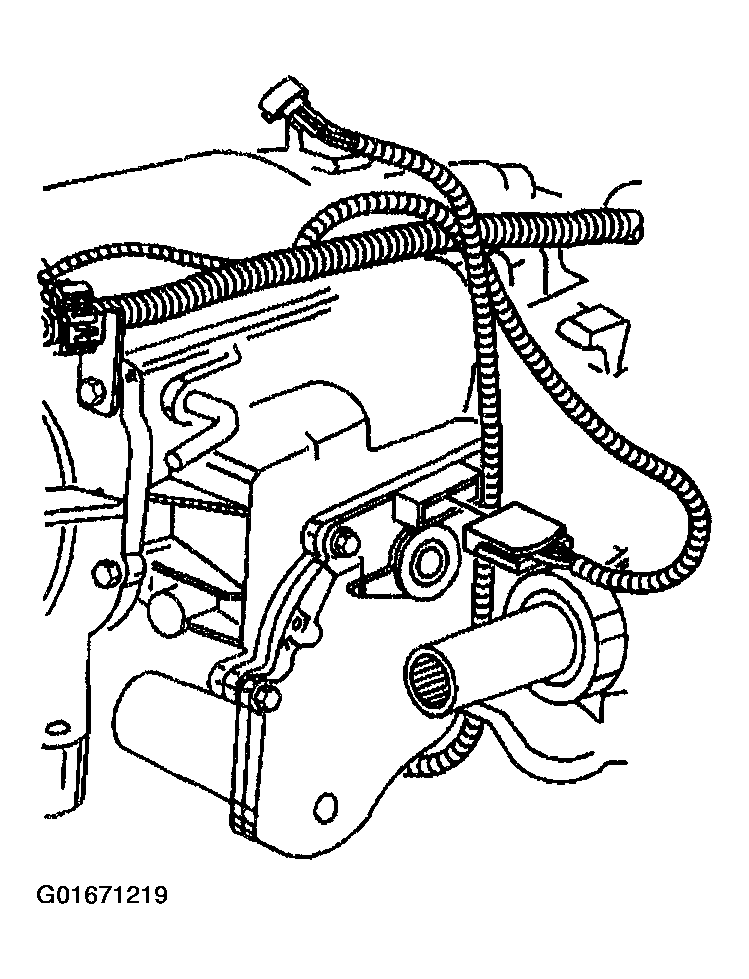

    Fig 2: Removing Motor/Encoder Electrical Connector
    G01671219Courtesy of GENERAL MOTORS CORP.
  4. Remove the motor/encoder mounting bolts.
  5. Remove the motor/encoder assembly.
  6. Remove the motor/encoder gasket.

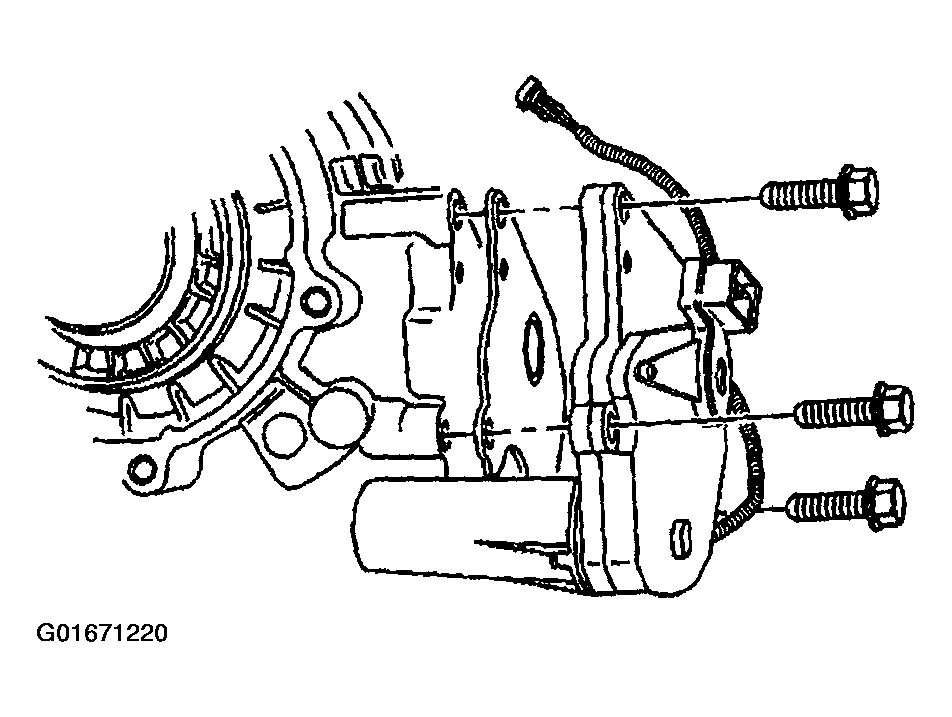

    Fig 3: Removing Motor/Encoder Mounting Bolts And Assembly
    G01671220Courtesy of GENERAL MOTORS CORP.
