Installation Procedure

WARNING: This page is about a different variant/trim than selected.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the transfer case drain plug.

    Tighten

    Tighten the transfer case drain plug to 20 N.m (15 lb ft).

  2. Fill the transfer case with the proper amount of approved fluid. Refer to Capacities - Approximate Fluid .

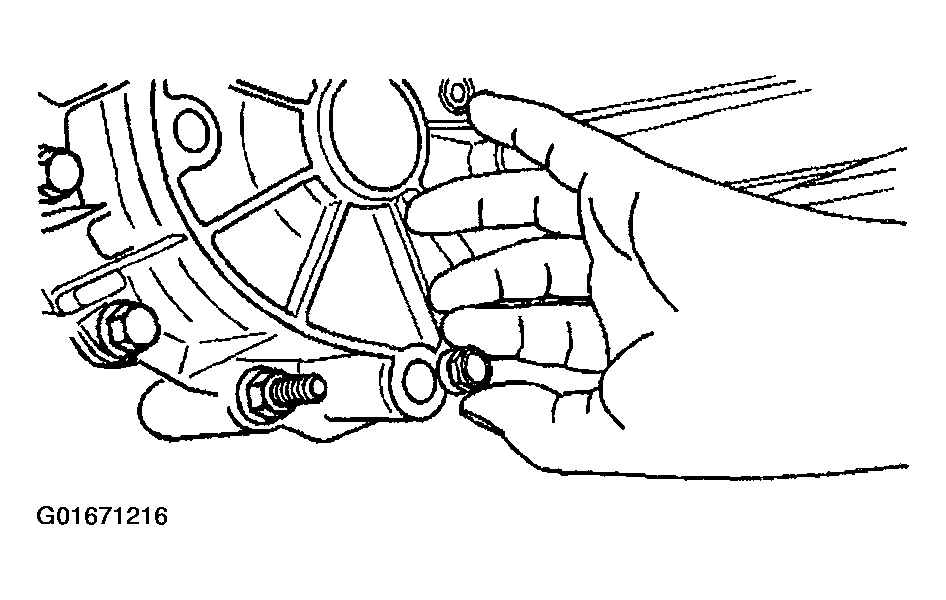

    Fig 1: Installing Transfer Case Drain Plug
    G01671216Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the transfer case fill plug.

    Tighten

    Tighten the oil fill plug to 20 N.m (15 lb ft).

  4. Install the transfer case shield to the vehicle. Refer to Transfer Case Shield Replacement .
  5. Lower the vehicle. Refer to LIFTING & JACKING THE VEHICLE in General Information.
    Fig 2: Installing Transfer Case Fill Plug
    G01671217Courtesy of GENERAL MOTORS CORP.
