Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Install the new gasket to the transfer case adapter with the tab facing upward.
Important: The following service procedure should be performed with the aid of another technician.
Install the transfer case to the transfer case adapter.

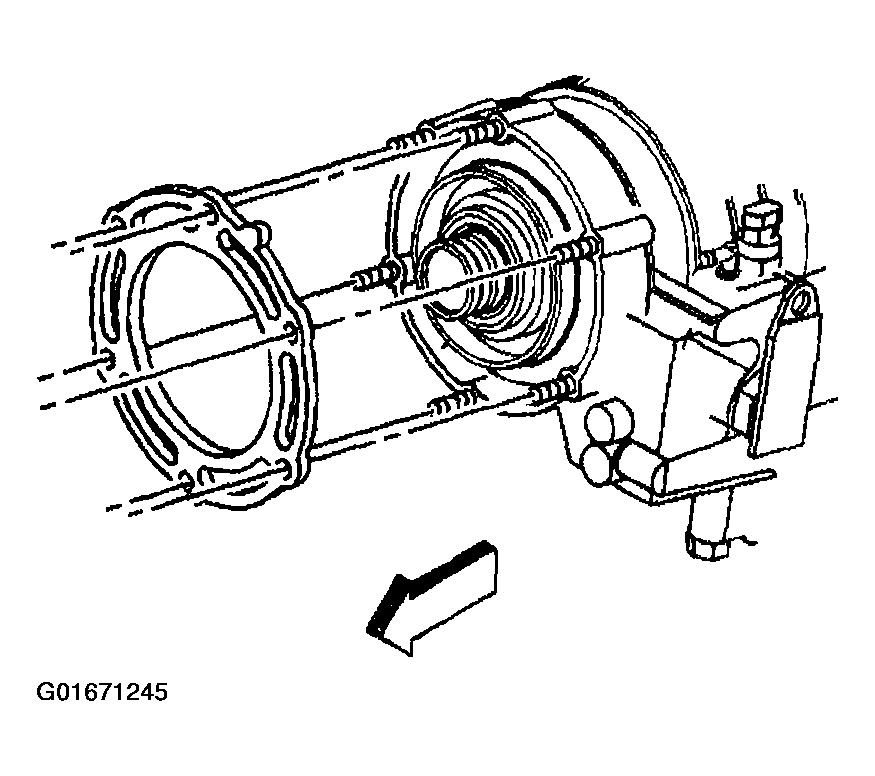

Fig 1: Installing New Gasket To Transfer Case
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the transfer case retaining nuts on the transfer case mounting studs.
Tighten

Tighten the transfer case retaining nuts to 55 N.m (40 lb ft).

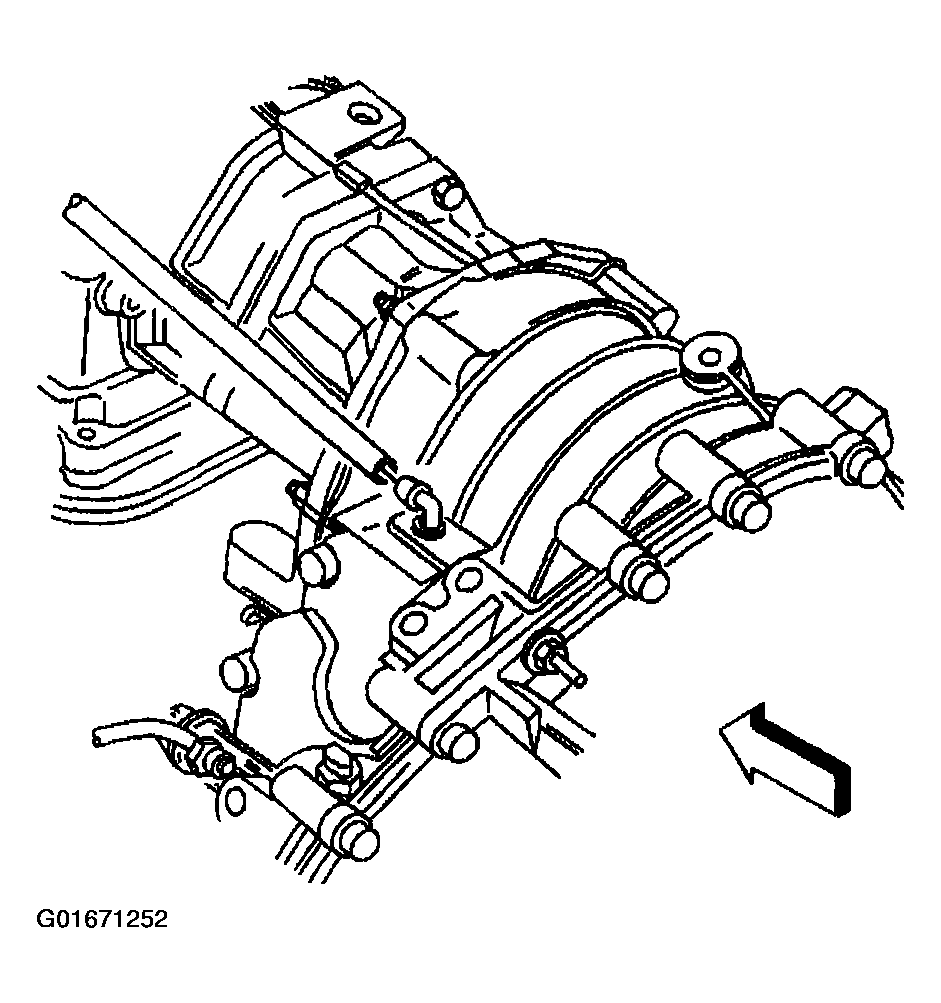

Fig 2: Installing Transfer Case Retaining Nuts On Transfer Case Mounting Studs
Courtesy of GENERAL MOTORS CORP.
Install the transmission mount to the transfer case adapter.
Tighten

Tighten the transmission mount bolts to 47 N.m (35 lb ft).

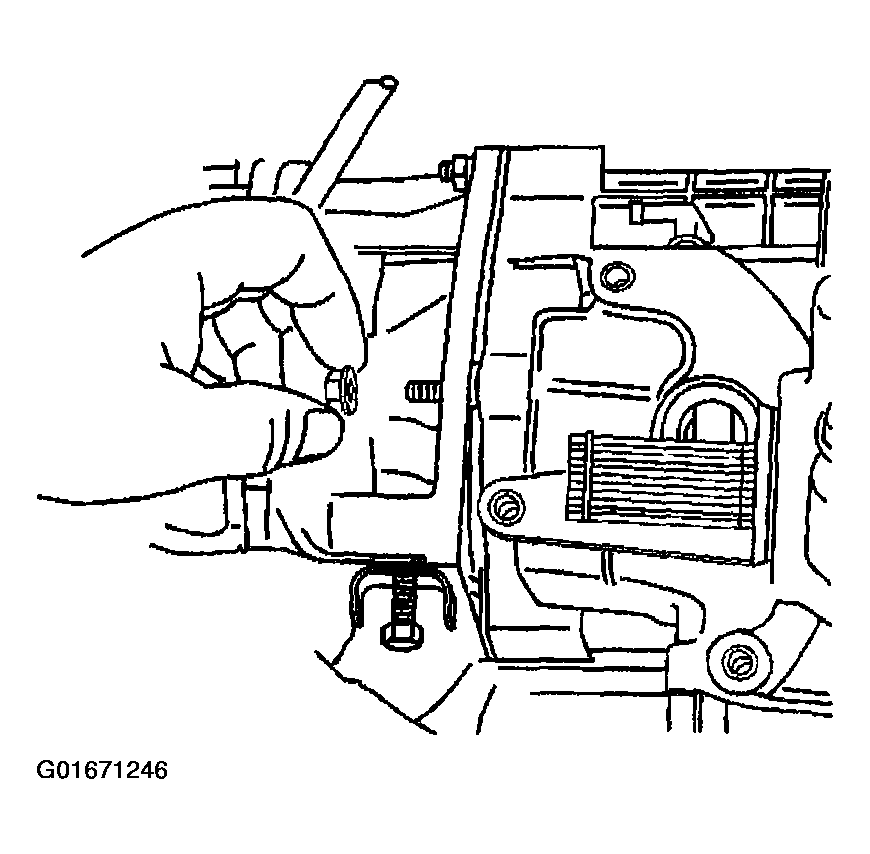

Fig 3: Installing Transmission Mount To Transfer Case Adapter
Courtesy of GENERAL MOTORS CORP.
Install the transmission support assembly. Refer toTRANSMISSION SUPPORT in Transmission.

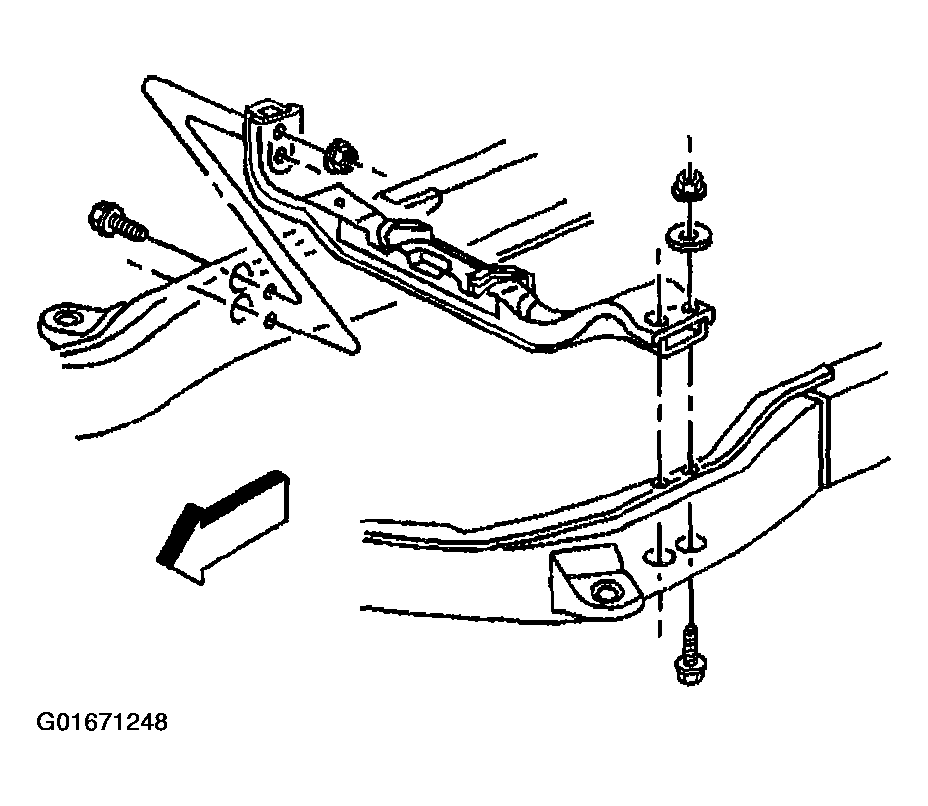

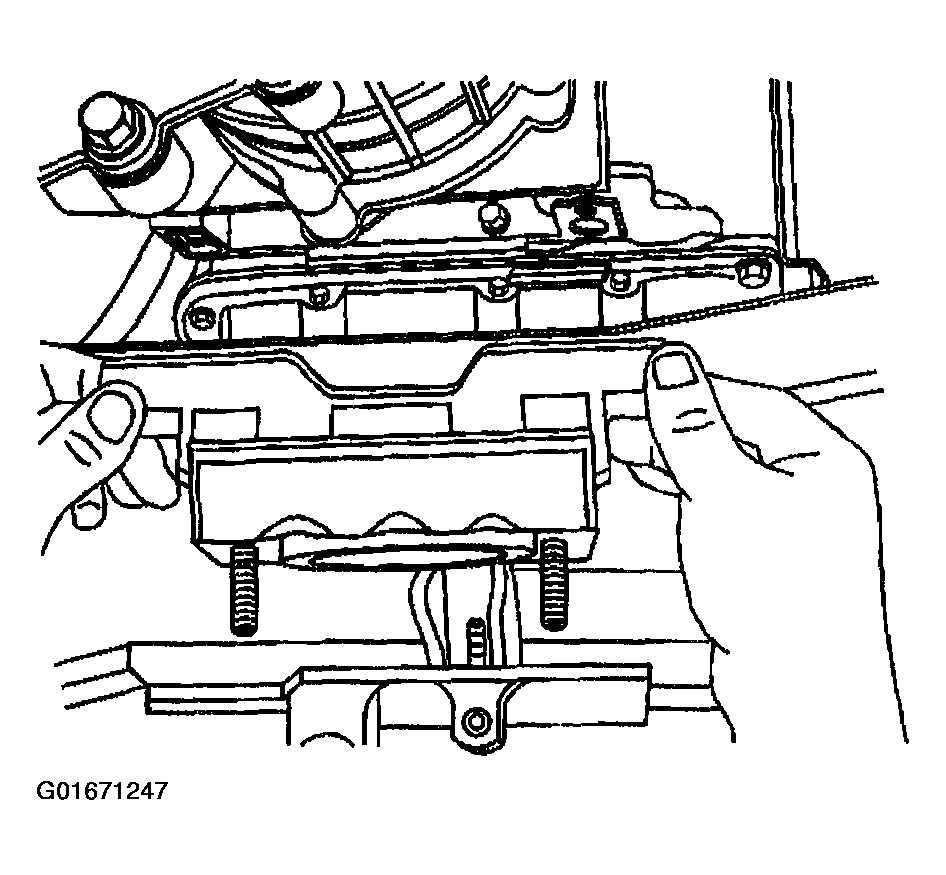

Fig 4: Installing Transmission Support Assembly
Courtesy of GENERAL MOTORS CORP.
Install the transmission mount retaining nuts.
Tighten

Tighten the transmission mount retaining nuts and bolts to 40 N.m (30 lb ft).
Remove the transmission jack from the transmission.

Fig 5: Installing Transmission Mount Retaining Nuts
Courtesy of GENERAL MOTORS CORP.
Install the motor/encoder electrical connector.

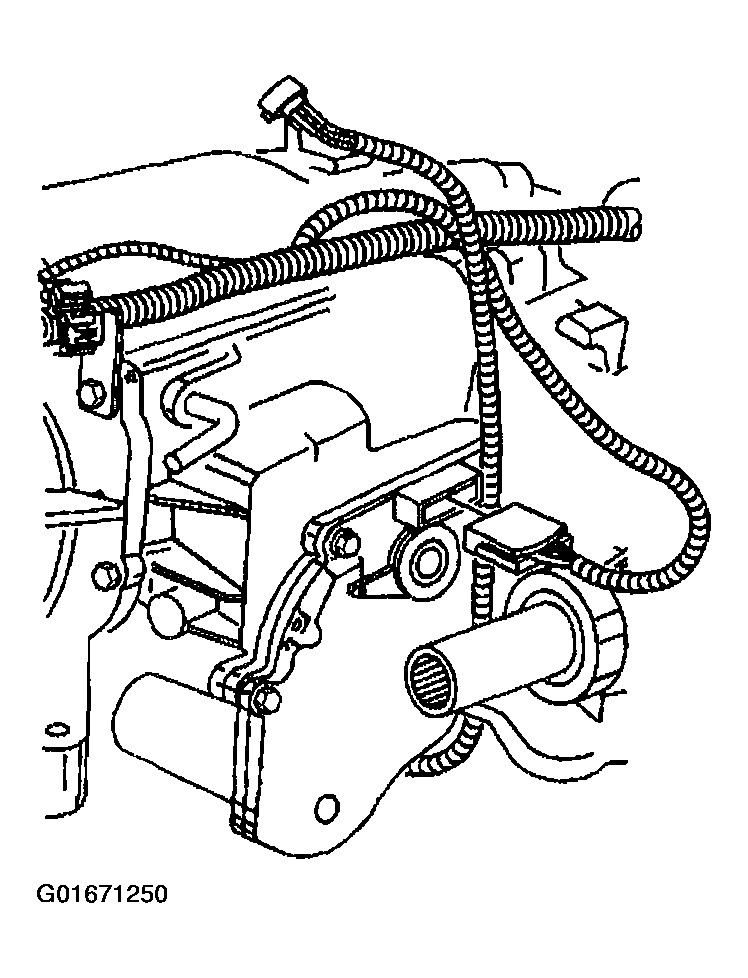

Fig 6: Installing Motor/Encoder Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Install the electrical wiring harness to the transfer case.

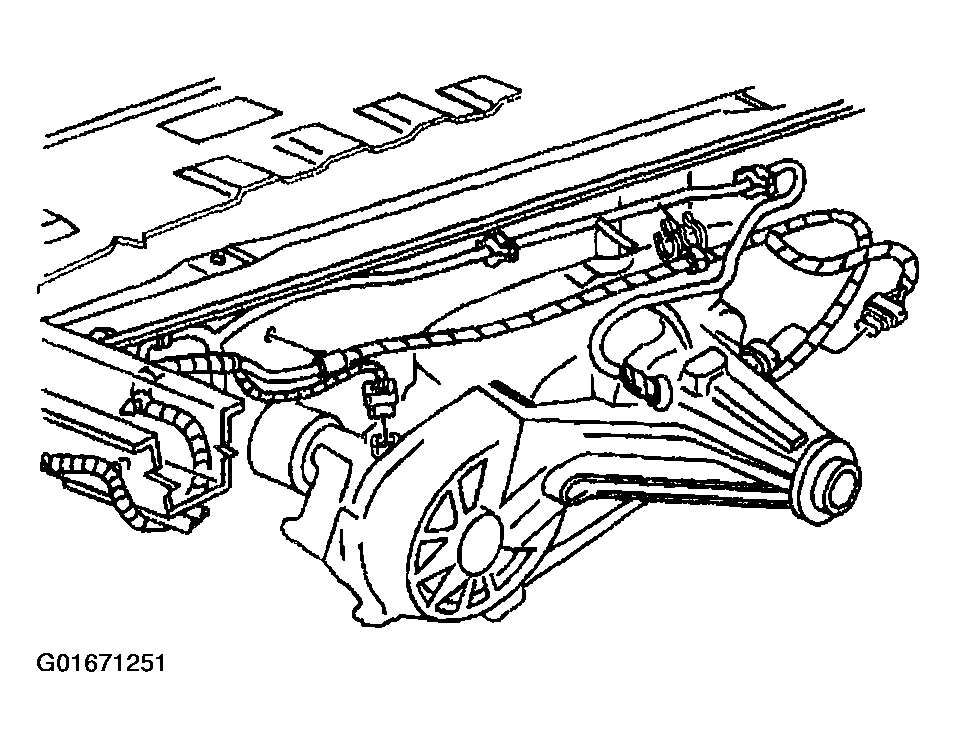

Fig 7: Installing Electrical Wiring Harness To Transfer Case
Courtesy of GENERAL MOTORS CORP.
Install the vent hose to the transfer case.

Fig 8: Installing Vent Hose To Transfer Case
Courtesy of GENERAL MOTORS CORP.
Install the transfer case brace left side shown, if equipped.
Install the transfer case brace bolts at the transfer case.
Tighten

Tighten the transfer case to engine bolts to 60 N.m (44 lb ft).
Install the transfer case brace bolt at the engine.
Tighten

Tighten the transfer case brace bolt to 47 N.m (35 lb ft).
Install the rear propeller shaft in the vehicle.
- For vehicles equipped with the one piece propeller shaft, refer to PROPELLER SHAFT REPLACEMENT - ONE PIECE in Propeller Shaft.
- For vehicles equipped with the two piece propeller shaft, refer to PROPELLER SHAFT REPLACEMENT - TWO PIECE in Propeller Shaft.

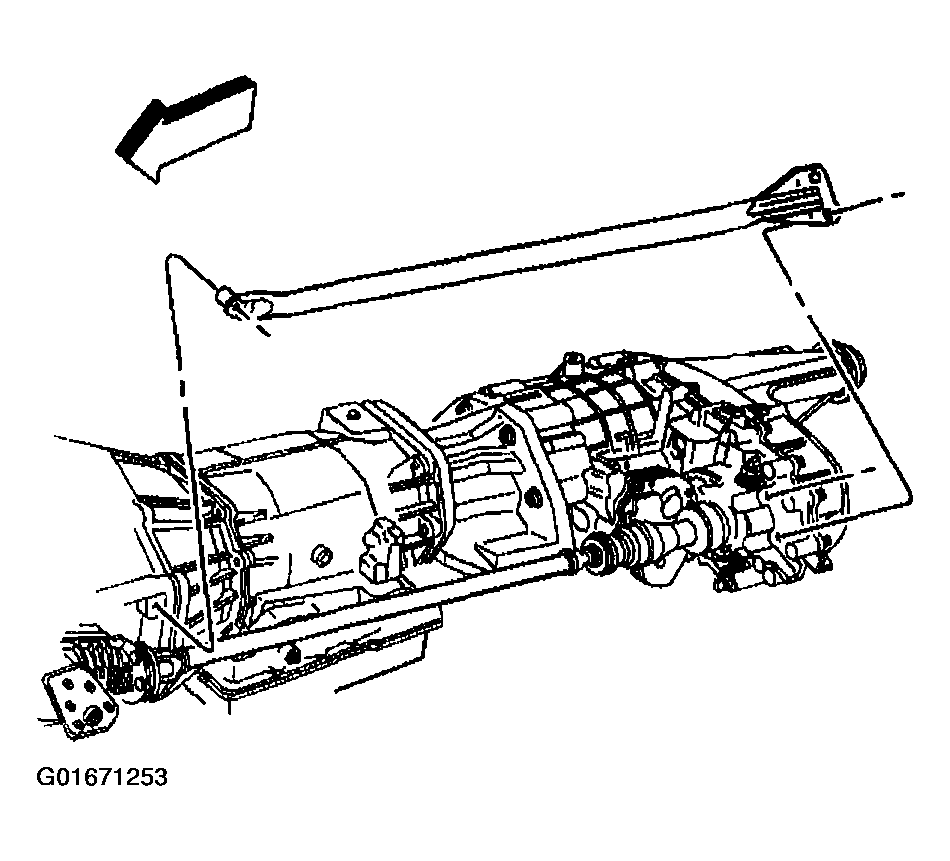

  Fig 9: Installing Transfer Case Brace Left Side
  Courtesy of GENERAL MOTORS CORP.
Install the front propeller shaft in the vehicle. Refer to PROPELLER SHAFT REPLACEMENT - FRONT in Propeller Shaft.
Fill the transfer case with the approved fluid. Refer to Transfer Case Fluid Replacement .
Install the transfer case shield to the vehicle. Refer to Transfer Case Shield Replacement .
Lower the vehicle. Refer to LIFTING & JACKING THE VEHICLE in General Information.
