Removal Procedure

Important:  The following service procedure is for vehicle equipped with AUTOMATIC TRANSMISSIONS ONLY. Vehicle equipped with manual transmissions are NOT equipped with a transfer case adapters.

1. Remove the transfer case assembly. Refer to Transfer Case Assembly Replacement .
2. Using a suitable jack stand, support the transmission assembly.

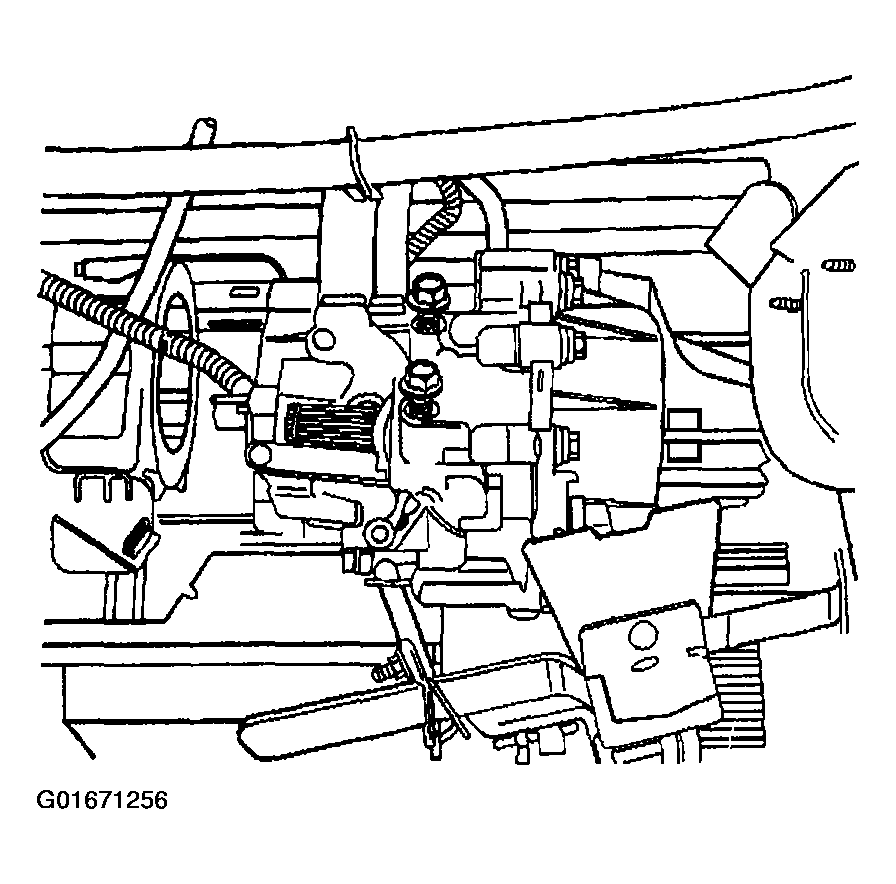

   Fig 1: Removing Transfer Case Assembly

   Courtesy of GENERAL MOTORS CORP.
3. Remove the transfer case adapter mounting bolts.
4. Remove the transfer case adapter.
5. Remove the transfer case adapter seal.

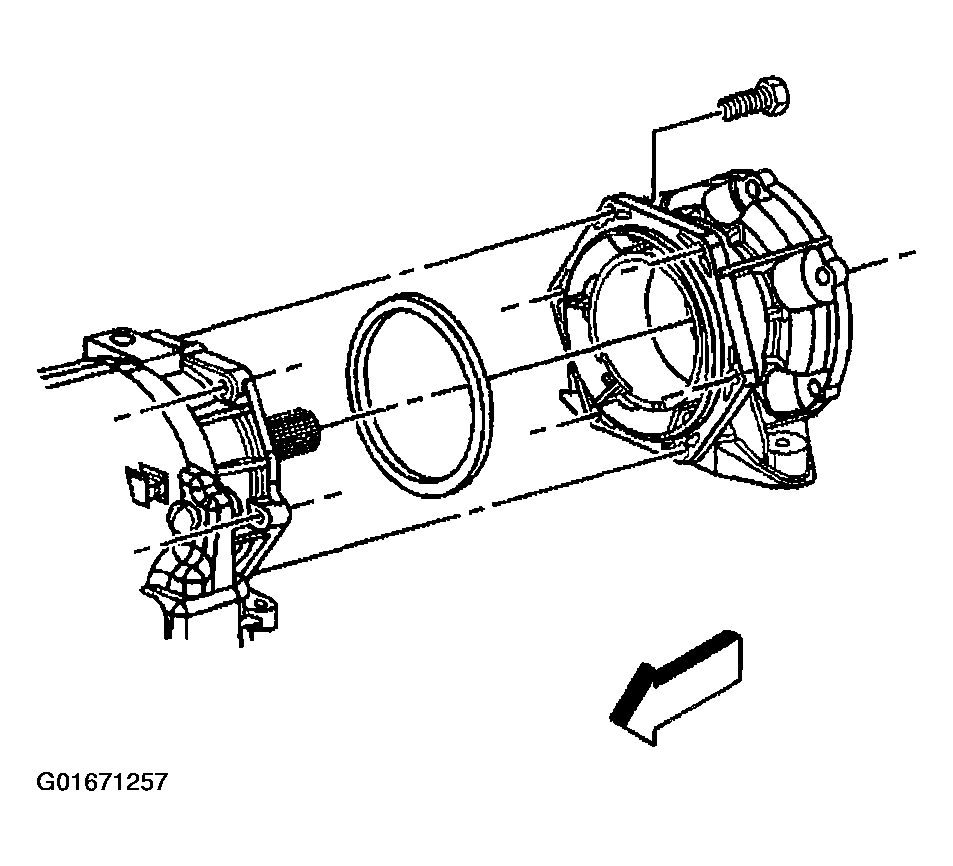

   Fig 2: Removing Transfer Case Adapter And Seal

   Courtesy of GENERAL MOTORS CORP.
6. Remove the transfer case gasket.

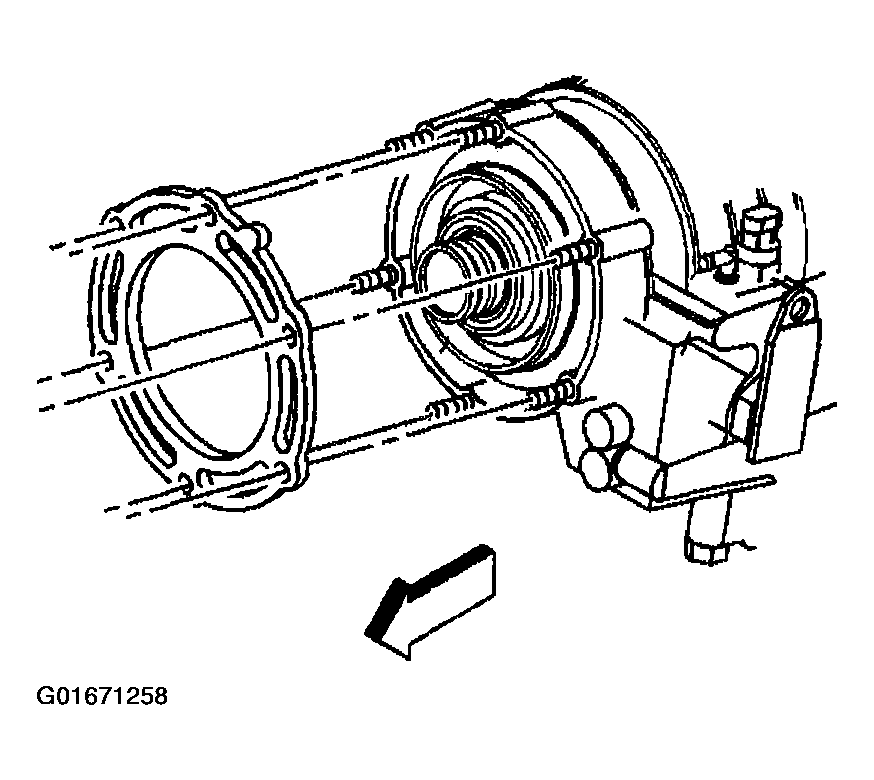

   Fig 3: Removing Transfer Case Gasket

   Courtesy of GENERAL MOTORS CORP.
