Test Description

WARNING: This page is about a different variant/trim than selected.

The numbers below refer to the step numbers on the diagnostic table.

2. Tests the functionality of the Mode/Range buttons.

3. Tests the modules ability to operate the transfer case modes.

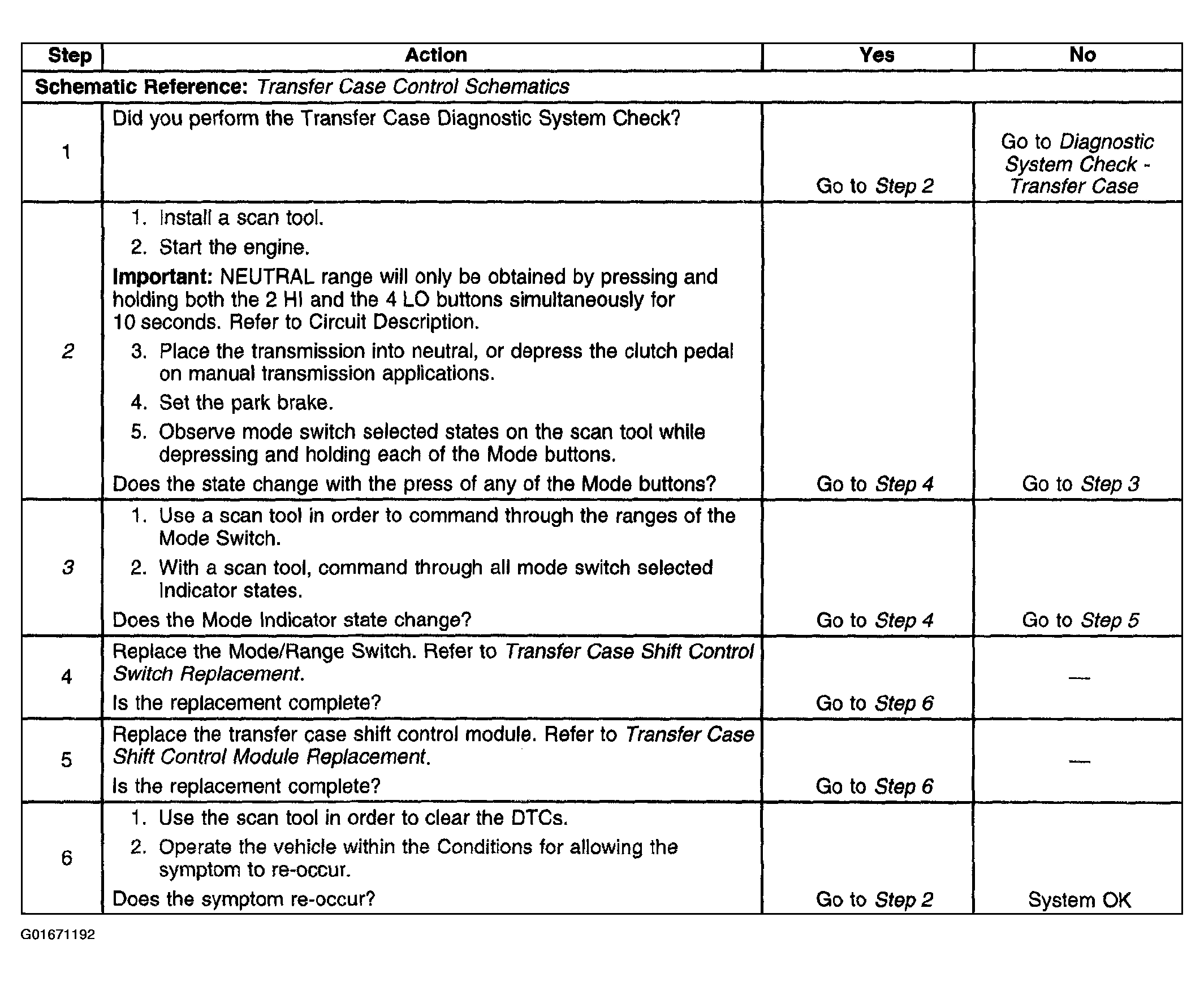

Fig 1: Transfer Case Will Not Complete a Mode or Range Shift

Courtesy of GENERAL MOTORS CORP.
