Test Description
WARNING: This page is about a different variant/trim than selected.

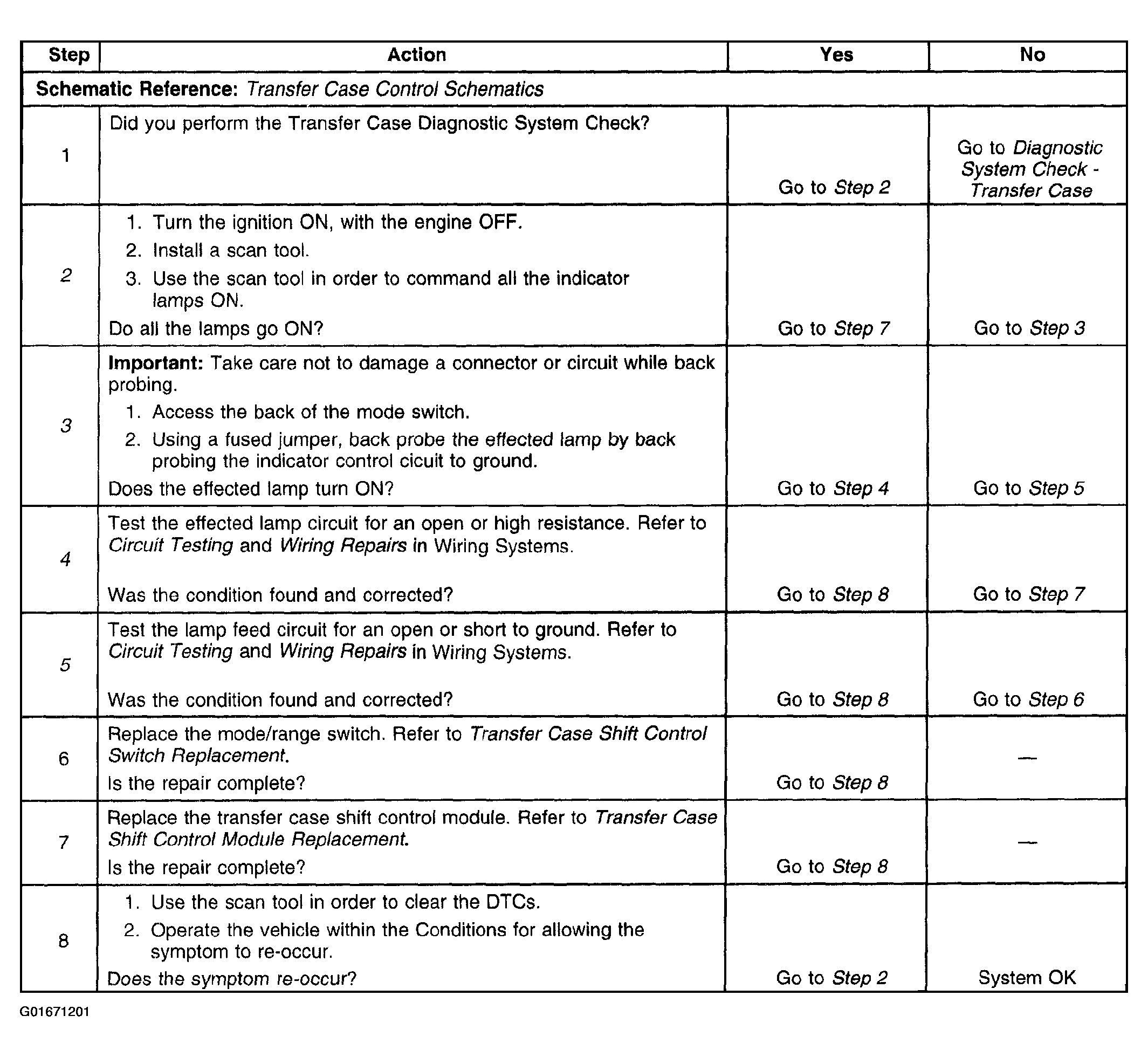

The numbers below refer to the step numbers on the diagnostic table.
2. Tests the transfer case electrical control of the lamp circuits.
3. Helps determine module failures.
4. Tests the effected lamp circuit for an open or high resistance.
5. Tests the lamp feed circuit for an open or short to ground.
