Test Description
WARNING: This page is about a different variant/trim than selected.

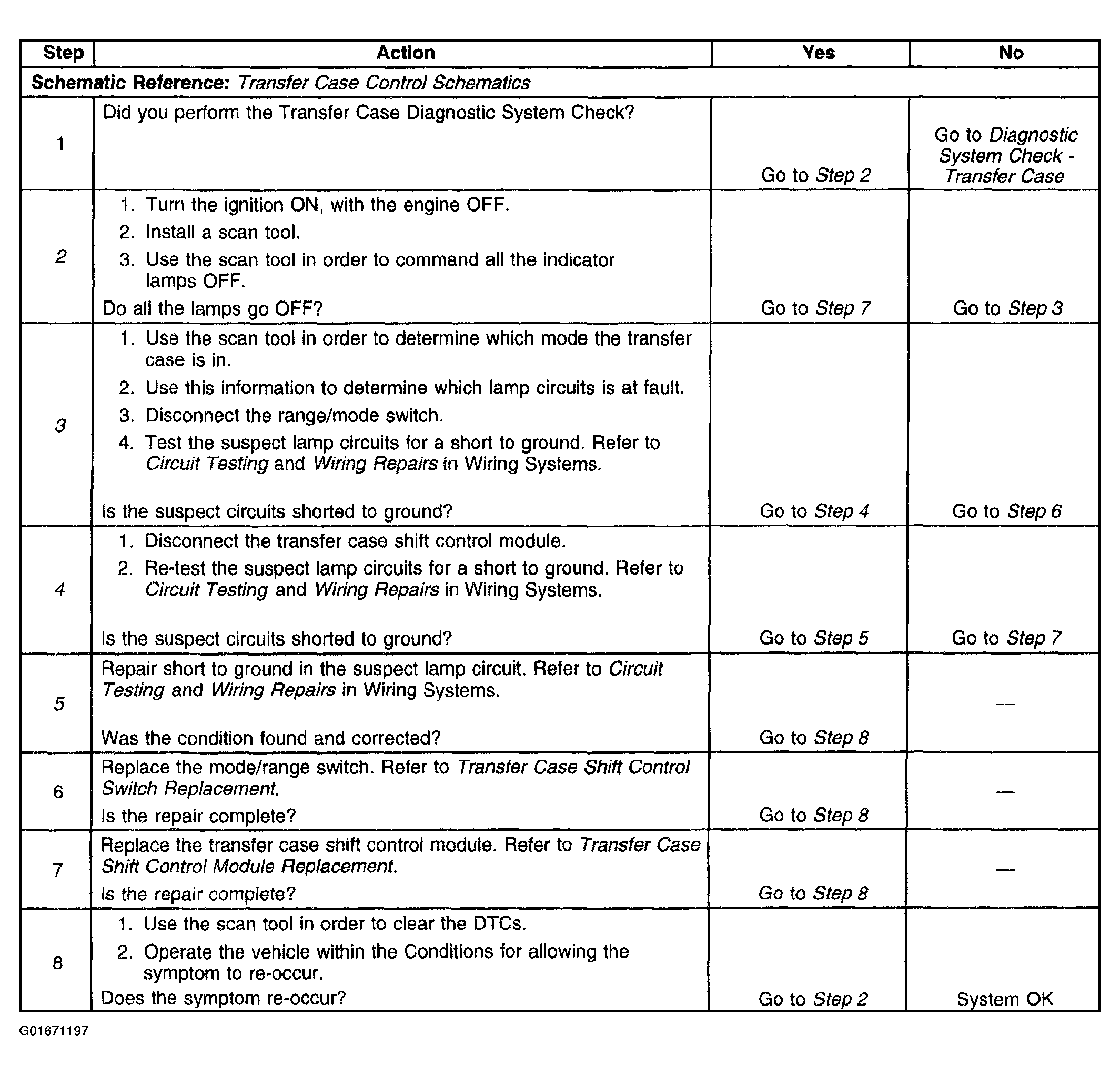

The numbers below refer to the step numbers on the diagnostic table.
2. Tests the transfer case electrical control of the lamp circuits.
3. Helps determine a short to ground in the suspect lamp circuits.
4. Test the suspect lamp circuits for a short to ground.
5. Repair short to ground in the suspect lamp circuit.
