Test Description
WARNING: This page is about a different variant/trim than selected.

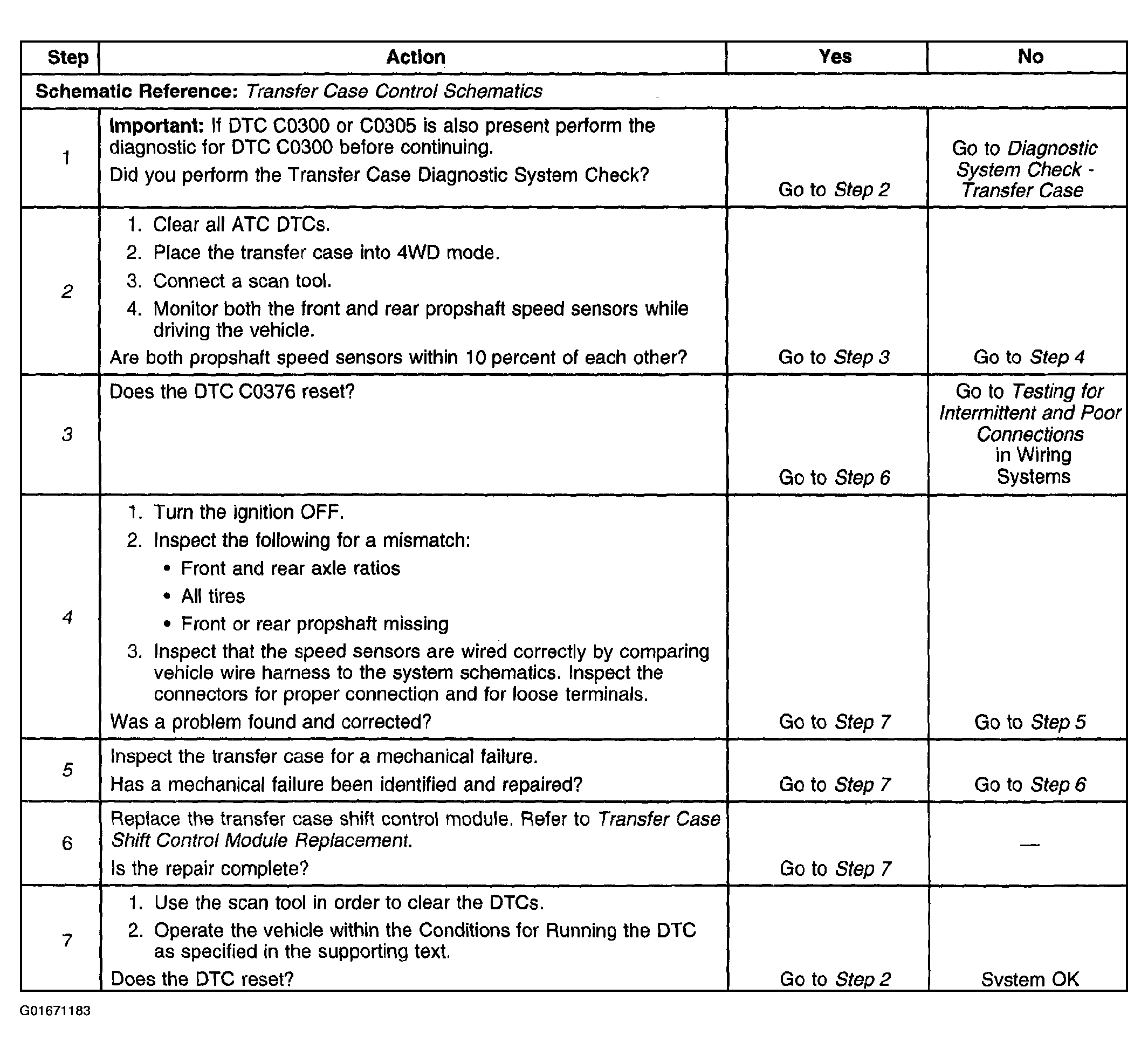

The numbers below refer to the step numbers on the diagnostic table.
2. Helps determine if the transfer case speed sensors are working properly.
3. Tests to see if the DTC will reset.
4. Inspects for mismatches and whether speed sensors are wired correctly.
5. Inspects the transfer case for mechanical failures.
