Test Description
WARNING: This page is about a different variant/trim than selected.

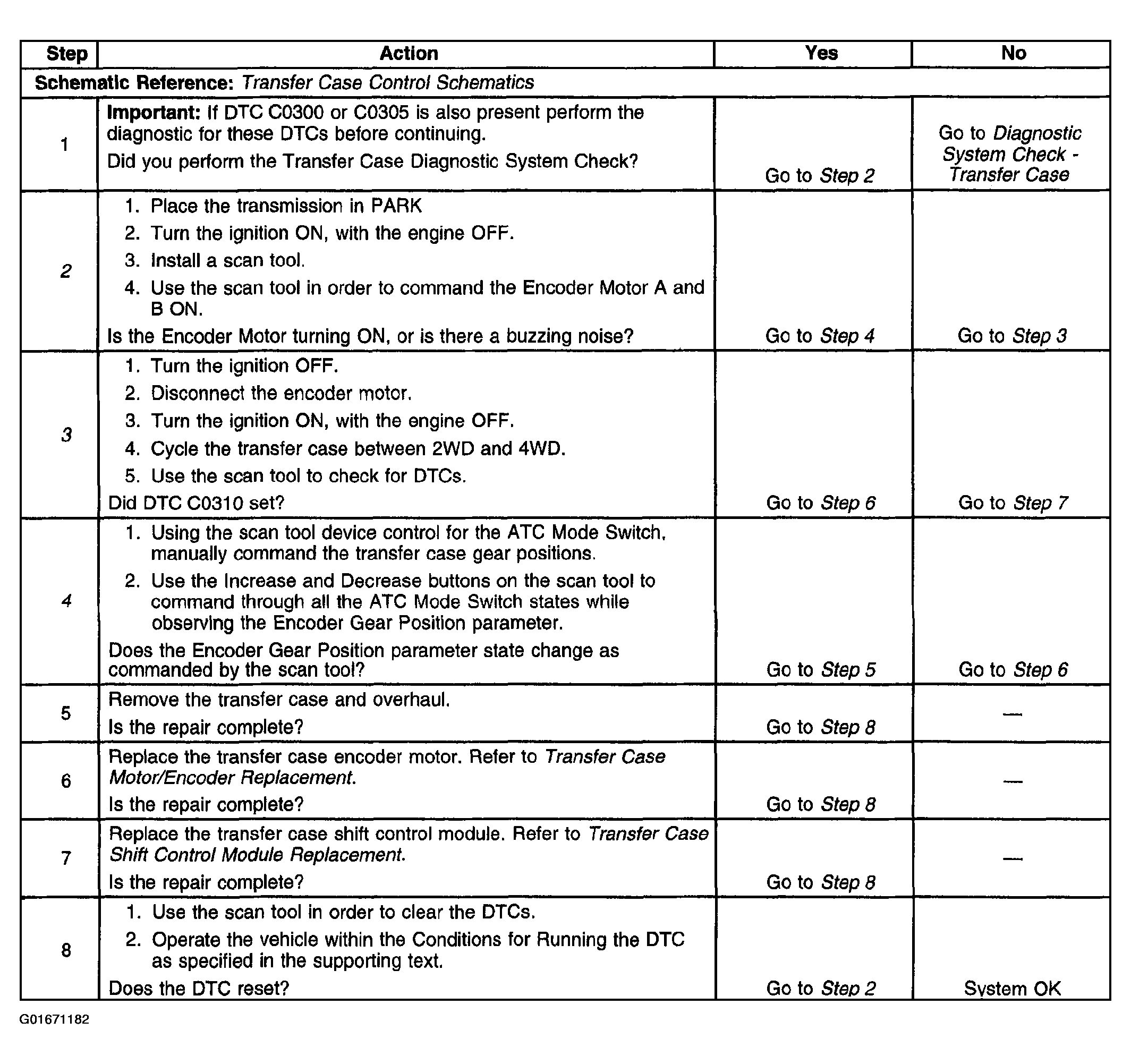

The numbers below refer to the step numbers on the diagnostic table.
2. Helps determine if the DTC set due to a mechanical or an electrical fault.
3. Tests the integrity of the Motor Control circuit.
4. Determines whether the Encoder Motor is moving to the proper position.
