Test Description
WARNING: This page is about a different variant/trim than selected.

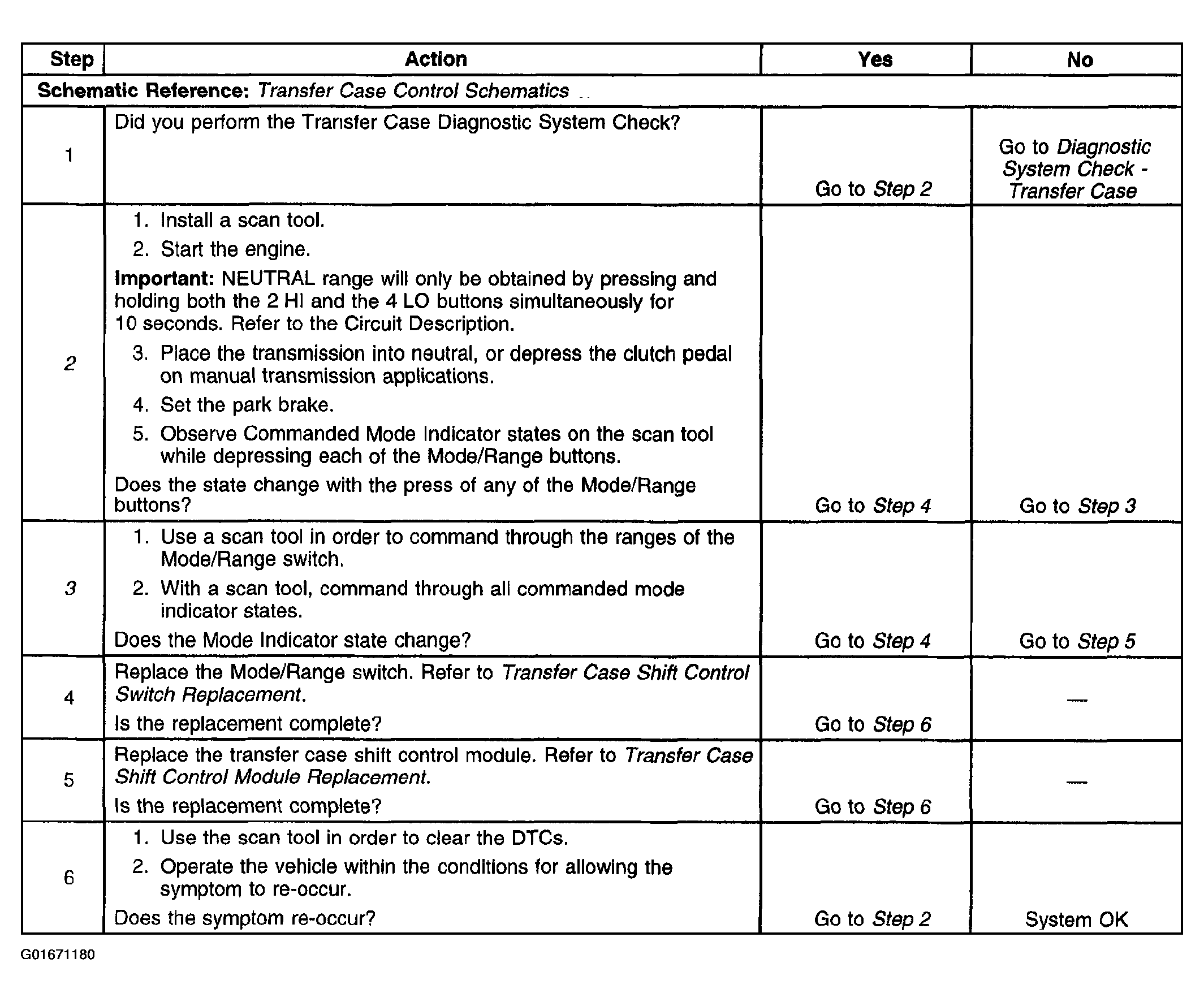

The numbers below refer to the step numbers on the diagnostic table.
2. Tests the functionality of the Mode/Range buttons.
3. Tests the modules ability to operate the transfer case modes.
Courtesy of GENERAL MOTORS CORP.
