Transfer Case Control Connector End Views

WARNING: This page is about a different variant/trim than selected.

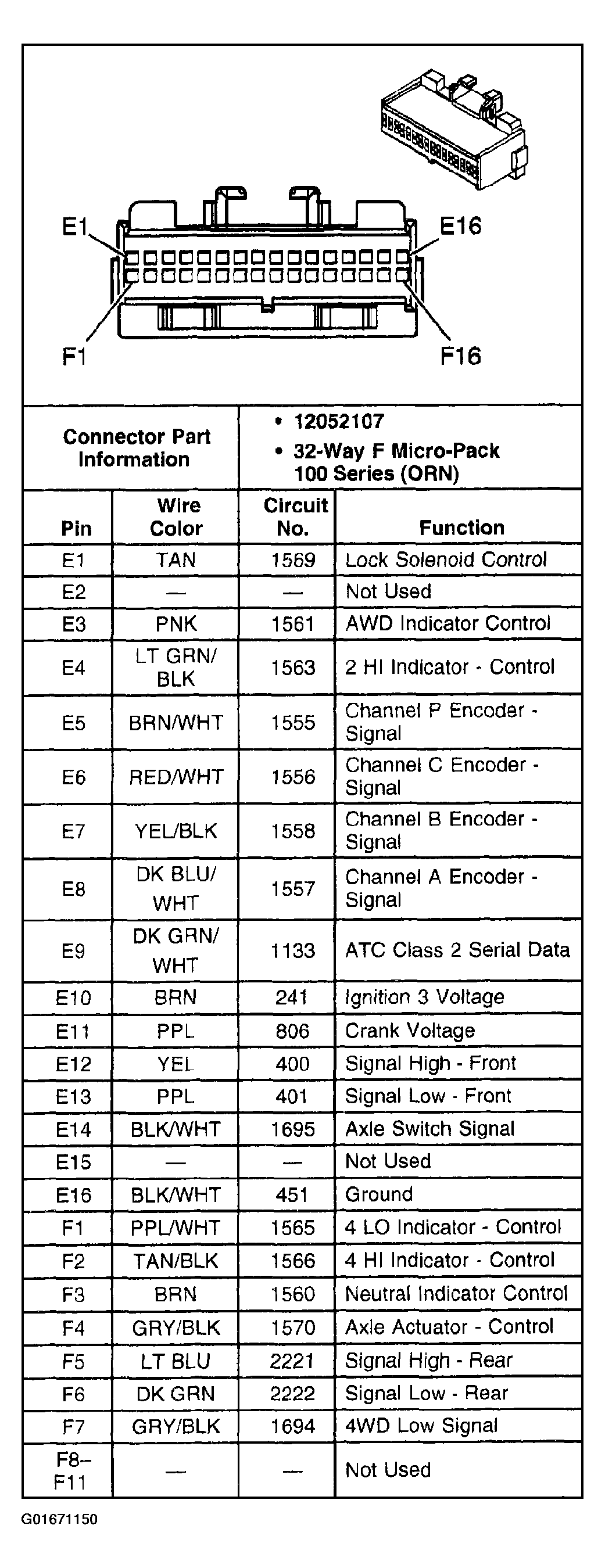

Fig 1: Transfer Case Shift Control Module Connector C1 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

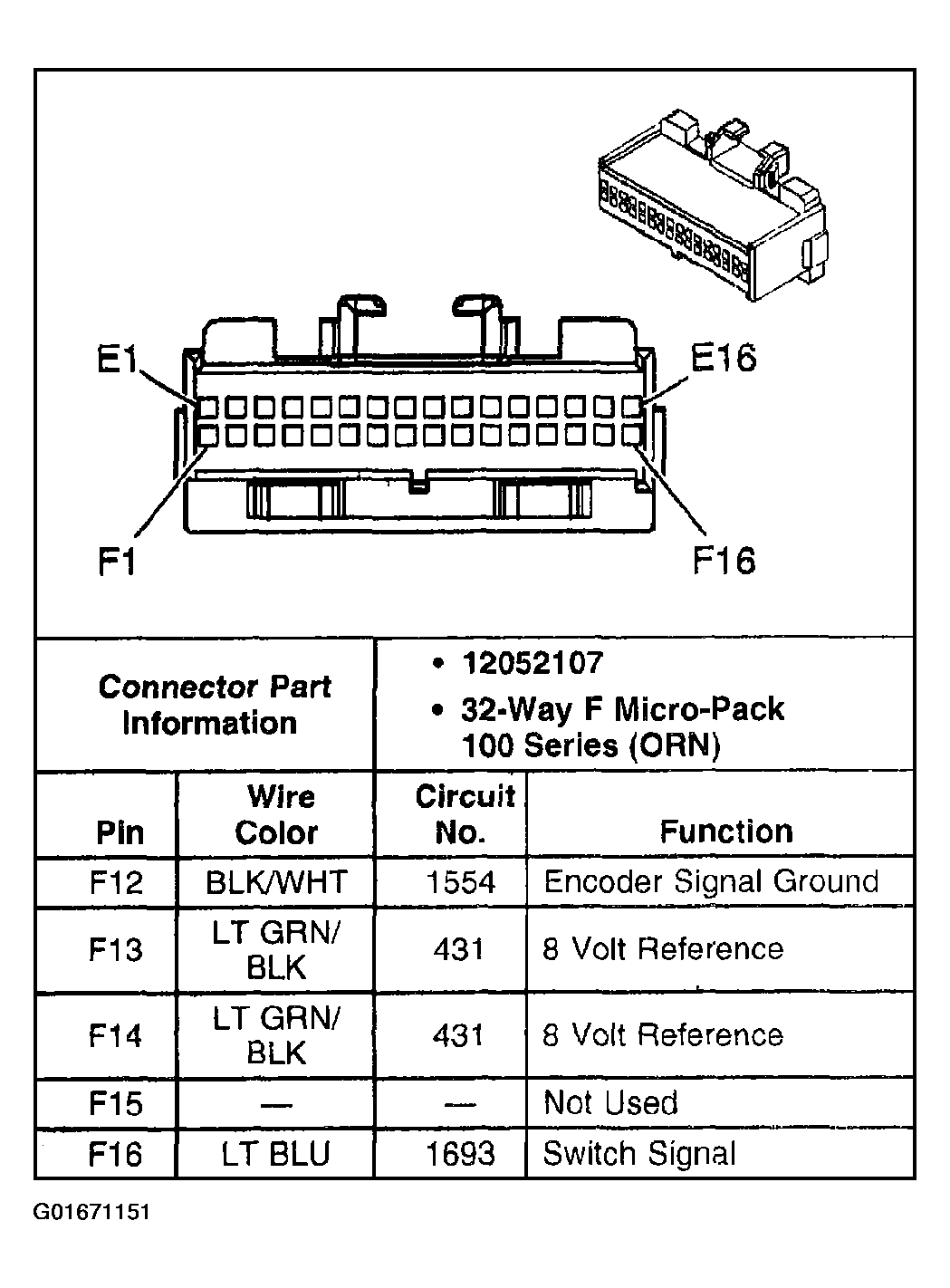

Fig 2: Transfer Case Shift Control Module Connector C1 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Transfer Case Shift Control Module Connector C2

Courtesy of GENERAL MOTORS CORP.

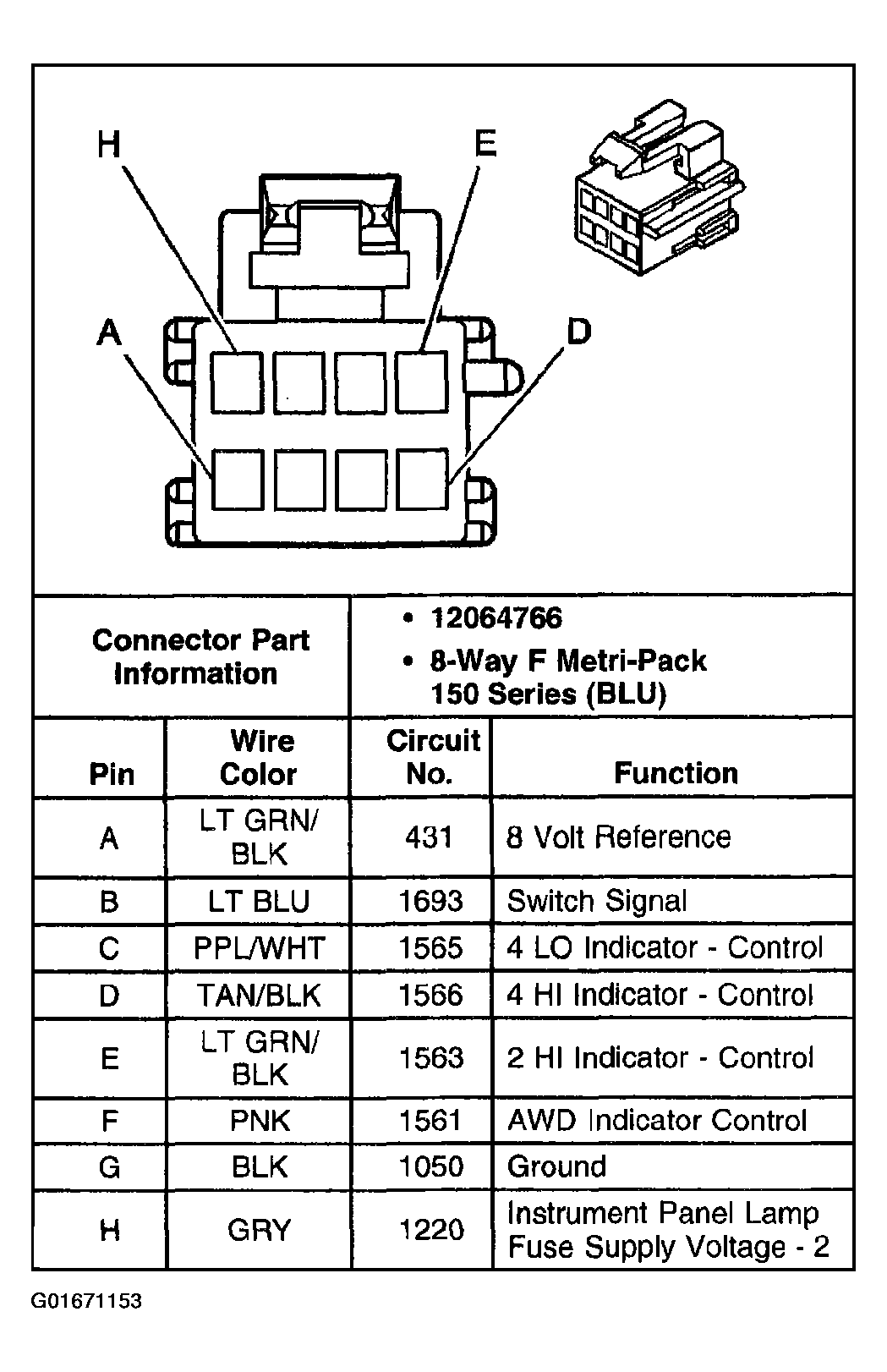

Fig 4: Transfer Case Shift Control Switch Connector C1

Courtesy of GENERAL MOTORS CORP.

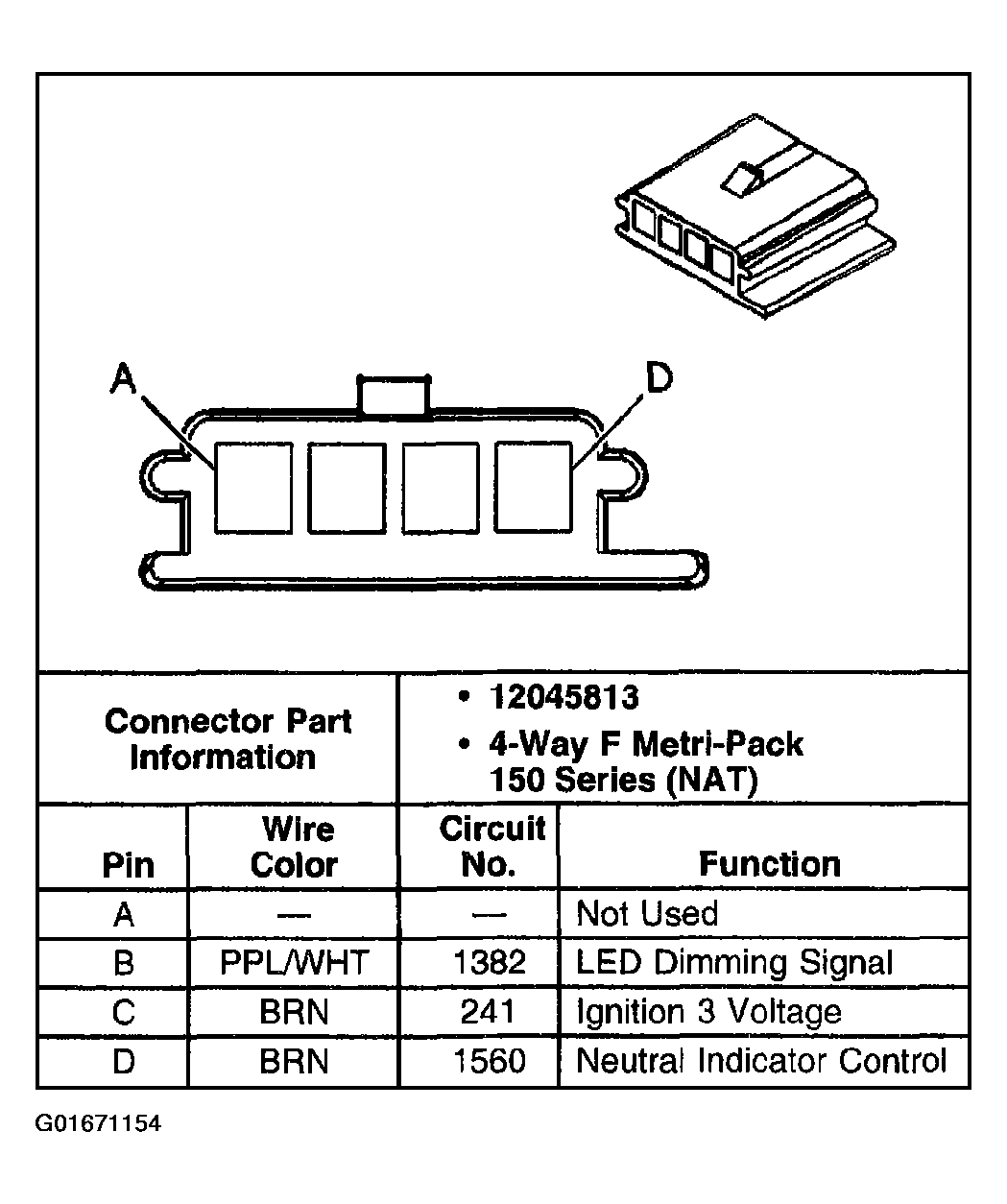

Fig 5: Transfer Case Shift Control Switch Connector C2

Courtesy of GENERAL MOTORS CORP.

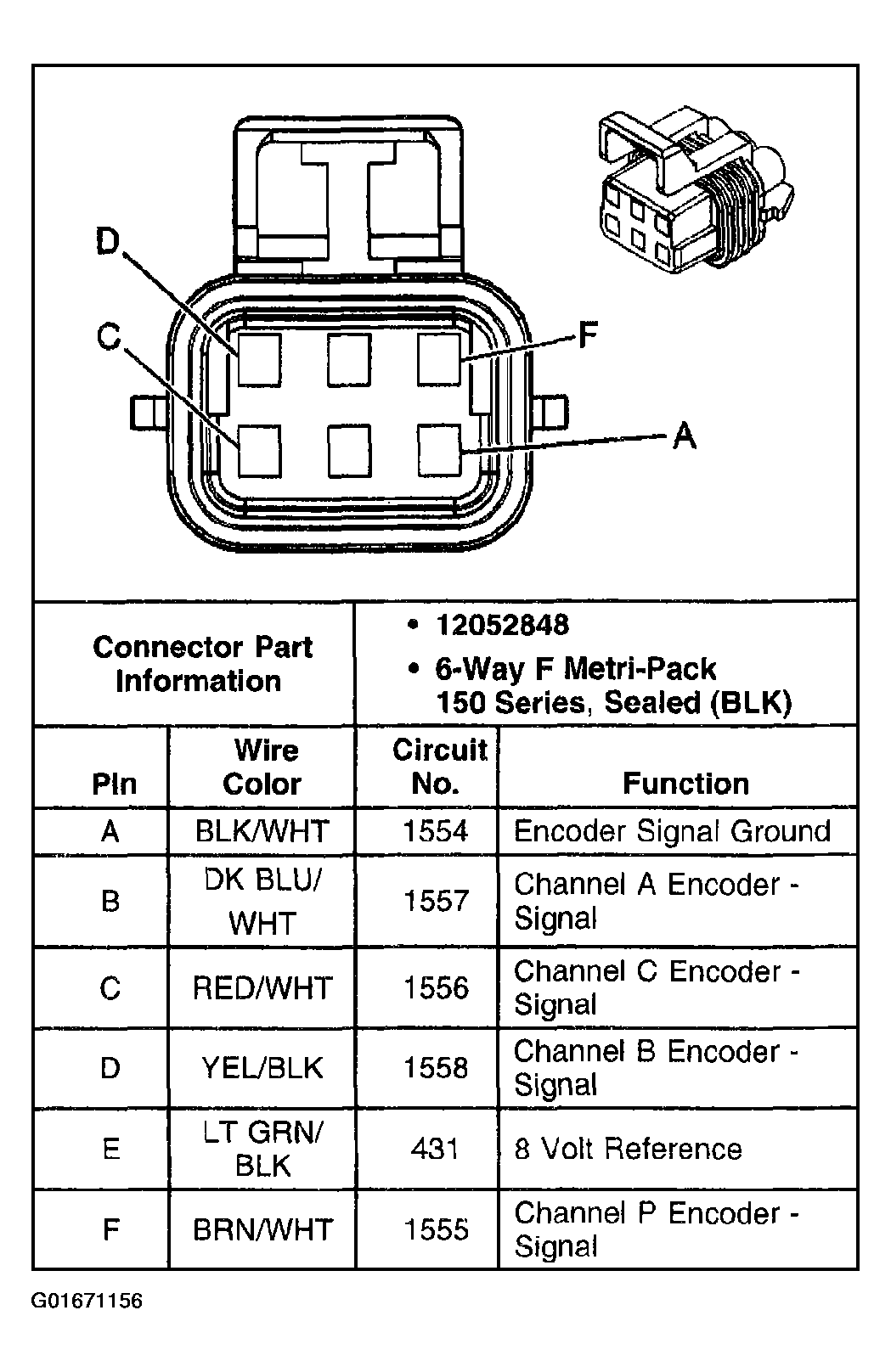

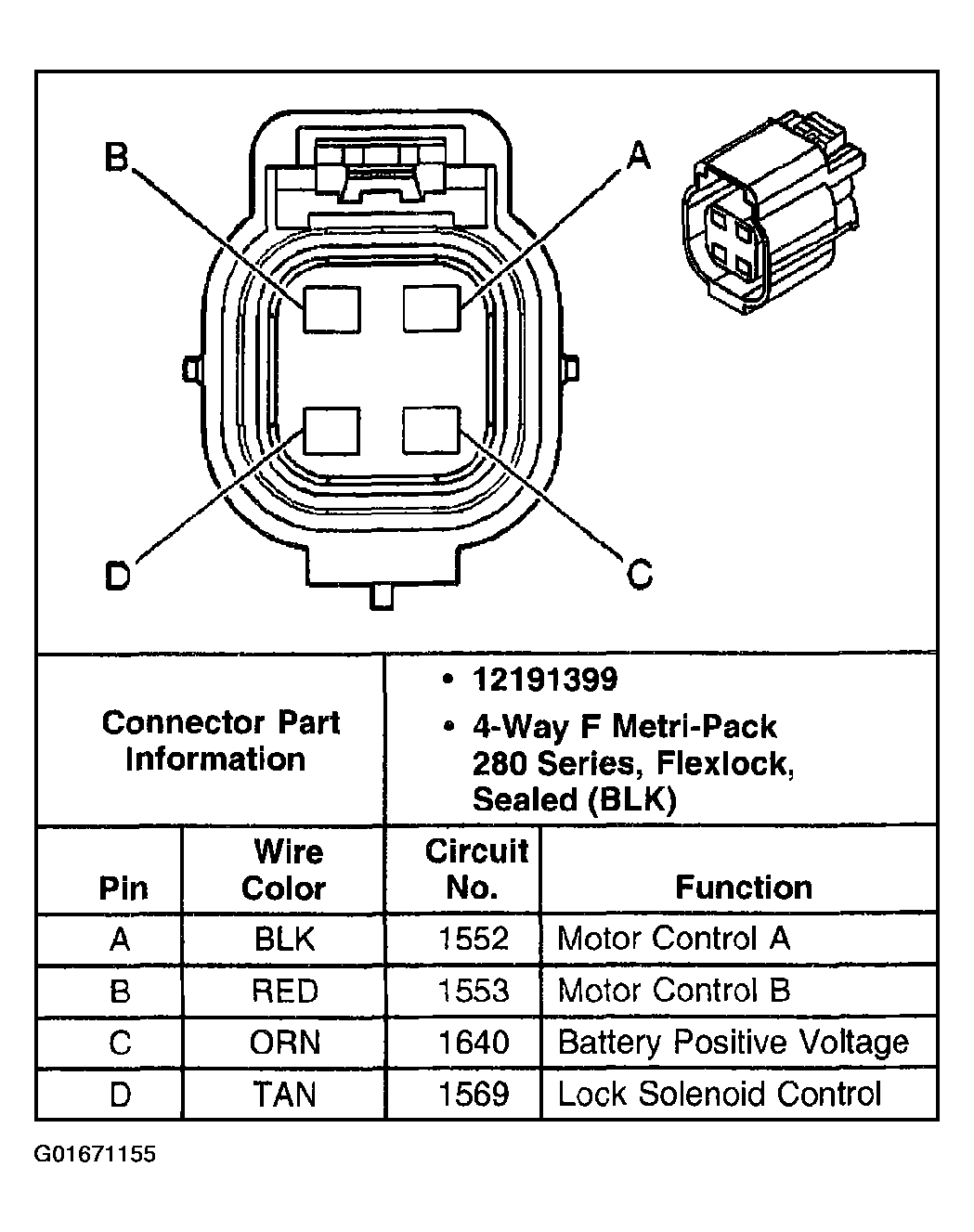

Fig 6: Transfer Case Encoder Motor Connector C1

Courtesy of GENERAL MOTORS CORP.

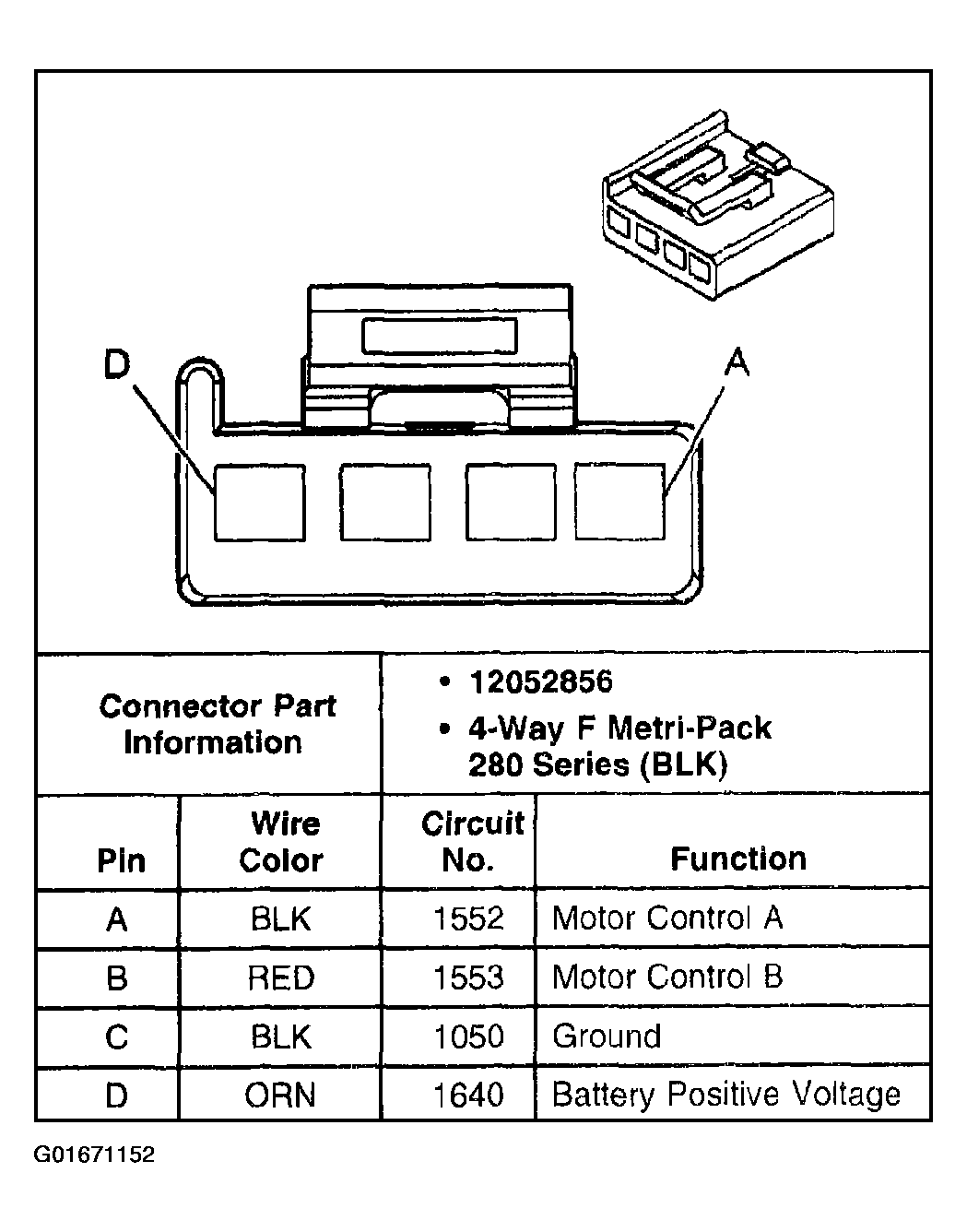

Fig 7: Transfer Case Encoder Motor Connector C2

Courtesy of GENERAL MOTORS CORP.

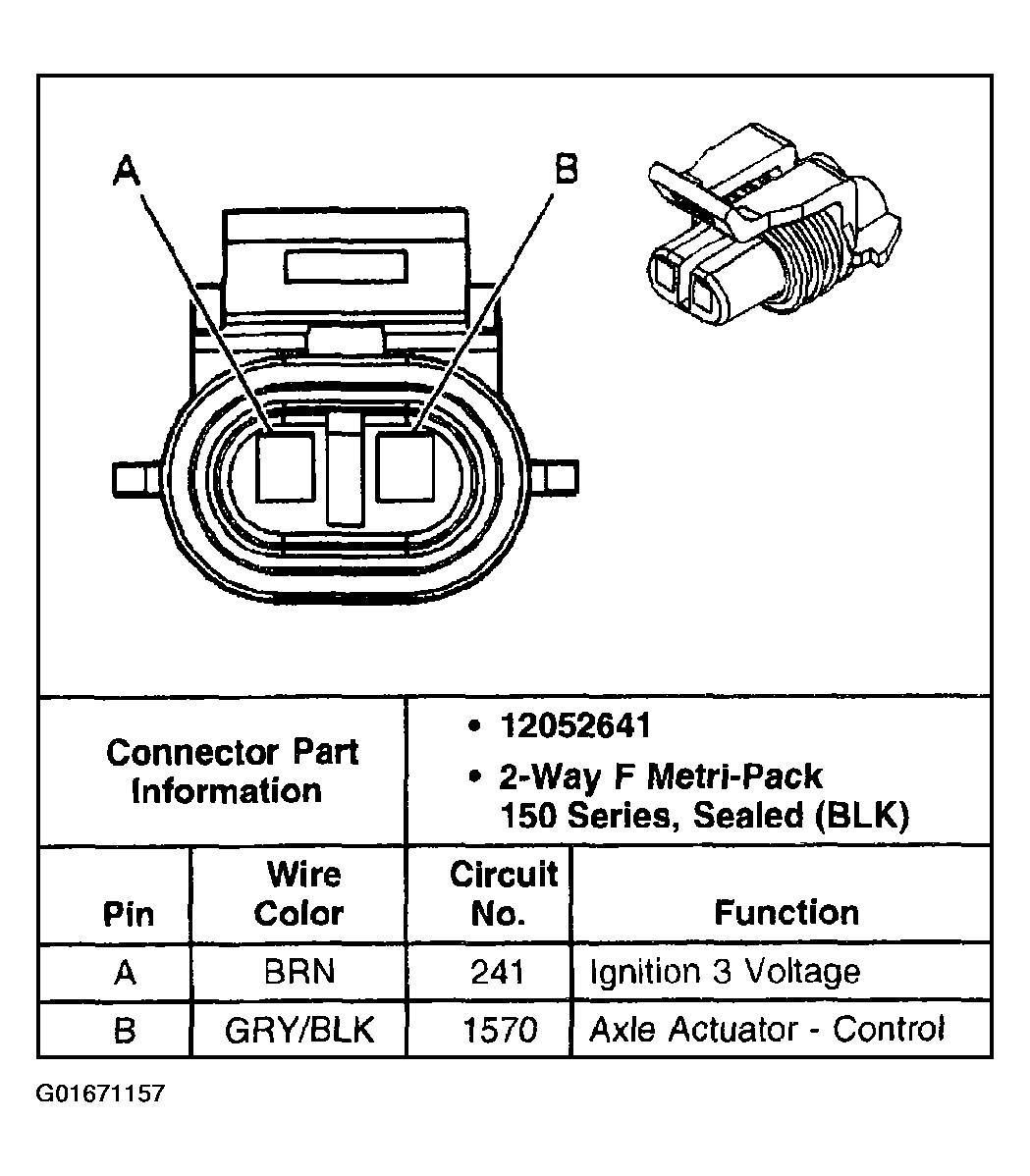

Fig 8: Front Axle Vacuum Solenoid

Courtesy of GENERAL MOTORS CORP.

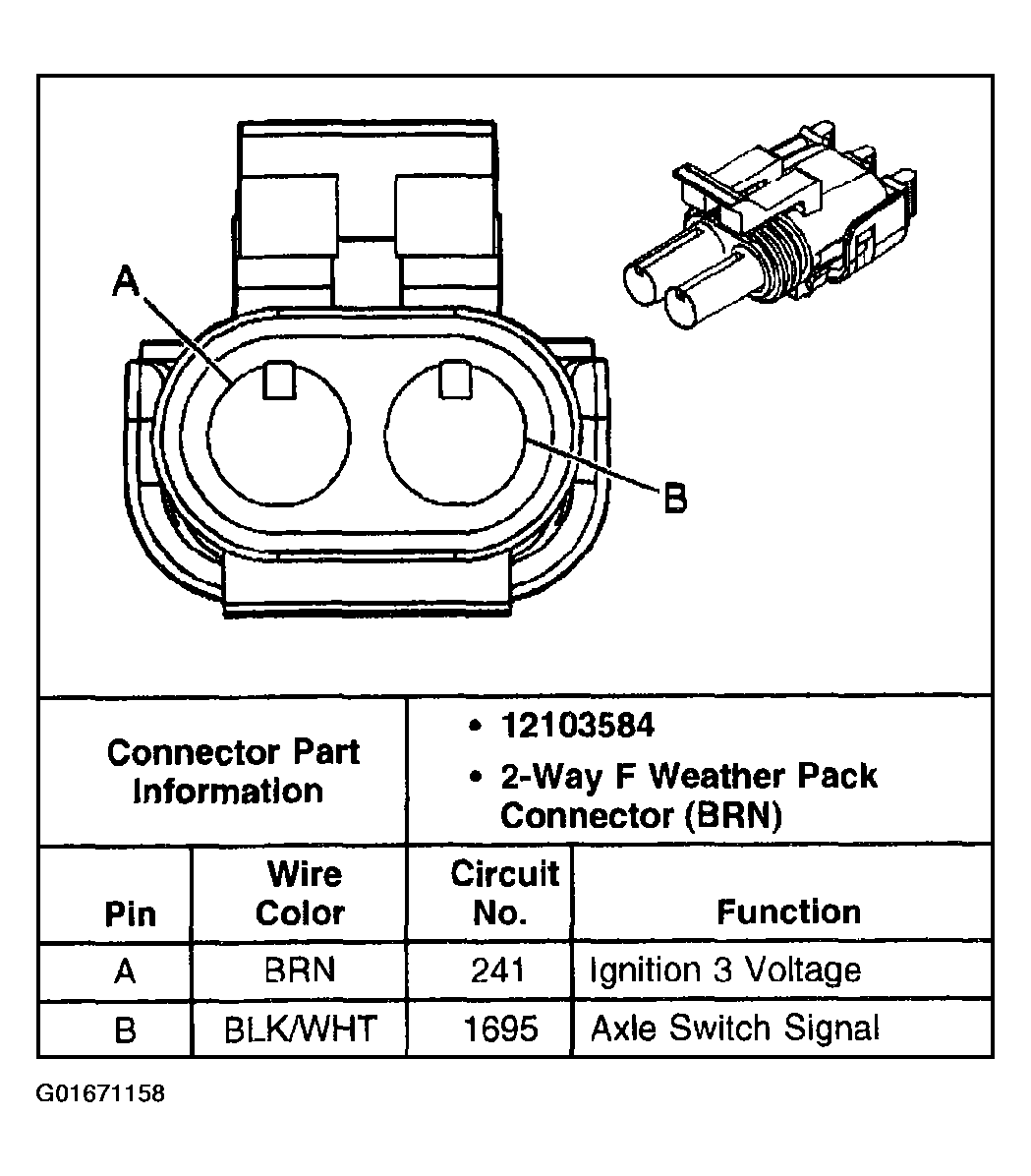

Fig 9: Front Axle Indicator Switch

Courtesy of GENERAL MOTORS CORP.

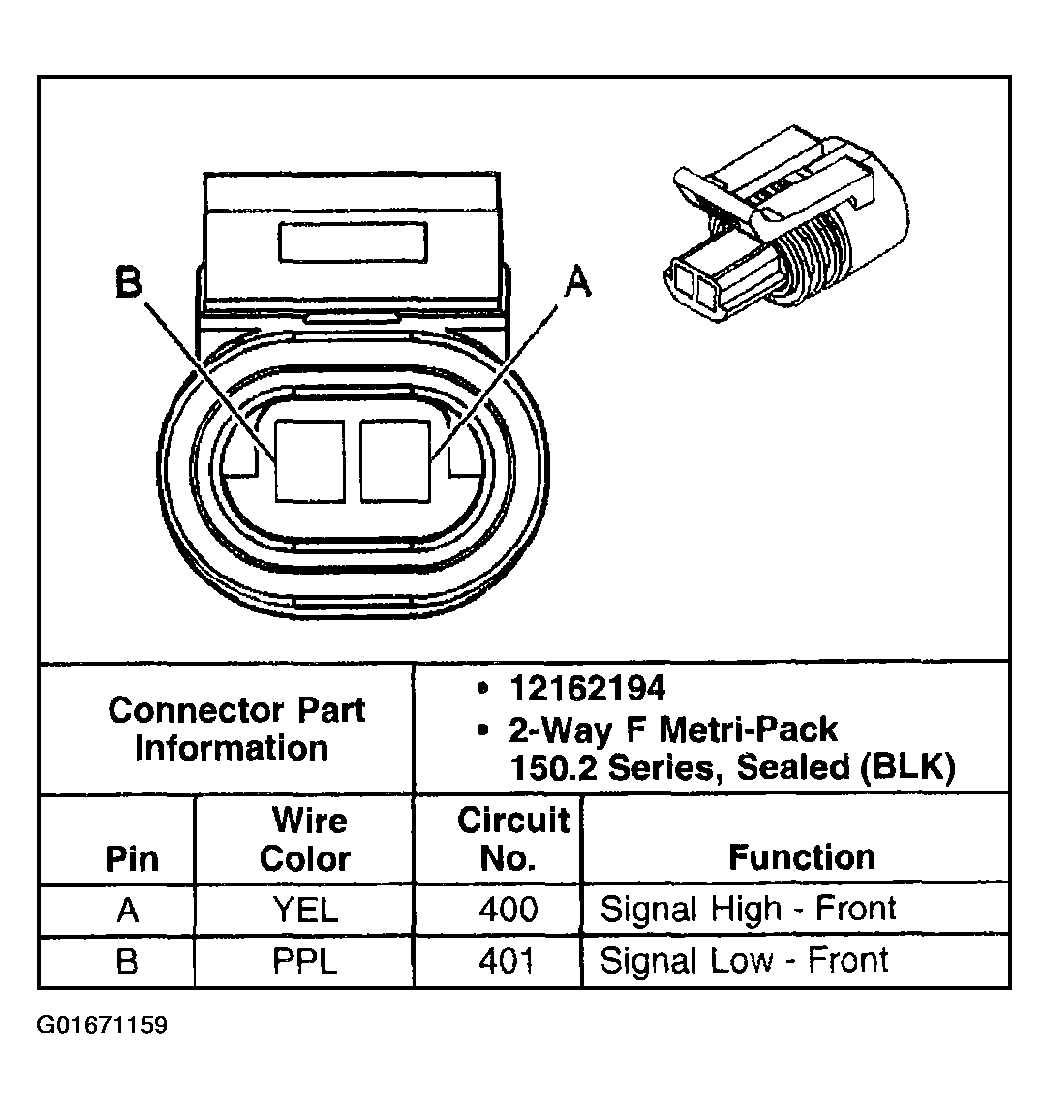

Fig 10: Propshaft Speed Sensor - Front

Courtesy of GENERAL MOTORS CORP.

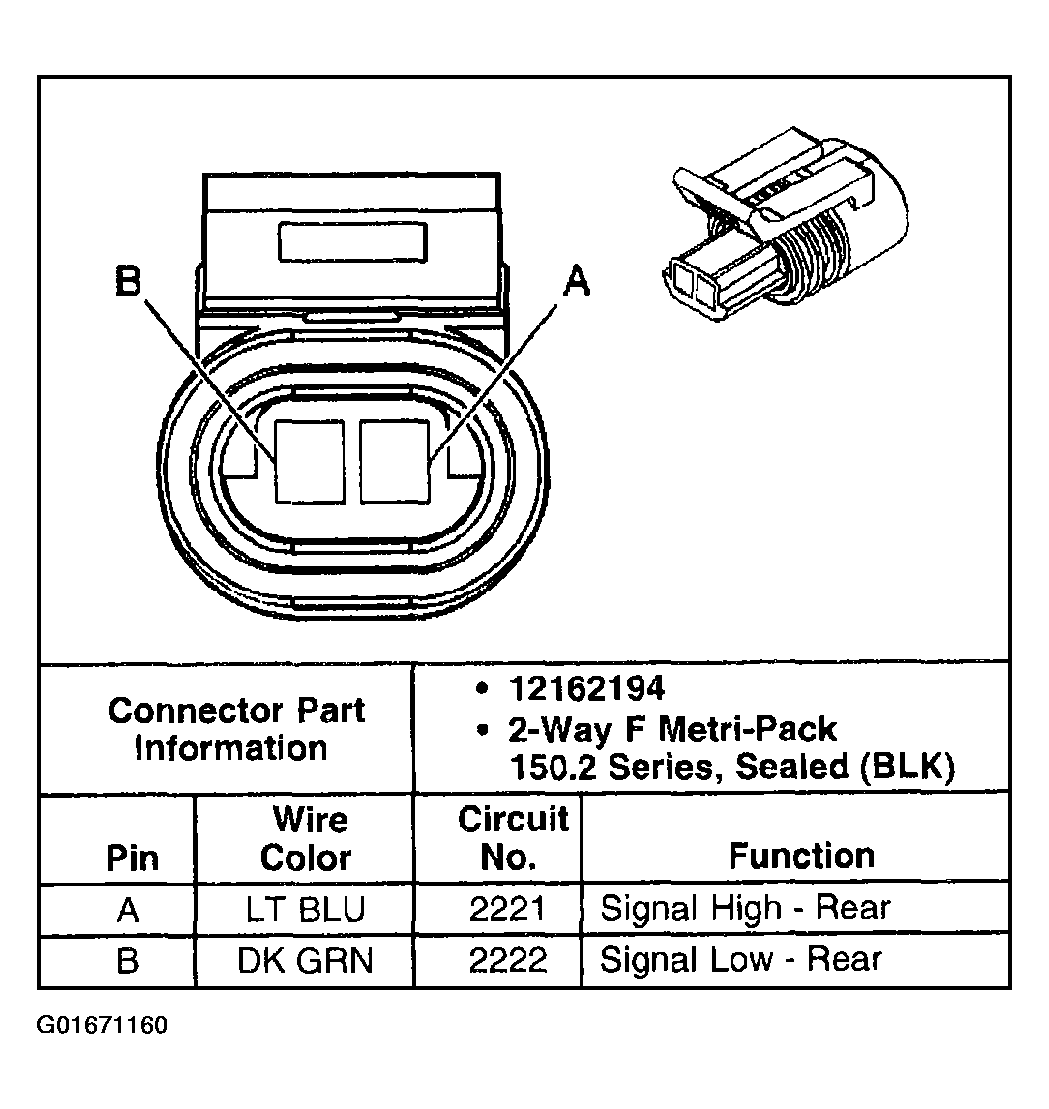

Fig 11: Propshaft Speed Sensor - Rear

Courtesy of GENERAL MOTORS CORP.
