Transfer Case Control Component Views

WARNING: This page is about a different variant/trim than selected.

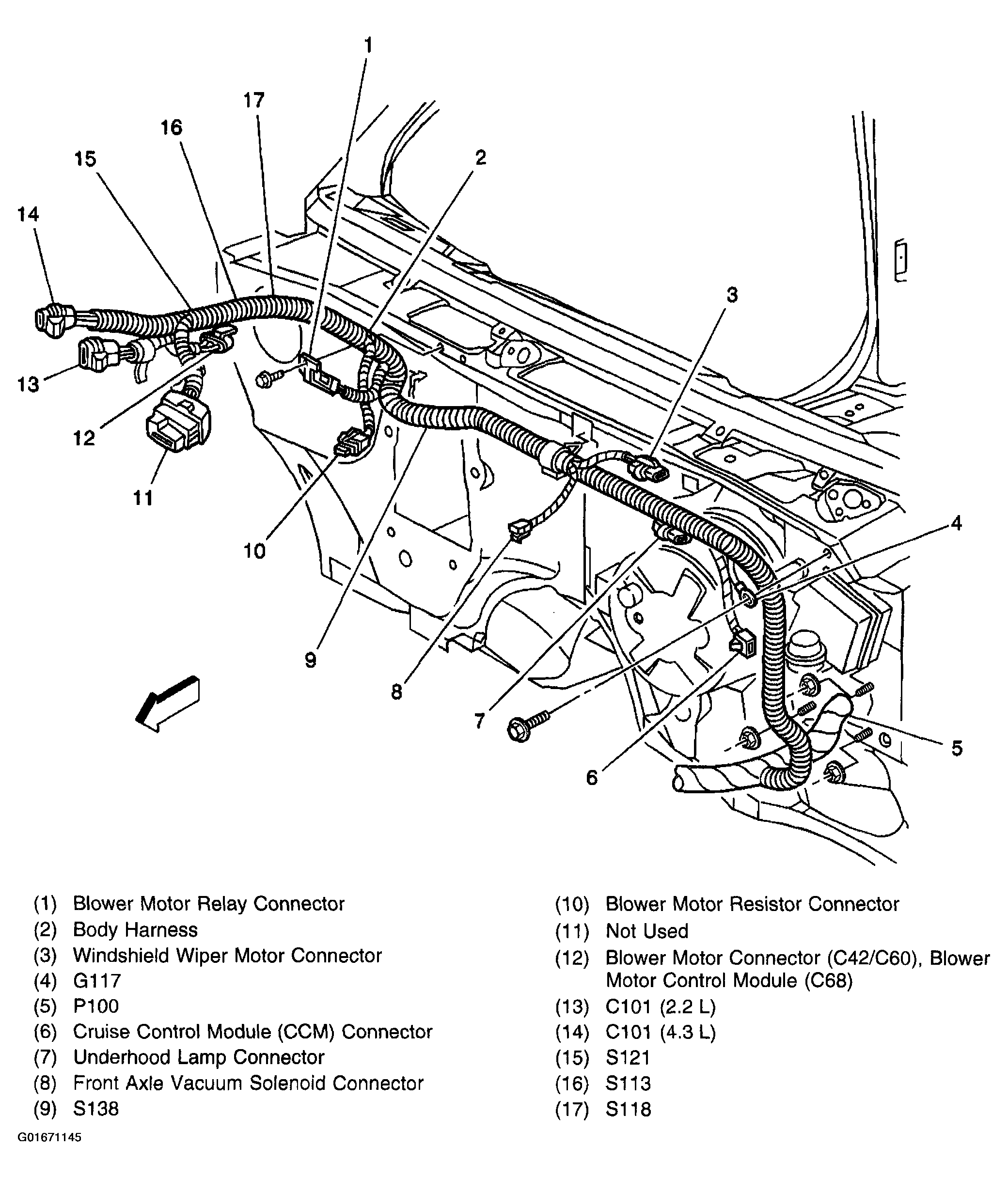

Fig 1: Body Harness to Cowl

Courtesy of GENERAL MOTORS CORP.

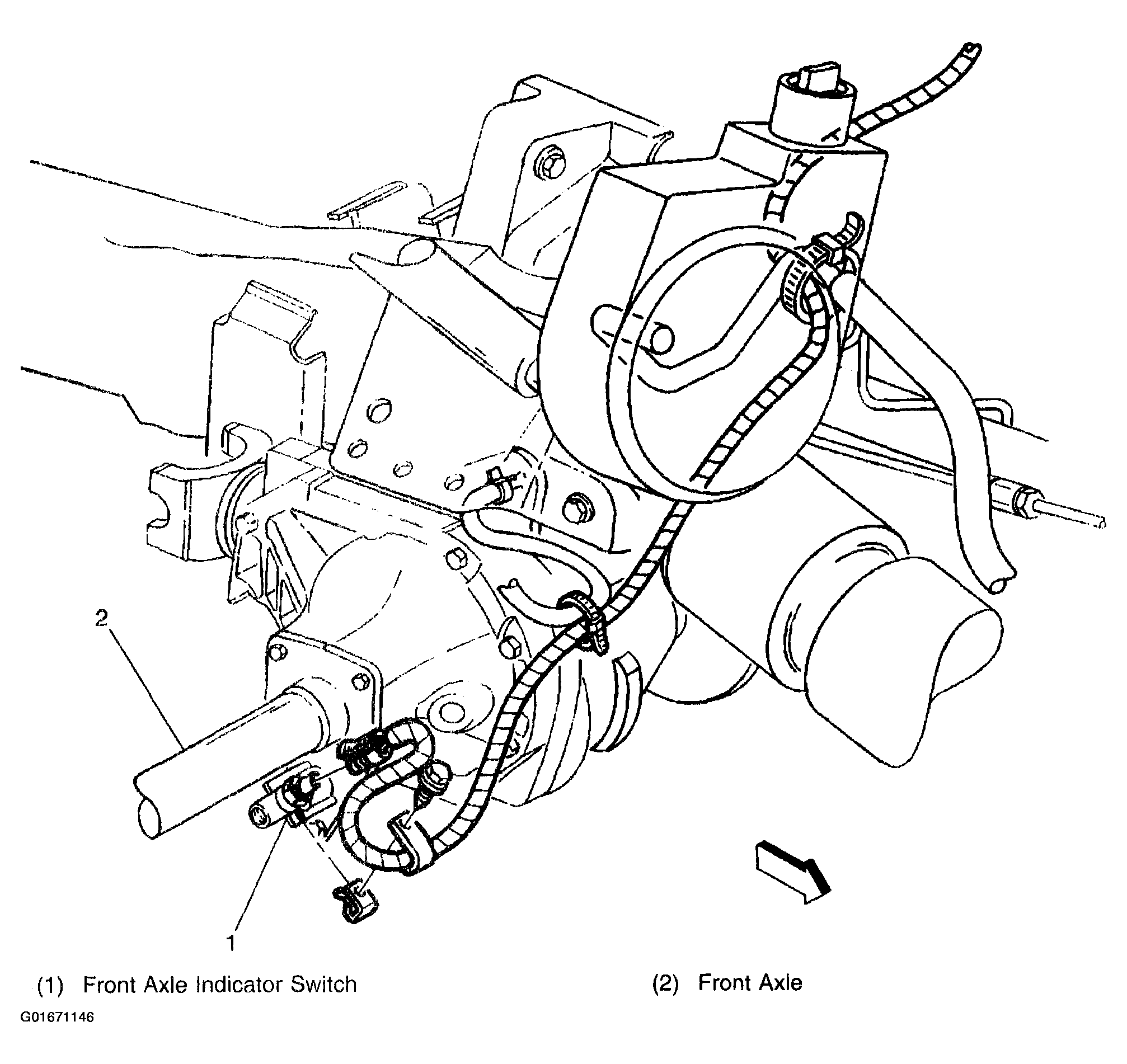

Fig 2: Front Axle Switch

Courtesy of GENERAL MOTORS CORP.

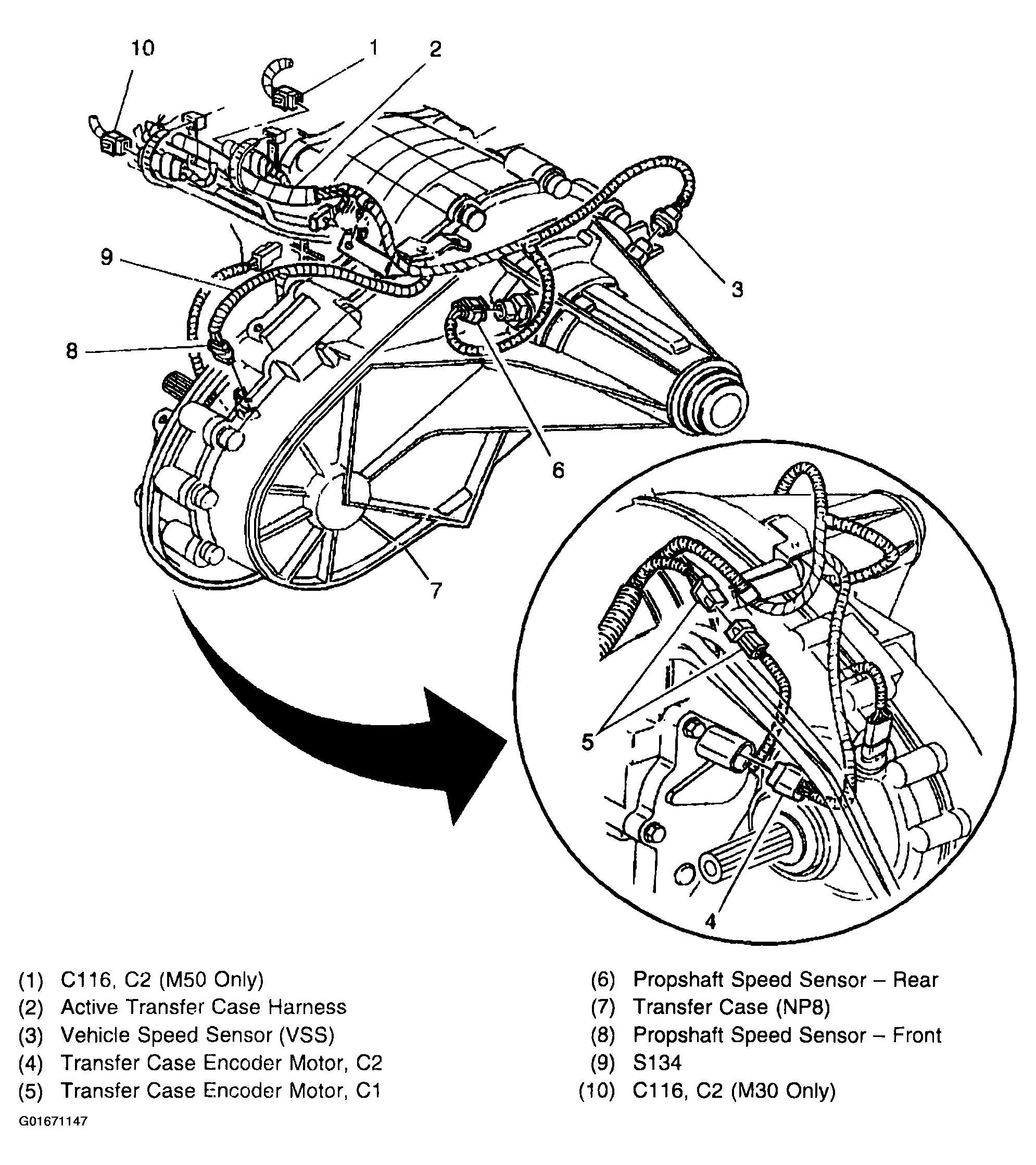

Fig 3: Transfer Case (NP8) Harness Routing View

Courtesy of GENERAL MOTORS CORP.

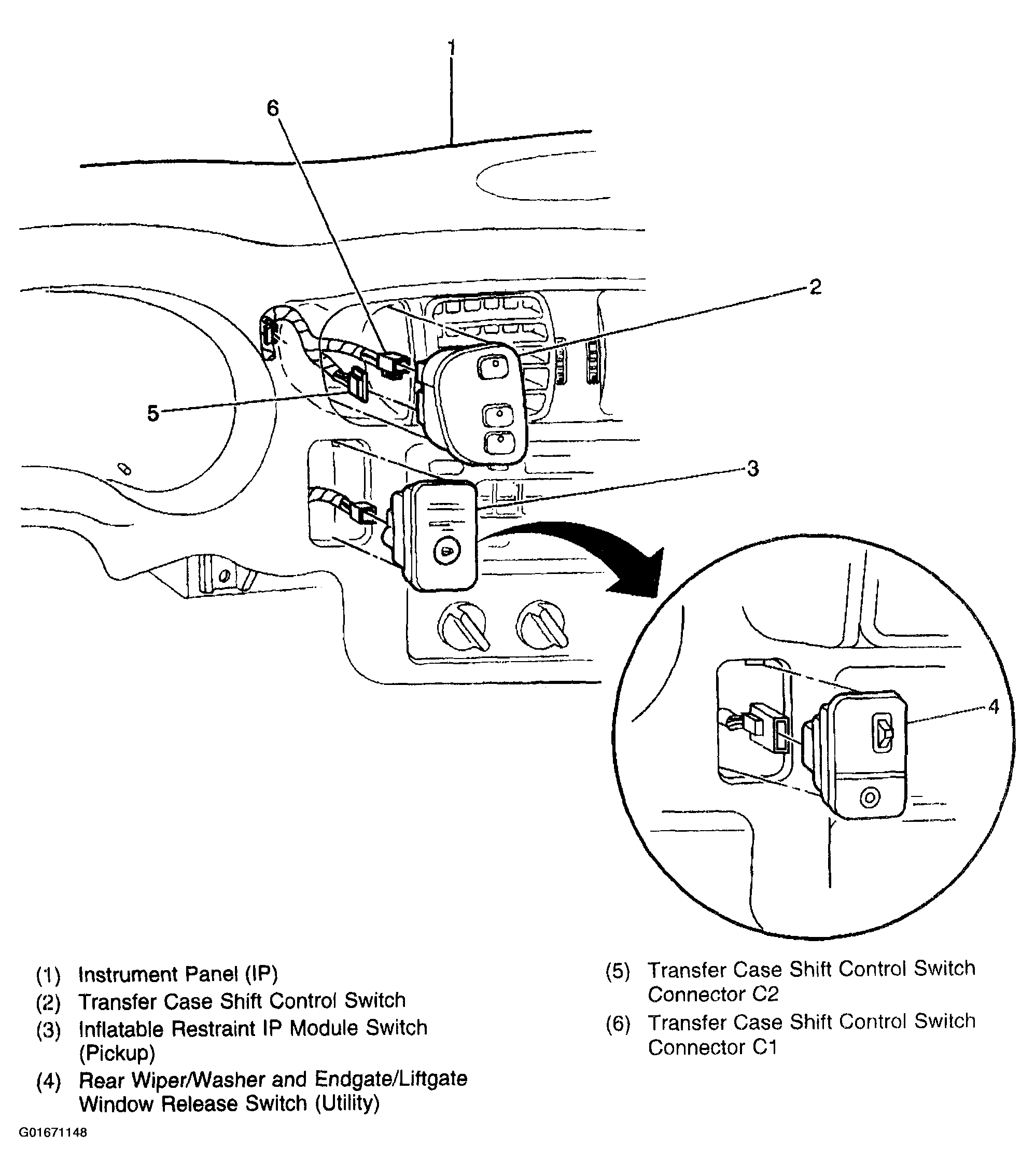

Fig 4: IP Center Switch

Courtesy of GENERAL MOTORS CORP.

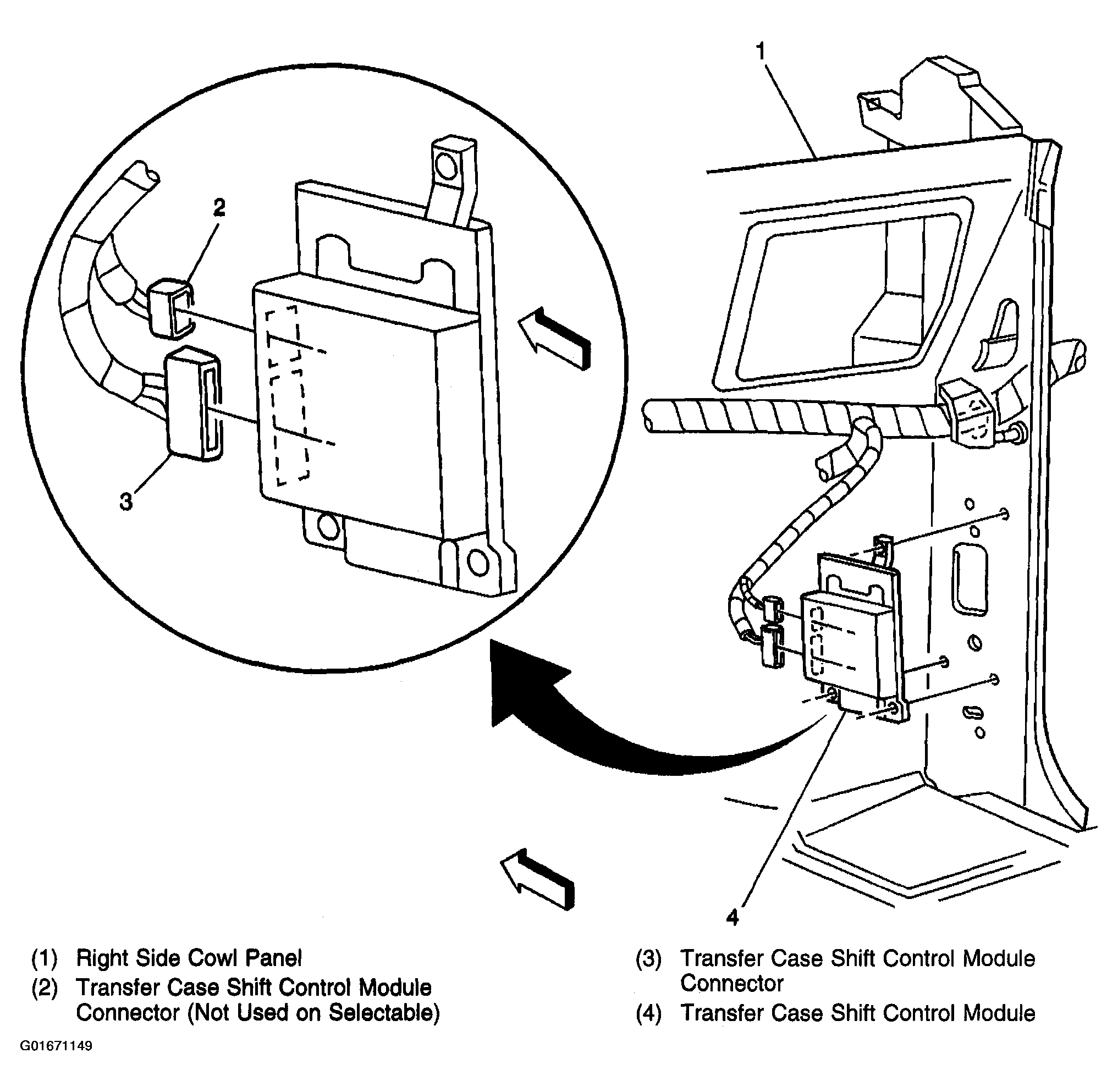

Fig 5: Transfer Case Shift Control Module

Courtesy of GENERAL MOTORS CORP.
