Section 3 (Manual Transmission - NV 3500)
>>
Schematic & Routing Diagrams
>>
Manual Transmission Schematics
Manual Transmission Schematics
WARNING:
This page is about a different variant/trim than selected.

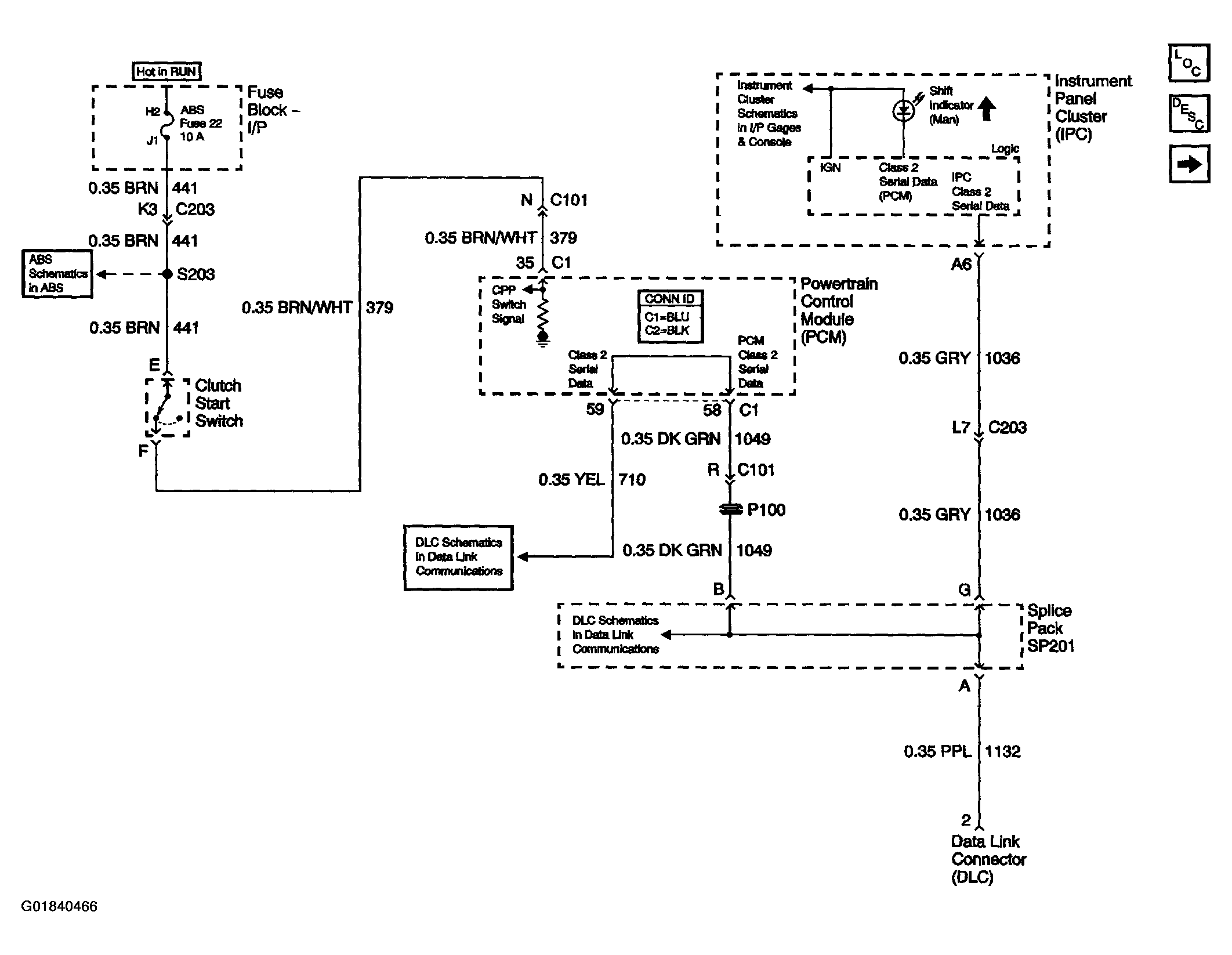

Fig 1: Manual Transmission Schematic - Shift Indicator
Courtesy of GENERAL MOTORS CORP.

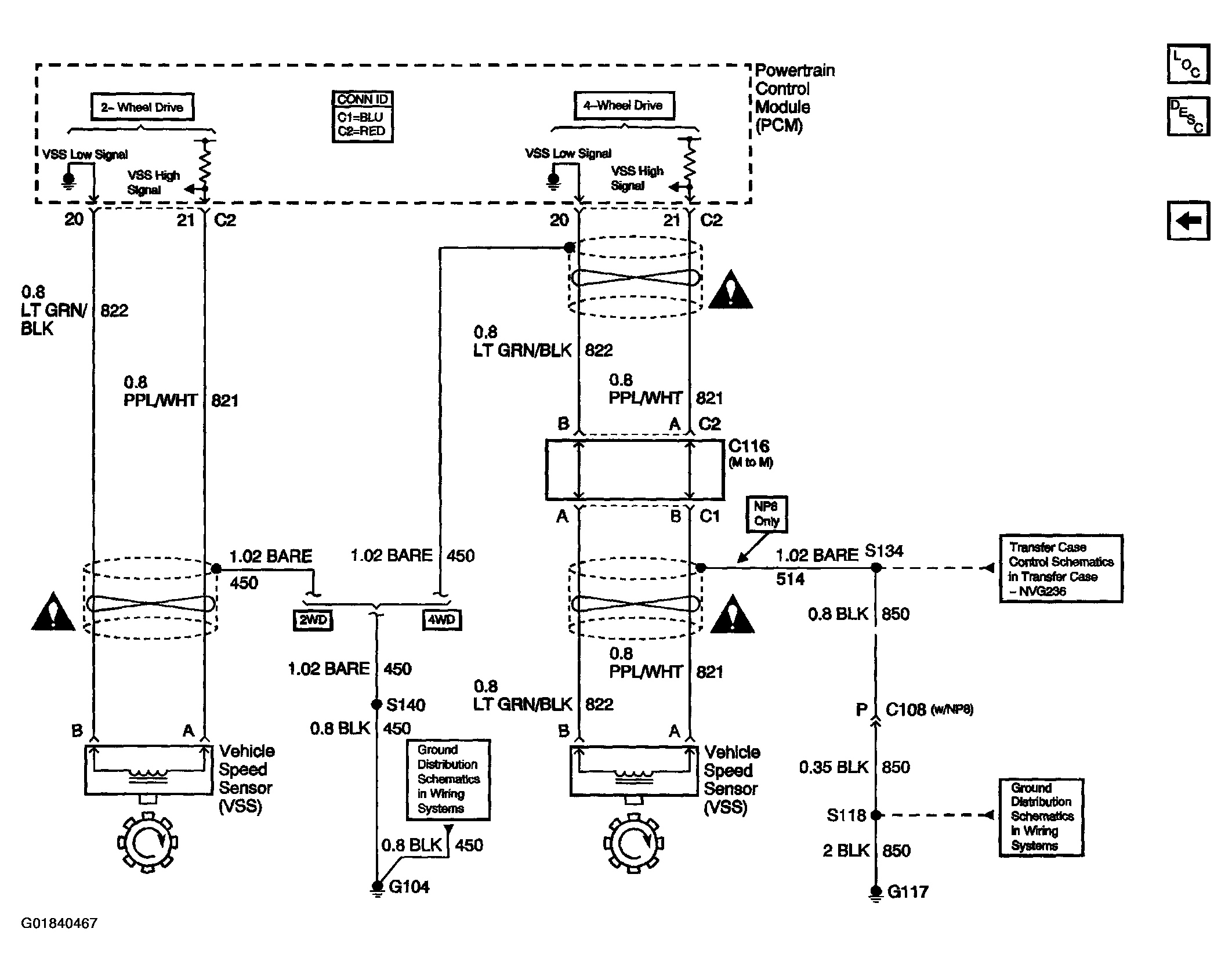

Fig 2: Manual Transmission Schematic - Vehicle Speed Sensor (VSS)
Courtesy of GENERAL MOTORS CORP.
