Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Raise and support the vehicle. Refer to LIFTING & JACKING THE VEHICLE in General Information.
  2. Disconnect the electrical connector from the vehicle speed sensor.

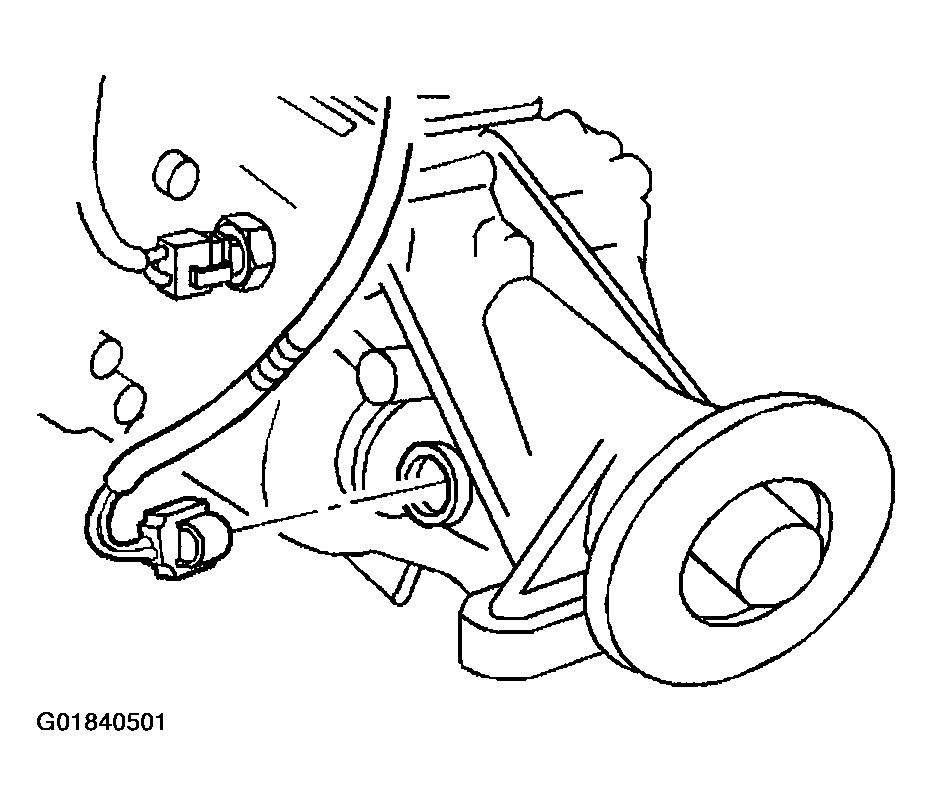

    Fig 1: Locating Vehicle Speed Sensor (VSS) Electrical Connector
    G01840501Courtesy of GENERAL MOTORS CORP.
  3. Remove the following parts:
    • The vehicle speed sensor
    • The O-ring seal
      • Fig 2: Locating Vehicle Speed Sensor & O-Ring Seal
      G01840502Courtesy of GENERAL MOTORS CORP.
