Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Coat a new O-ring seal with a thin film of transmission oil.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the following parts:

    1. 2.1

      The O-ring on the vehicle speed sensor assembly.

    2. 2.2

      The vehicle speed sensor assembly.

    3. 2.3

      Tighten

      Tighten the bolt to 16 N.m (12 lb ft).

      4. Fig 1: Locating Vehicle Speed Sensor & O-Ring Seal
      G01840503Courtesy of GENERAL MOTORS CORP.
  3. Install the electrical connector to the vehicle speed sensor.

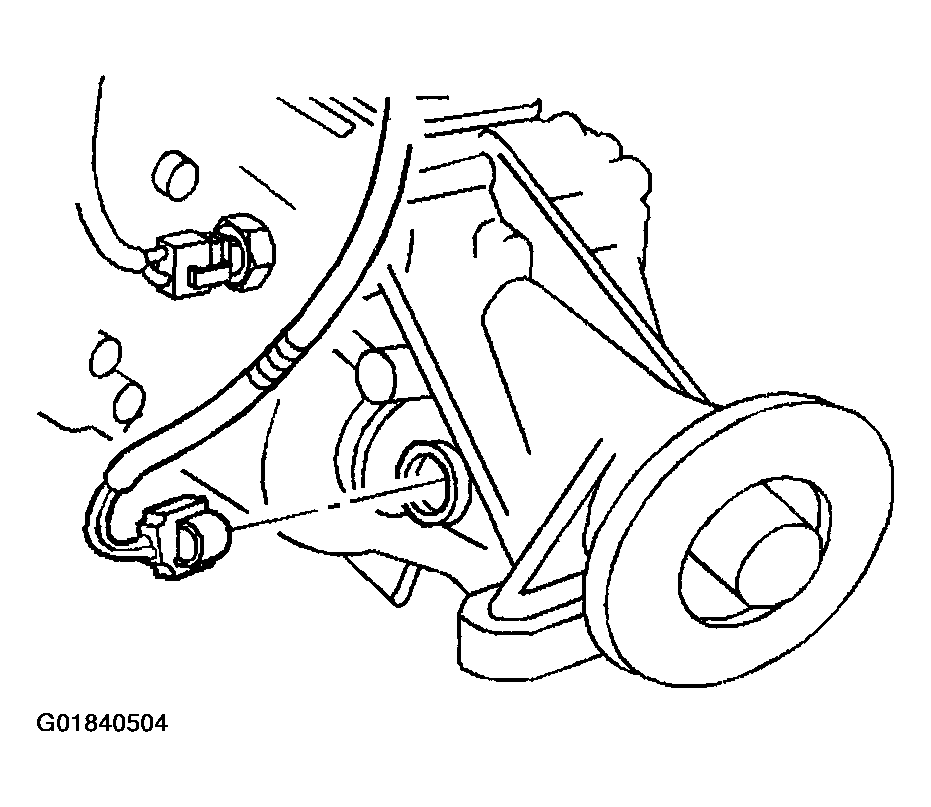

    Fig 2: Locating Vehicle Speed Sensor (VSS) Electrical Connector
    G01840504Courtesy of GENERAL MOTORS CORP.
  4. Lower the vehicle.
