Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transfer case. Refer to TRANSFER CASE ASSEMBLY REPLACEMENT in TRANSFER CASE article.
  2. Using the J 36825  and the J 23907  remove the seal from the extension housing.

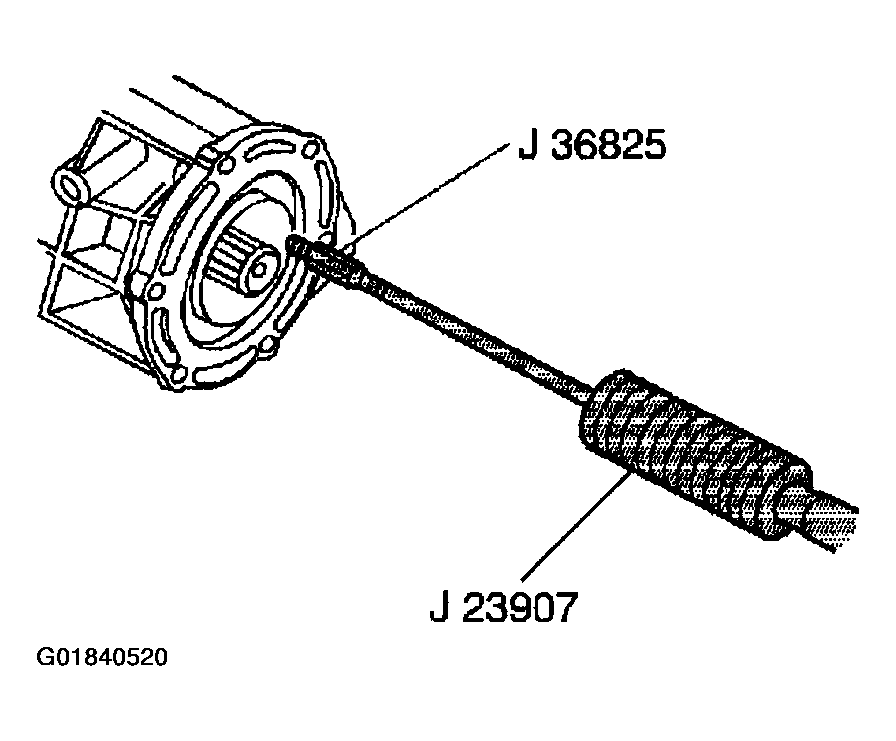

    Fig 1: Removing Extension Housing Seal
    G01840520Courtesy of GENERAL MOTORS CORP.
