Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Position J 36502-2A over the output shaft.

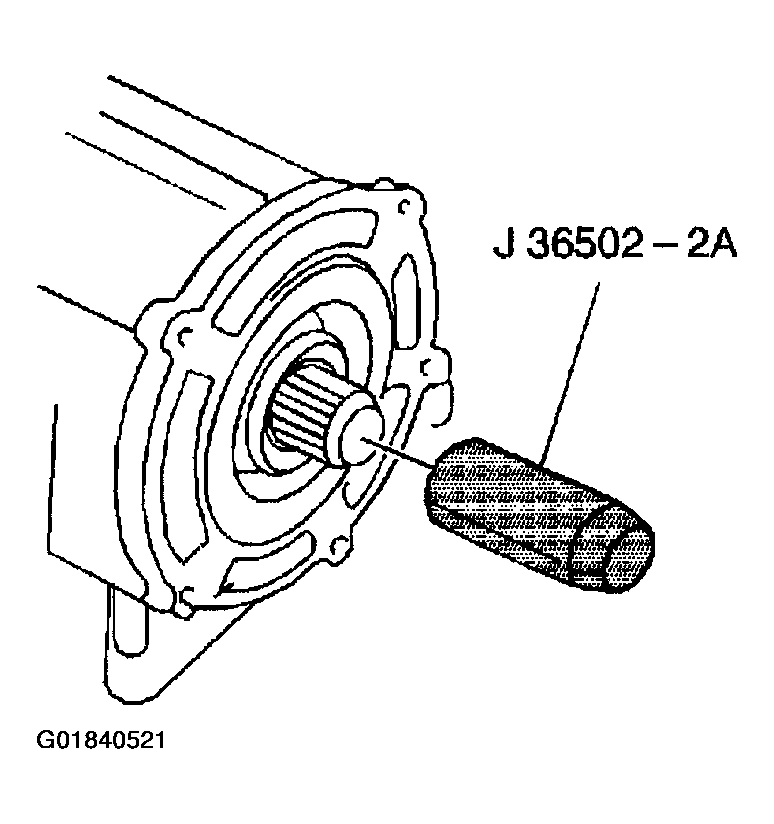

Fig 1: Positioning Output Shaft Seal Protector/Installer J 36502-2A Over Output Shaft
Courtesy of GENERAL MOTORS CORP.
Using J 36502 install the rear output shaft seal.

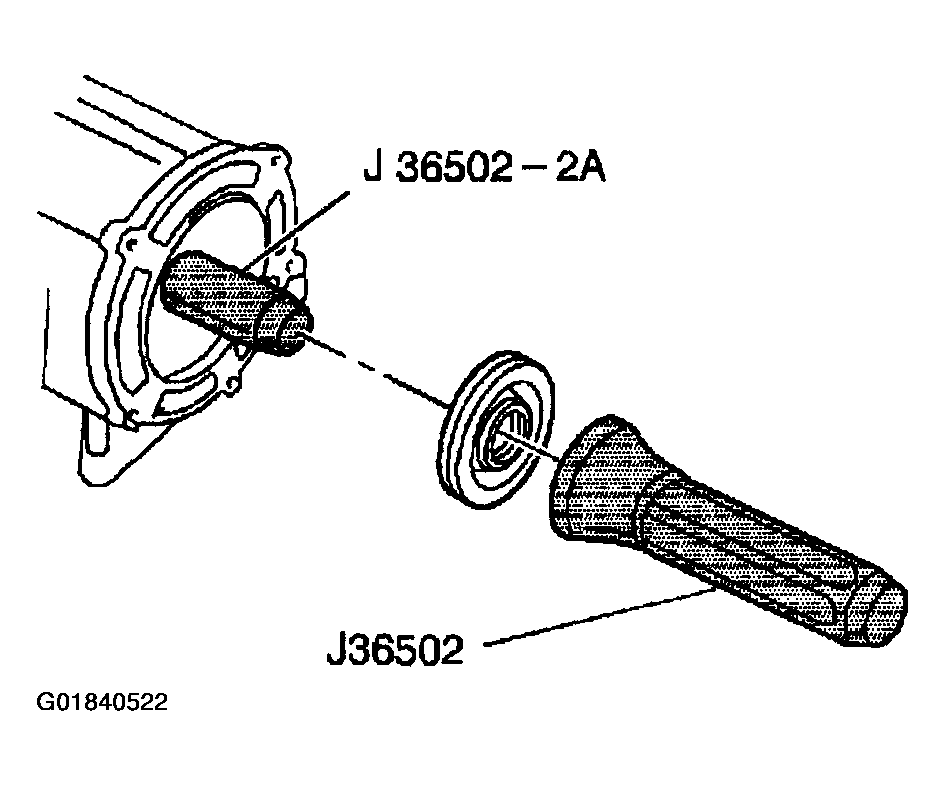

Fig 2: Installing Rear Output Shaft Seal
Courtesy of GENERAL MOTORS CORP.
Remove J 36502-2A from the output shaft.

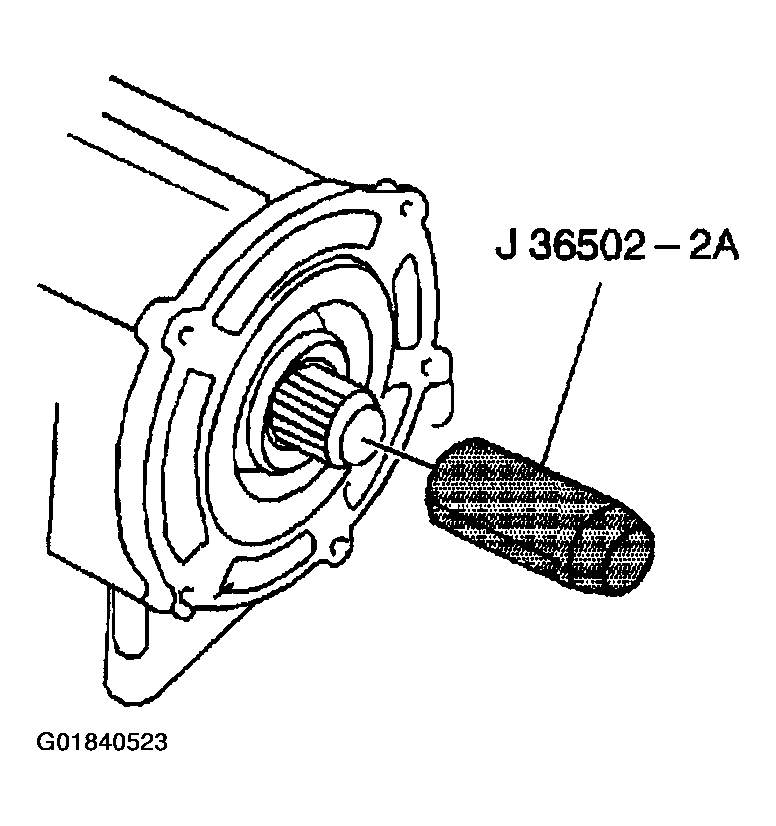

Fig 3: Removing Output Shaft Seal Protector/Installer J 36502-2A Over Output Shaft
Courtesy of GENERAL MOTORS CORP.

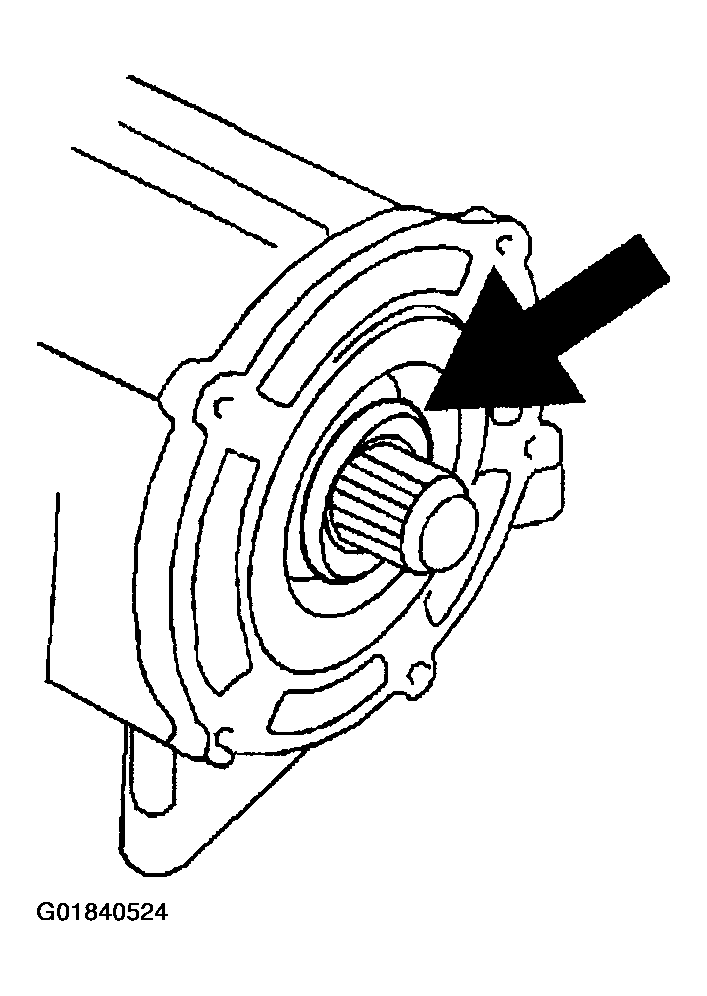

Fill the space between the seal lips with grease GM P/N 1052497 or equivalent.

Fig 4: Filling Space Between Seal Lips With Grease
Courtesy of GENERAL MOTORS CORP.
Install the transfer case. Refer to TRANSFER CASE ASSEMBLY REPLACEMENT in TRANSFER CASE article.
Check the transmission oil level. Refer to FLUID REPLACEMENT .
Lower the vehicle.
