Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Raise and support the vehicle. Refer to LIFTING & JACKING THE VEHICLE in General Information.
  2. Remove the rear propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - ONE PIECE or PROPELLER SHAFT REPLACEMENT - TWO PIECE in PROPELLER SHAFT article.
  3. Remove the rear oil seal from the rear case using the J 6125-1B  (1) and the J 23129 (2)  .

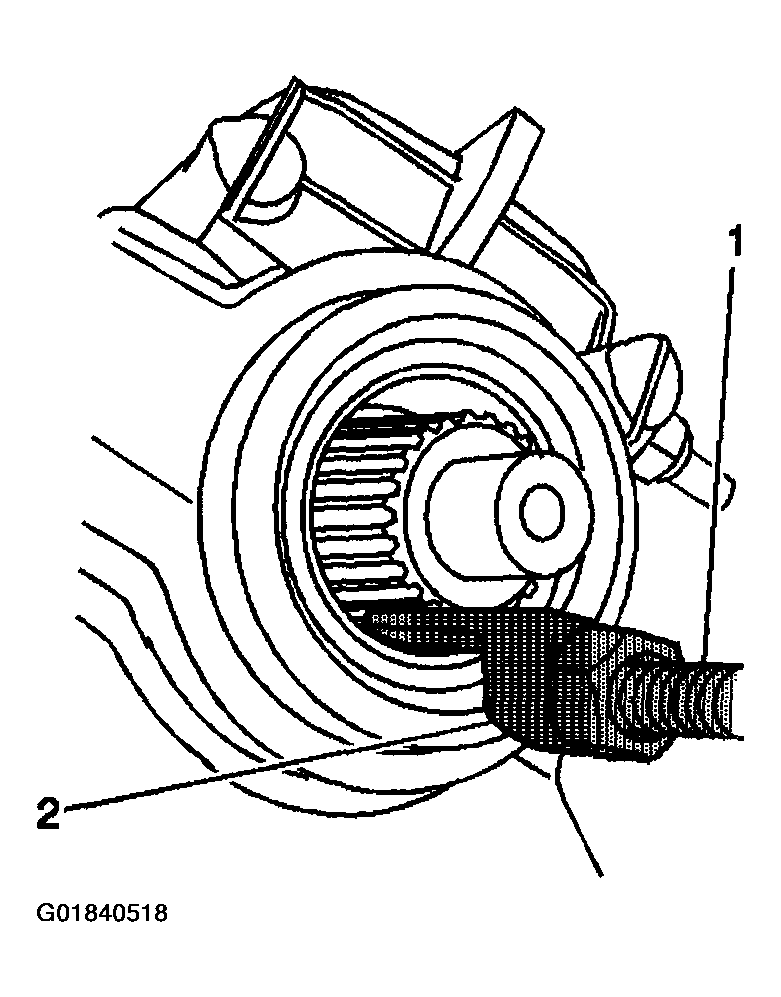

    Fig 1: Removing Rear Case Rear Oil Seal
    G01840518Courtesy of GENERAL MOTORS CORP.
