Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Using the J 36503  install the new rear oil seal.

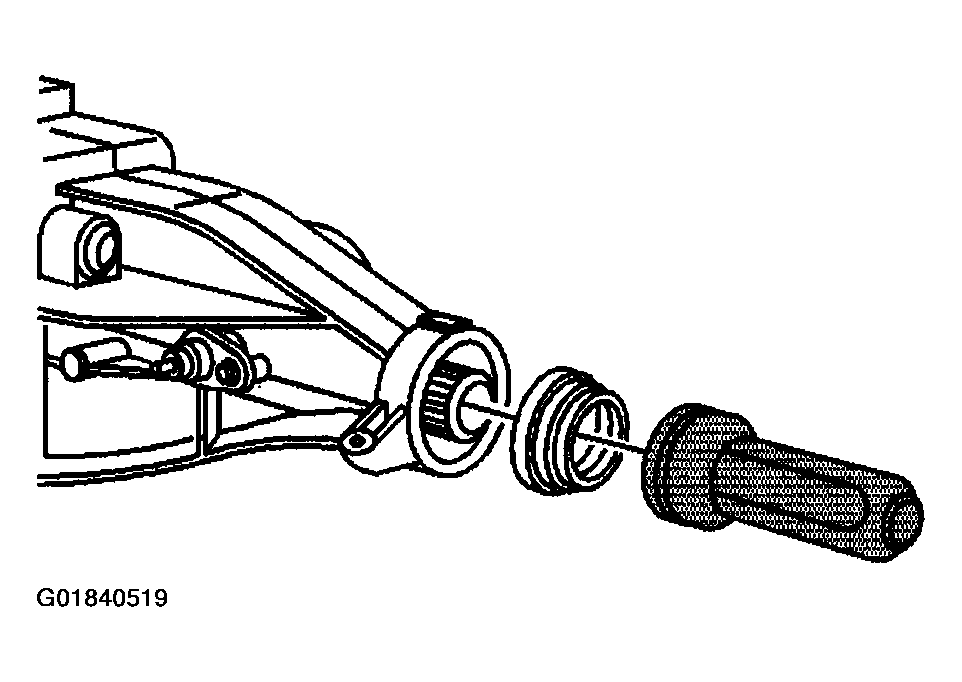

    Fig 1: Installing NEW Rear Case Rear Oil Seal
    G01840519Courtesy of GENERAL MOTORS CORP.
  2. Install the rear propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - ONE PIECE or PROPELLER SHAFT REPLACEMENT - TWO PIECE in PROPELLER SHAFT article.
  3. Check the transmission oil level. Refer to FLUID REPLACEMENT .
  4. Lower the vehicle.
