Installation Procedure

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: Inspect the bearing retainer for any nicks or cracks that may result in a leak. Replace as necessary.

Place the seal in the front bearing retainer.

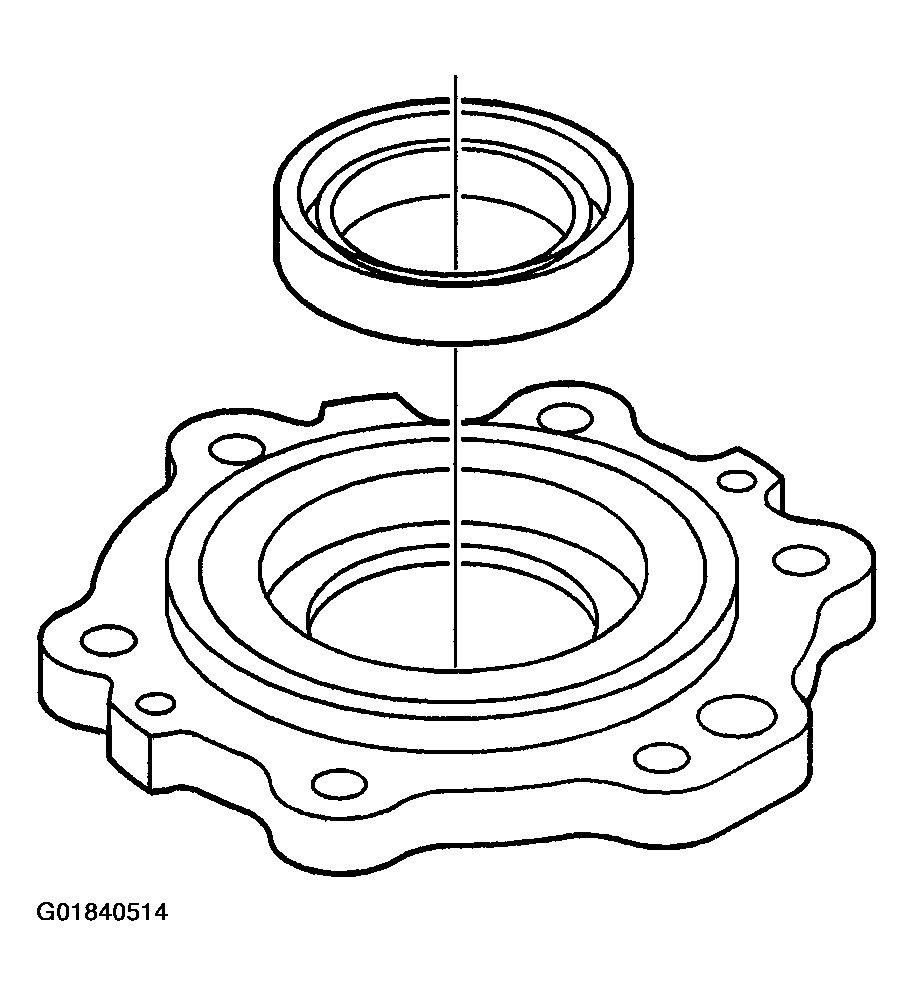

Fig 1: Positioning Front Bearing Retainer Seal
Courtesy of GENERAL MOTORS CORP.
Using the J 38801 install the seal.
Apply RTV gasket material to the inboard side of the bearing retainer.

Fig 2: Applying RTV Gasket Material To Inboard Side Of Bearing Retainer
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

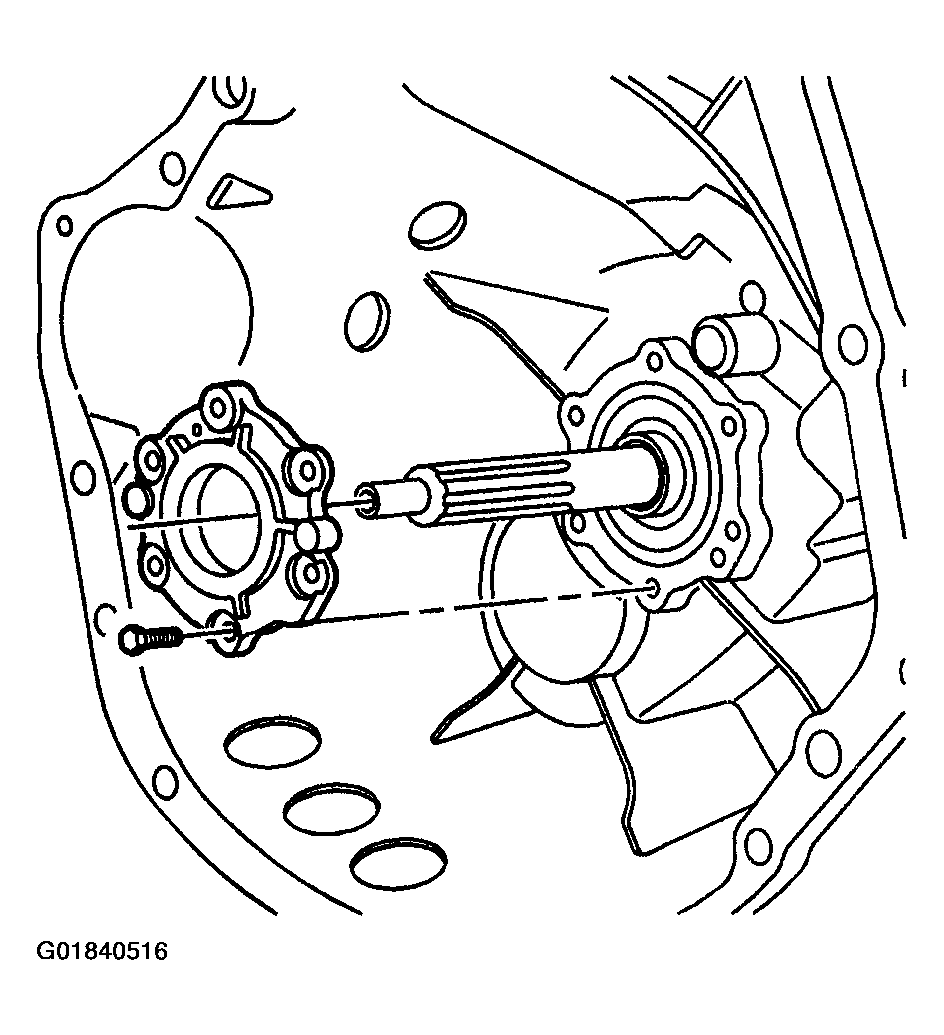

Fig 3: Locating Front Bearing Retainer & Bolts

Courtesy of GENERAL MOTORS CORP.

Install the front bearing retainer and the 6 bolts to the transmission.
Tighten

Tighten the 6 bearing retainer bolts to 14 N.m (10 lb ft).
Install the clutch actuator and the bolts.
Tighten

Tighten the clutch actuator bolts to 8 N.m (71 lb in).

Fig 4: Locating Clutch Actuator & Bolts
Courtesy of GENERAL MOTORS CORP.
Install the transmission. Refer to TRANSMISSION REPLACEMENT .
