Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the shift lever from the shift tower. DO NOT remove the shift lever adjusting nut.

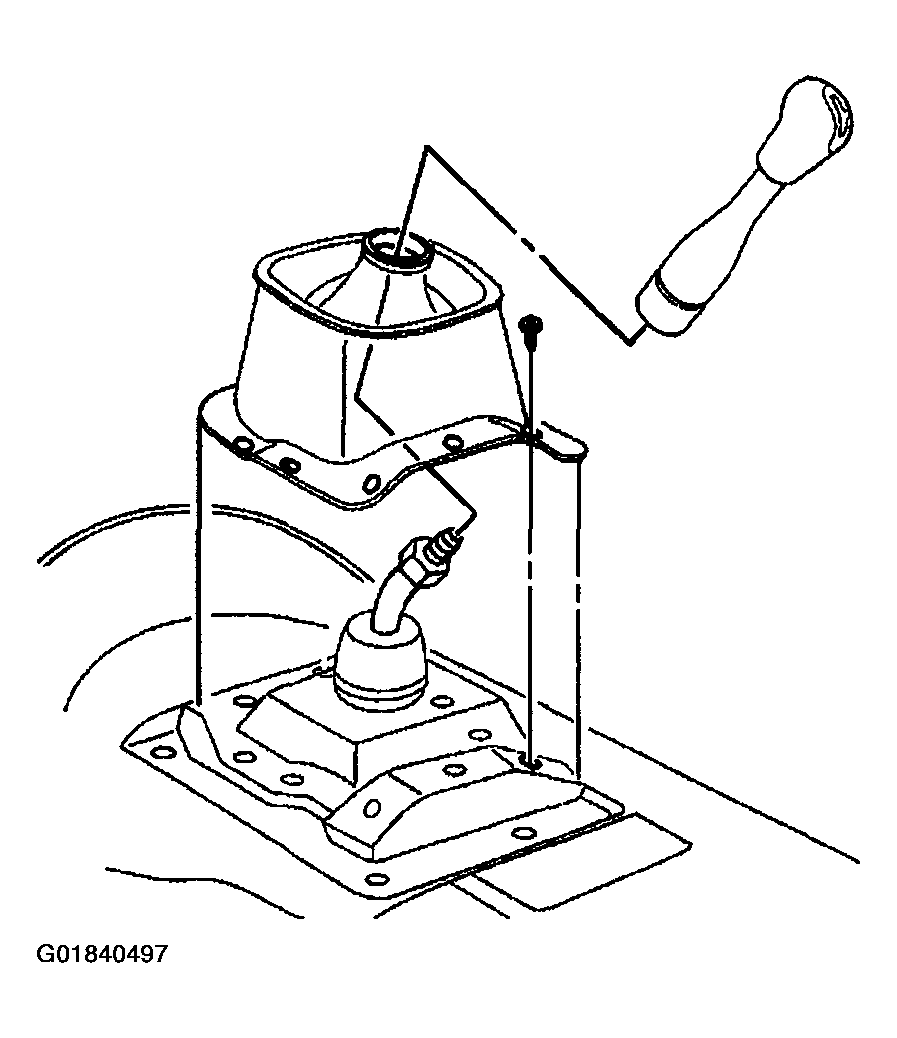

    Fig 1: Identifying Shift Lever & Shift Tower Boot
    G01840497Courtesy of GENERAL MOTORS CORP.
  2. Remove the screws securing the boot to the panel.
  3. Remove the boot from the shift tower.
  4. Remove the shift tower housing bolts.
  5. Remove the shift tower housing from the transmission.

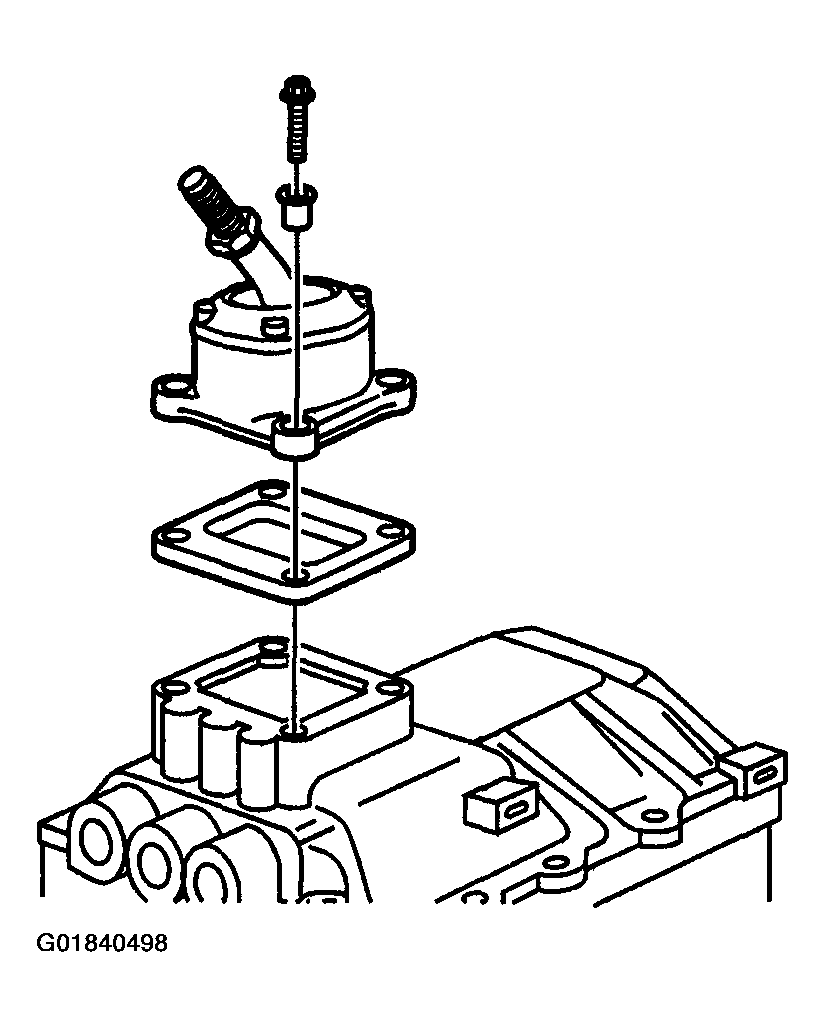

    Fig 2: Identifying Shift Tower Housing Bolts
    G01840498Courtesy of GENERAL MOTORS CORP.
