Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the shift tower housing to the transmission.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the shift tower housing bolts.

    Tighten

    Tighten the shift tower housing bolts to 20 N.m(15 lb ft).

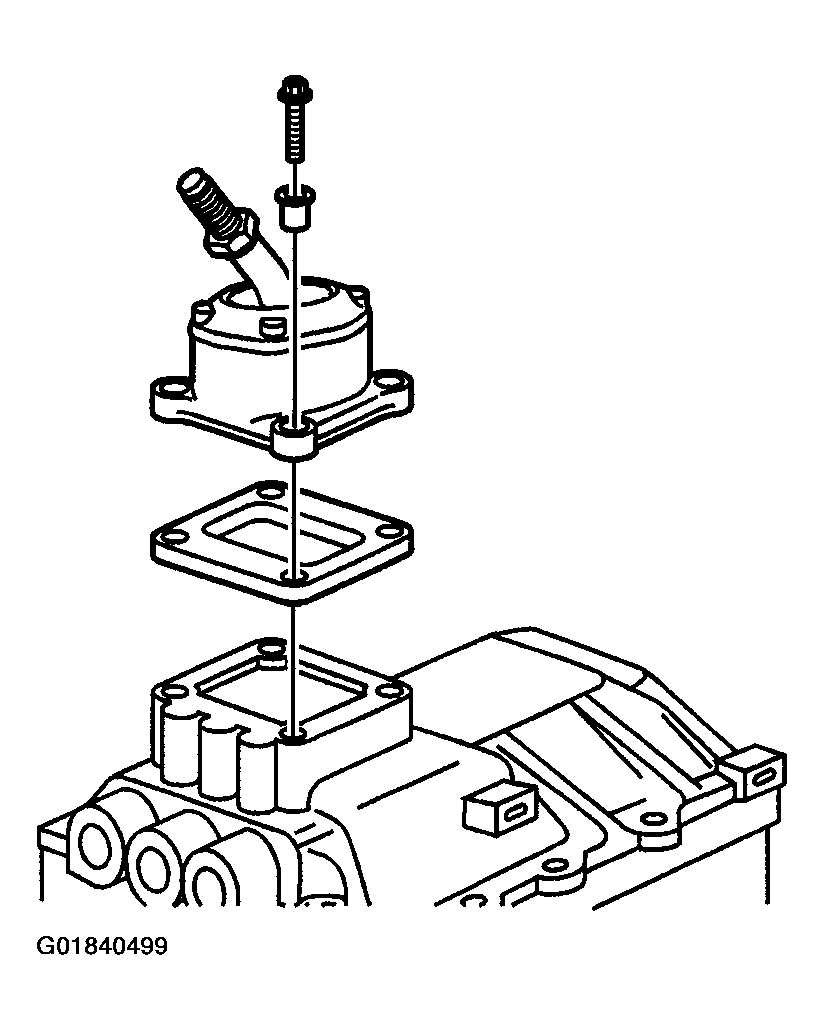

    Fig 1: Identifying Shift Tower Housing Bolts
    G01840499Courtesy of GENERAL MOTORS CORP.
  3. Install the boot to the shift tower.
  4. Install the shift boot screws.

    Tighten

    Tighten the shift boot screws to 2 N.m (18 lb in).

  5. Install the shift lever to the shift tower.

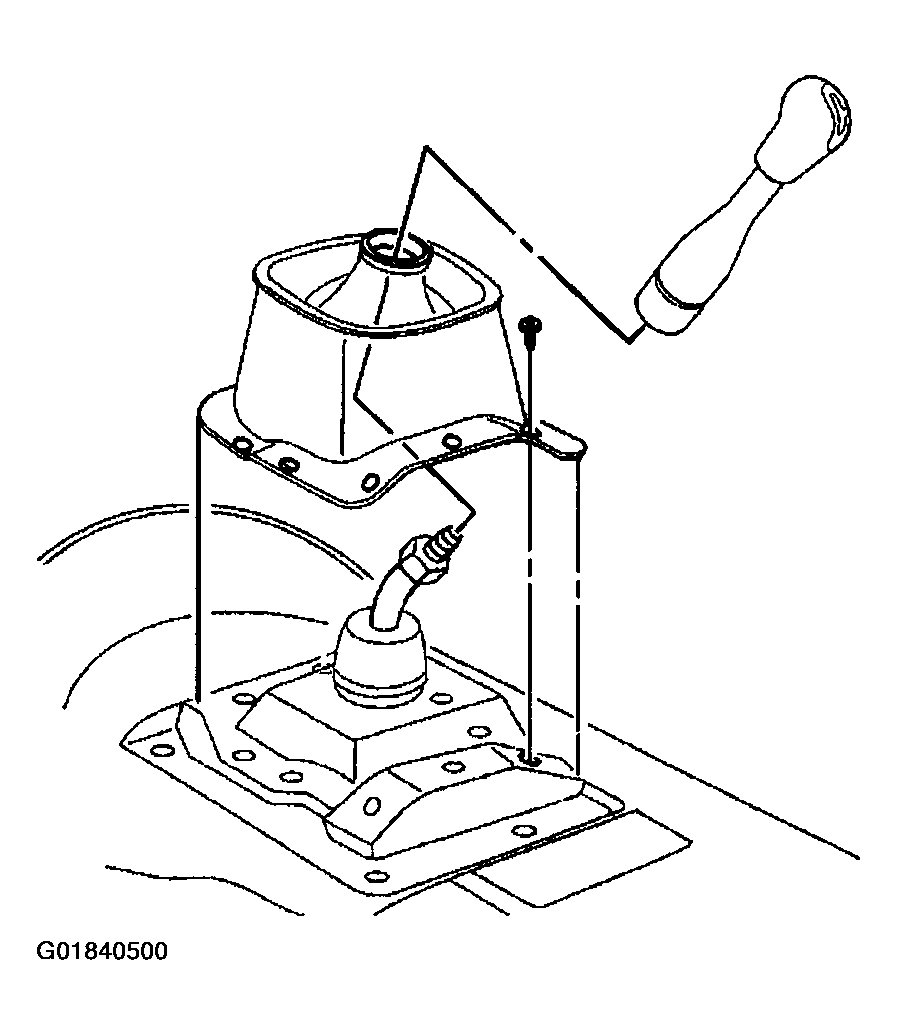

    Fig 2: Identifying Shift Lever & Shift Tower Boot
    G01840500Courtesy of GENERAL MOTORS CORP.
