Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the shift lever from the shift tower. Do not remove the shift lever adjusting nut.
  2. Remove the screws securing the boot to the panel.
  3. Remove the boot from the shift tower.

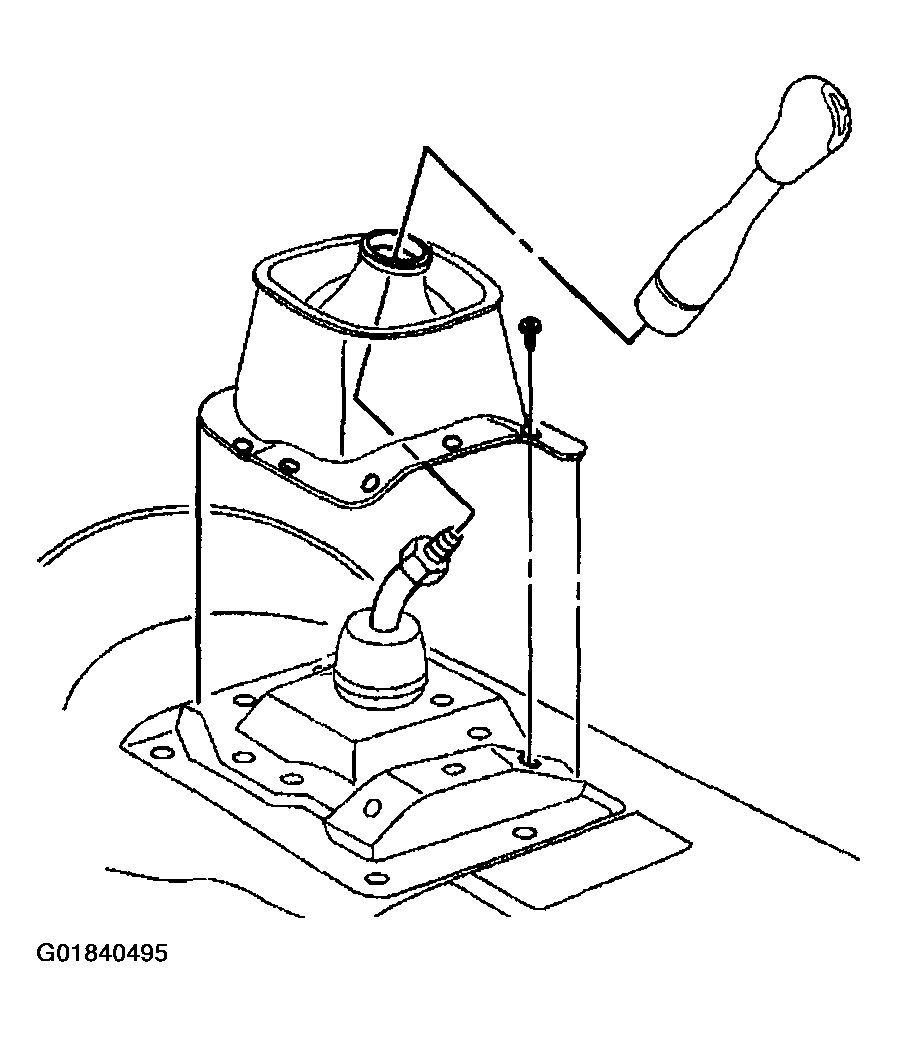

    Fig 1: Identifying Shift Lever & Shift Tower Boot
    G01840495Courtesy of GENERAL MOTORS CORP.
