Installation Procedure
WARNING: This page is about a different variant/trim than selected.
NOTE:
Refer to Fastener Notice in Cautions and Notices.

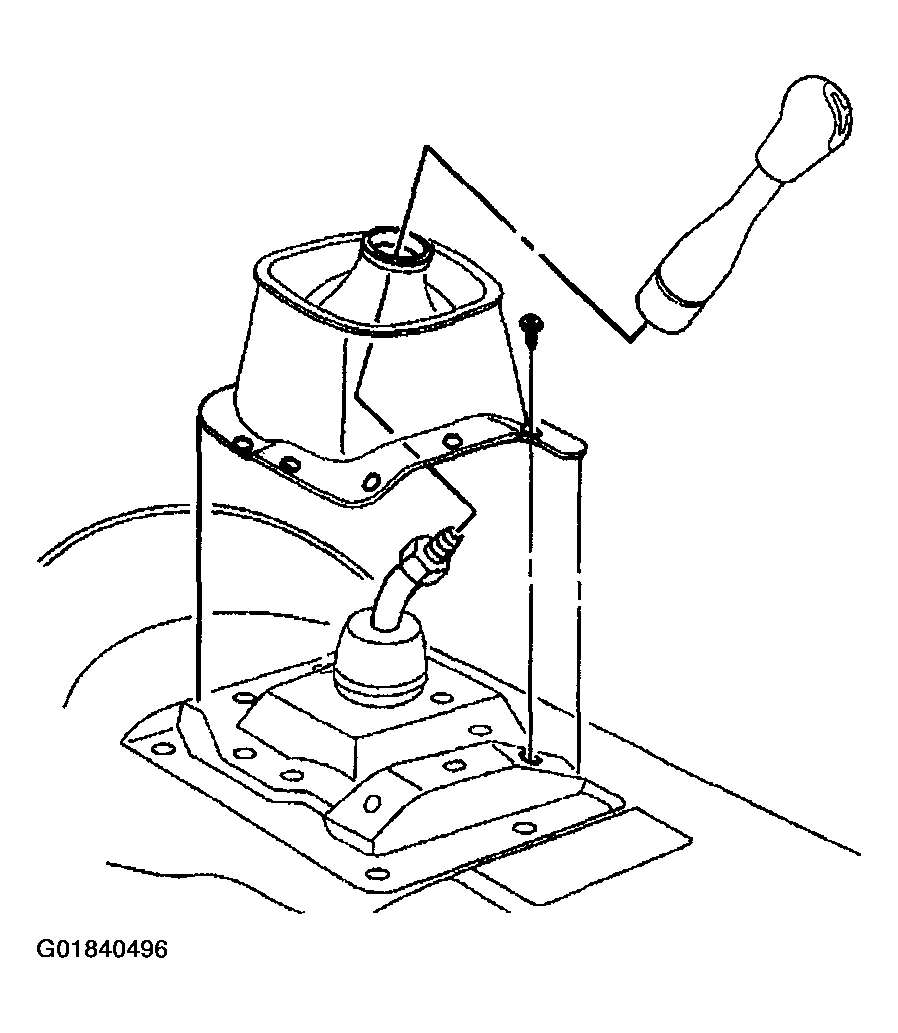

- Install the boot over the shift tower and secure to the panel with the screws.
Tighten
Tighten the screws to 2 N.m (18 lb in).
- Install the shift lever to the shift tower. If required, center the shift lever with the adjusting nut.
Tighten
Tighten the adjusting nut to 48 N.m (35 lb ft).
