Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Raise and support the vehicle. Refer to LIFTING & JACKING THE VEHICLE in General Information.
  2. Disconnect the backup lamp switch electrical connector.
  3. Remove the backup lamp switch.

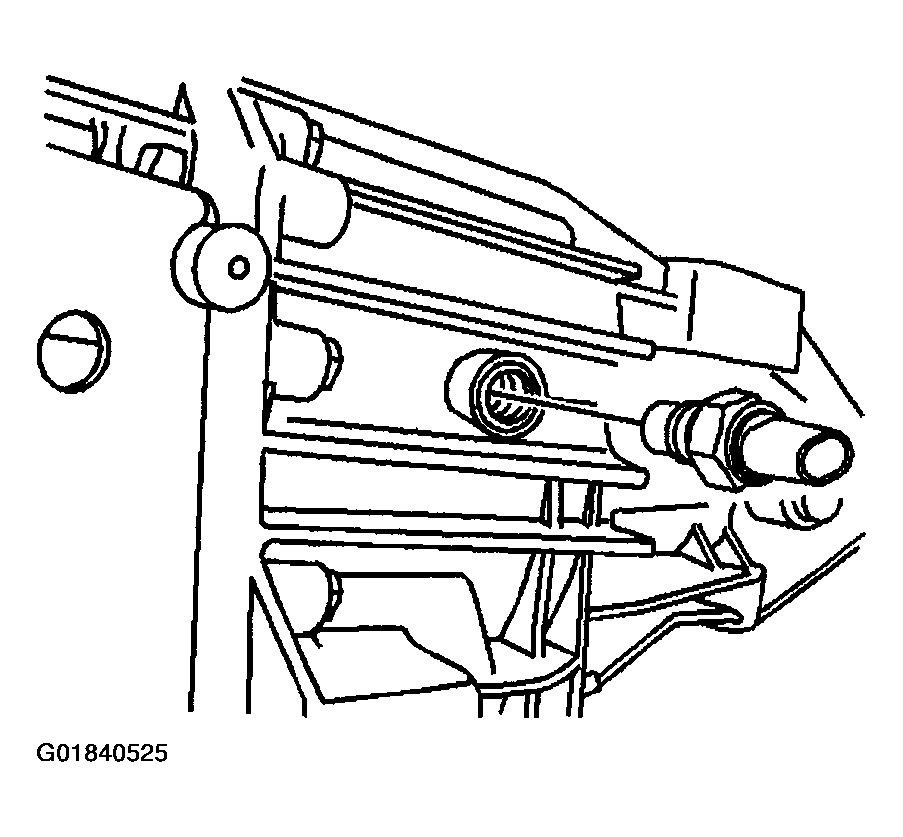

    Fig 1: Locating Backup Lamp Switch
    G01840525Courtesy of GENERAL MOTORS CORP.
