Section 3 (Manual Transmission - NV 3500)
>>
Diagnostic Information & Procedures
>>
DTC P0500: PCM Detects No Vehicle Speed
>>
Circuit Schematics
Circuit Schematics
WARNING:
This page is about a different variant/trim than selected.

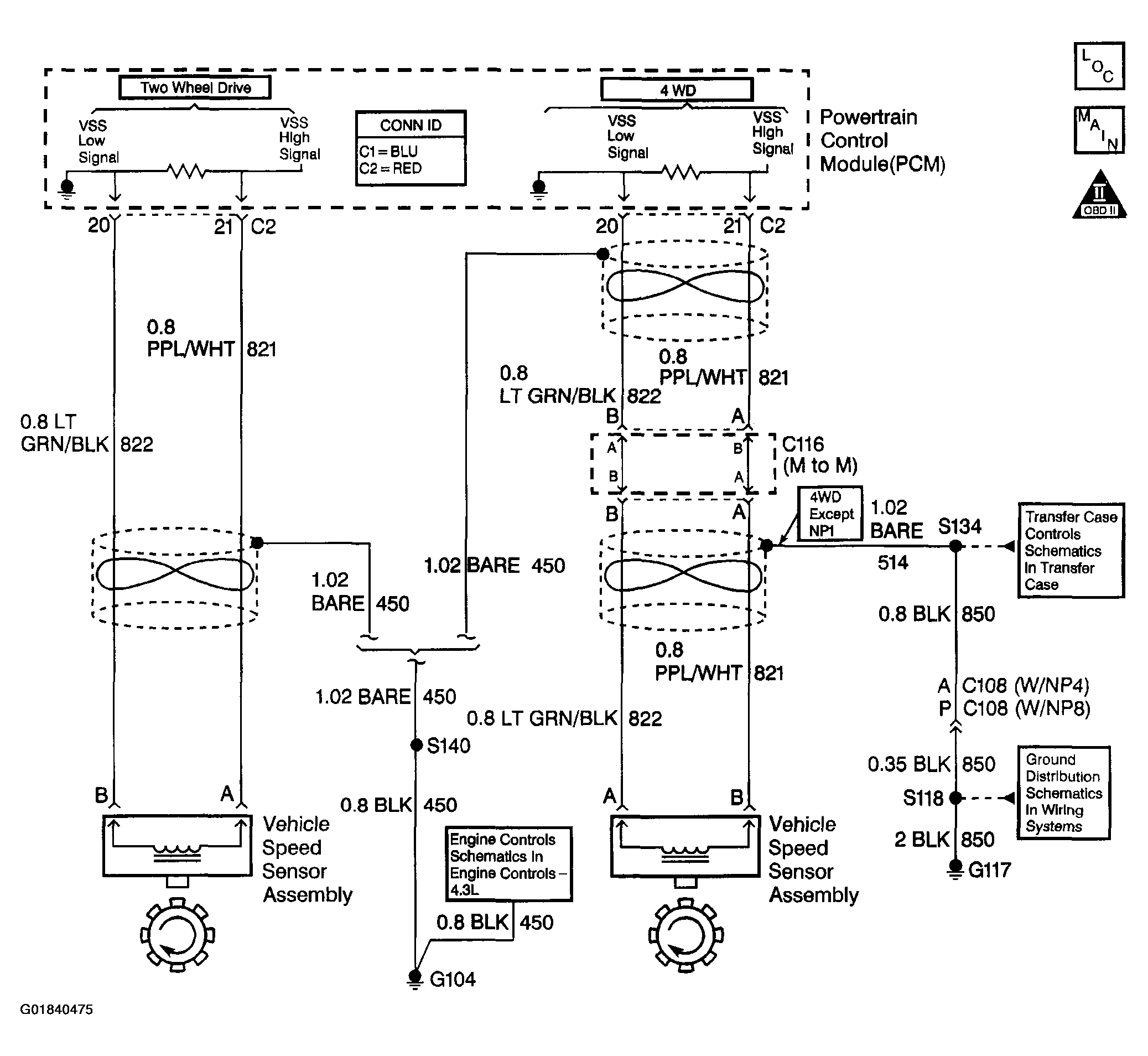

Fig 1: DTC 500 Circuit Schematic
Courtesy of GENERAL MOTORS CORP.
