Test Description

WARNING: This page is about a different variant/trim than selected.

The number below refers to the step number on the diagnostic table. See Fig 1.

  1. 7

    This step inspects for the transfer case causing the clunk. Shift the transfer case into another mode. If the transmission is causing the clunk, there will not be a change.

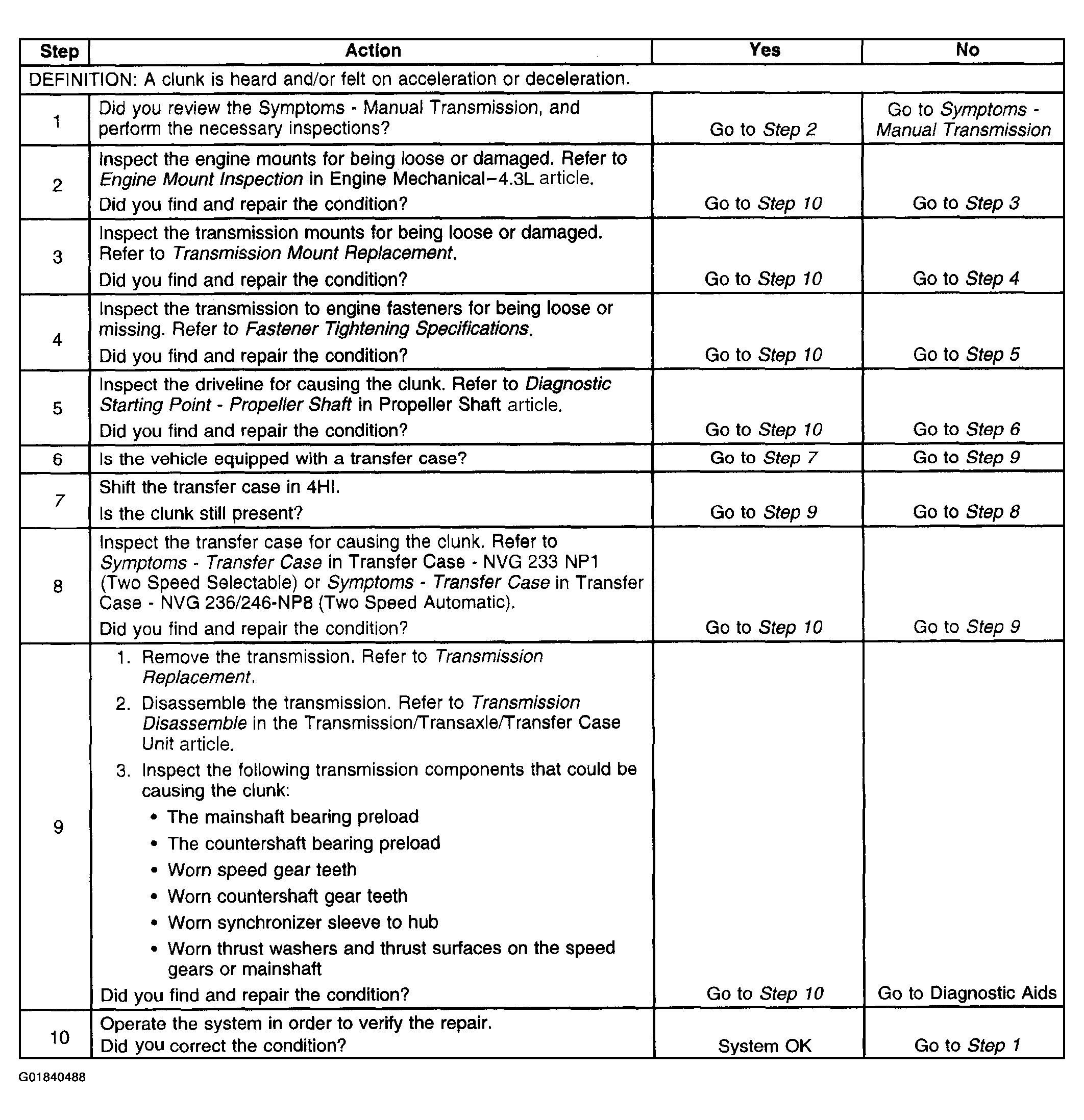

    2. Fig 1: Clunk on Acceleration or Deceleration Diagnostic Table (Steps 1-10)
    G01840488Courtesy of GENERAL MOTORS CORP.
