Section 3 (Manual Transmission - NV 3500)
>>
Component Locator
>>
Manual Transmission Connector End Views
Manual Transmission Connector End Views
WARNING:
This page is about a different variant/trim than selected.

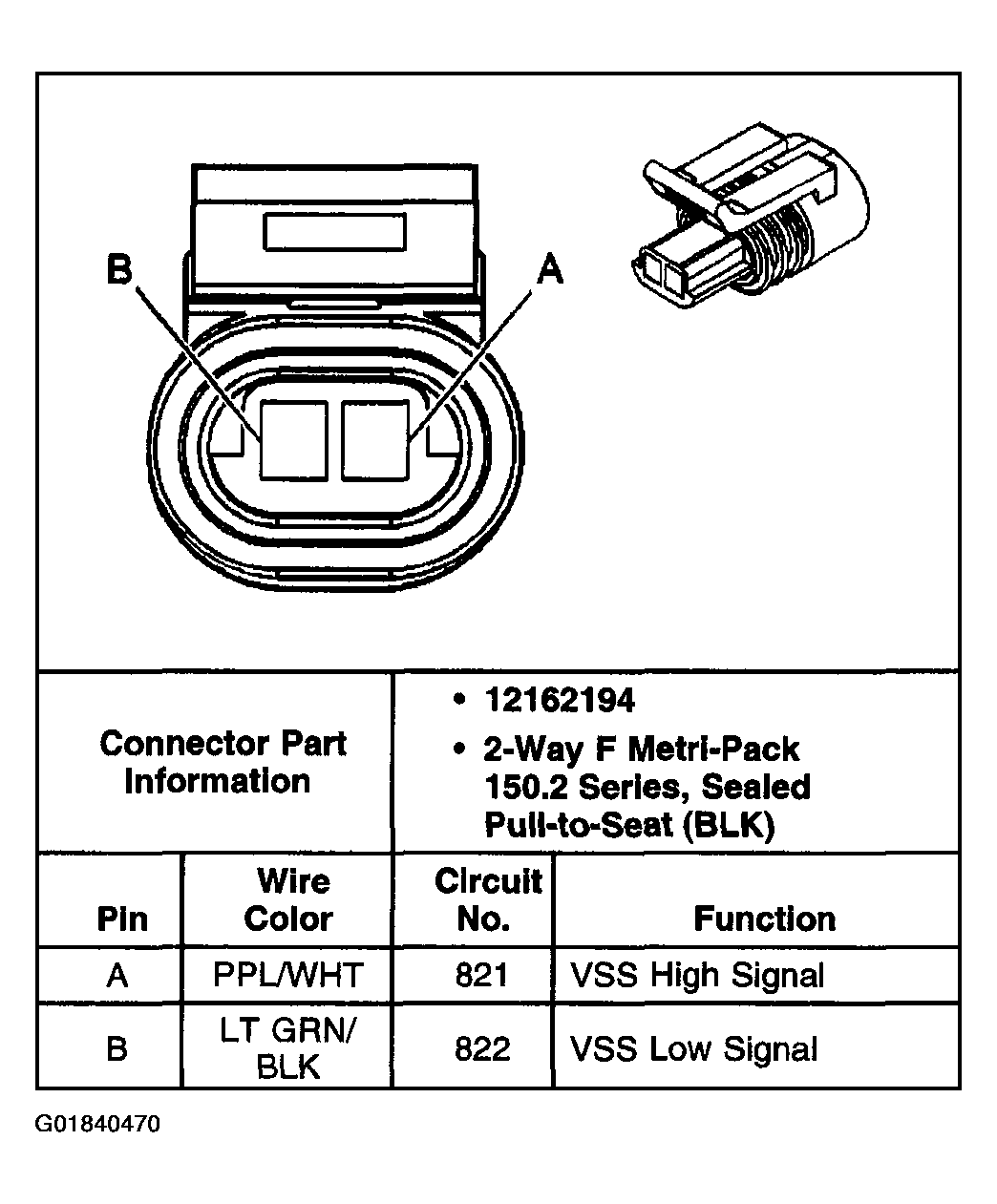

Fig 1: Vehicle Speed Sensor (VSS)
Courtesy of GENERAL MOTORS CORP.
