Rear Oil Seal: Installation

WARNING: This page is about a different variant/trim than selected.

Using the seal installer, install the new rear oil seal. See Fig 2. Install the rear propeller shaft. See appropriate DRIVE SHAFTS & UNIVERSAL JOINTS article in DRIVE AXLES. Fill transmission with appropriate fluid to proper level. See LUBRICATION .

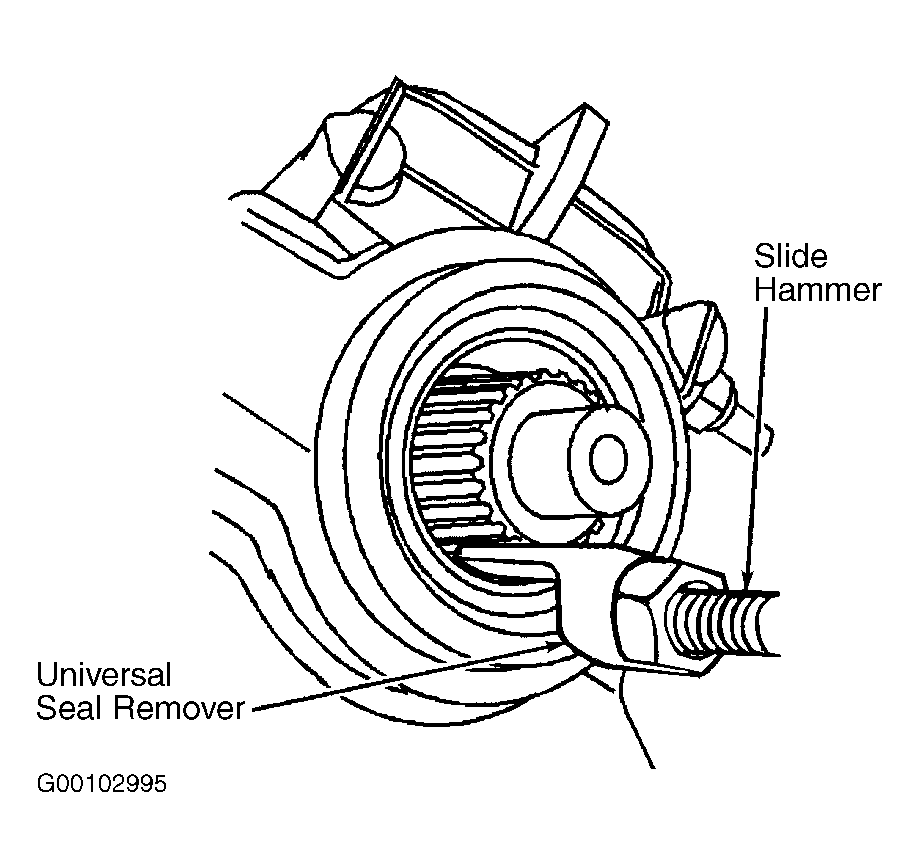

Fig 1: Removing Rear Housing Oil Seal

Courtesy of GENERAL MOTORS CORP.

Fig 2: Installing Rear Housing Oil Seal

Courtesy of GENERAL MOTORS CORP.
