Back-Up Light Switch: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: The back-up light switch has pre-applied thread sealant on the threads.

Install the back-up light switch. Tighten the back-up light switch to specification. See TORQUE SPECIFICATIONS . Connect the back-up light switch harness connector. Lower the vehicle.

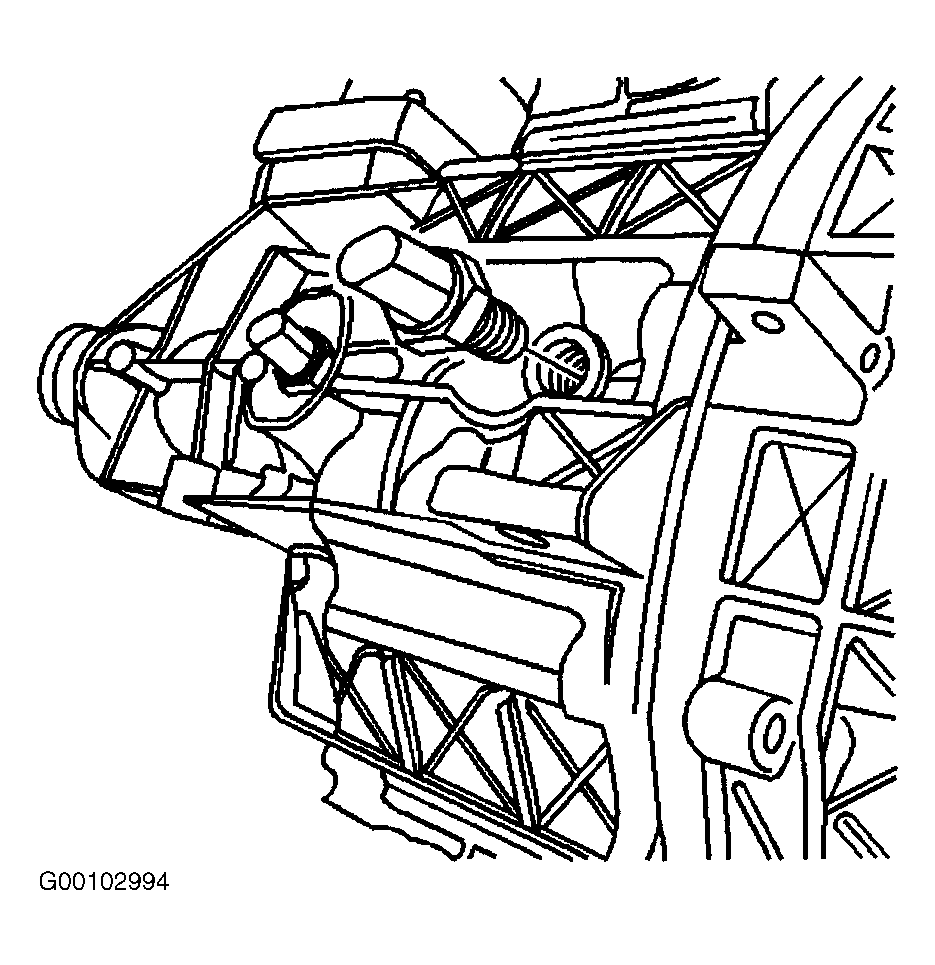

Fig 1: Removing & Installing Back-Up Light Switch (NV1500)

Courtesy of GENERAL MOTORS CORP.

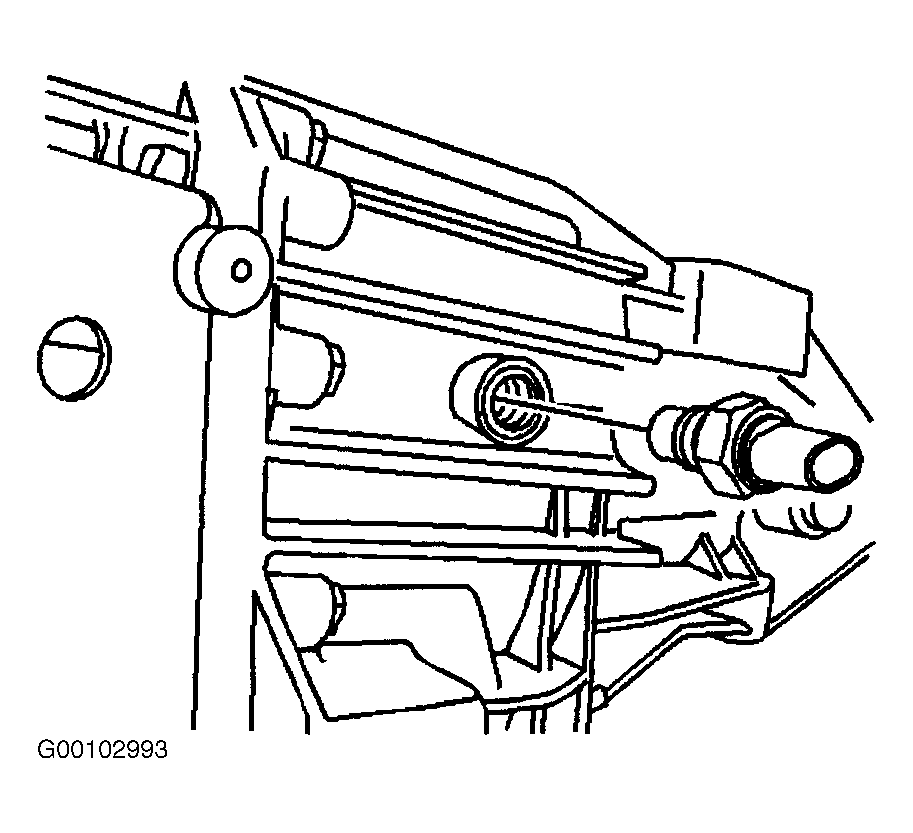

Fig 2: Removing & Installing Back-Up Light Switch (NV3500)

Courtesy of GENERAL MOTORS CORP.
