Clutch Assembly & Pilot Bearing: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Using suitable clutch pilot bearing installation tool, install NEW pilot bearing if removed. See Fig 1. Lubricate pilot bearing with machine oil. Install Clutch Aligner (J-33169) to support clutch disc. Install clutch disc and pressure plate to flywheel. Ensure reference marks are aligned.
  2. Install and tighten NEW spring washers and bolts evenly to avoid distortion. Remove clutch aligner. To complete installation, reverse removal procedure. Tighten bolts to specifications. See TORQUE SPECIFICATIONS . Fill reservoir with fluid, and bleed system. See BLEEDING .

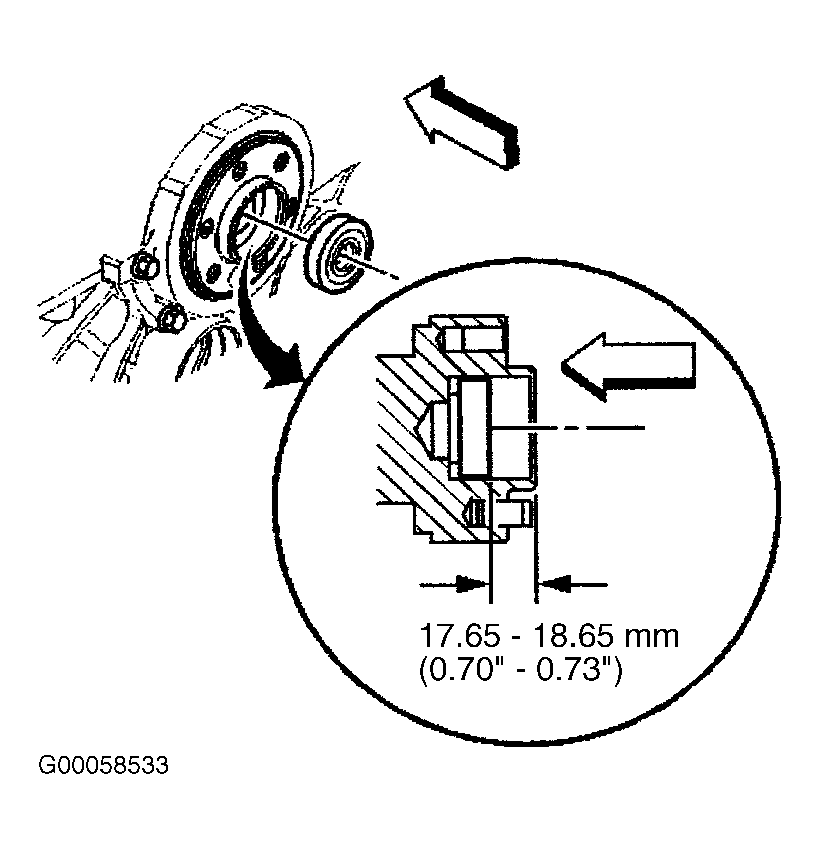

Fig 1: Installing Pilot Bearing
G00058533Courtesy of GENERAL MOTORS CORP.

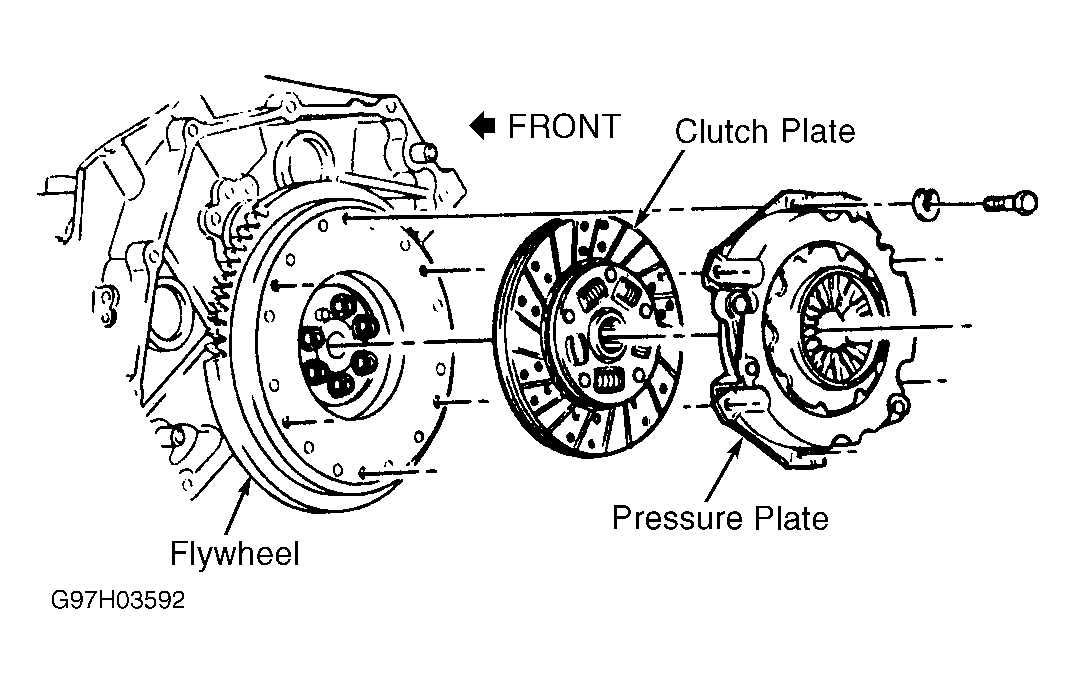

Fig 2: Exploded View Of Clutch Assembly
G97H03592Courtesy of GENERAL MOTORS CORP.
