Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Be sure the vehicle ignition is turned off.

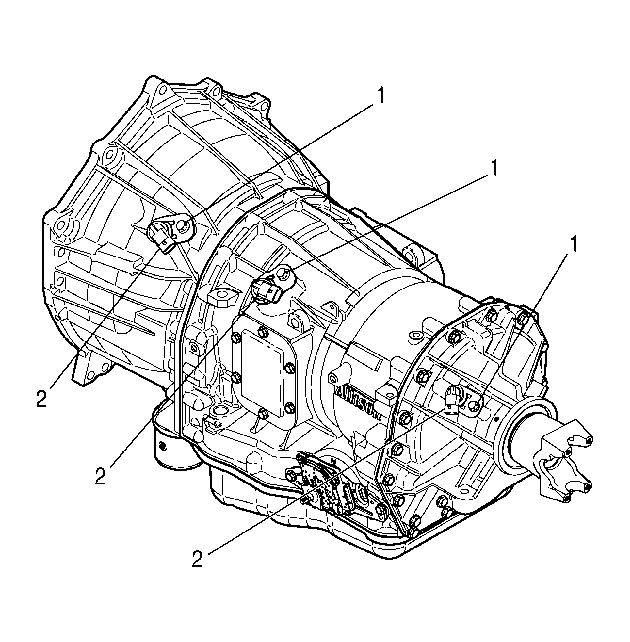

    Fig 1: Removing The Speed Sensor
    GM1371202Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  2. Disconnect the external wiring harness from the speed sensor.
  3. Remove the bolt (1) from the speed sensor and carefully remove the speed sensor (2).
